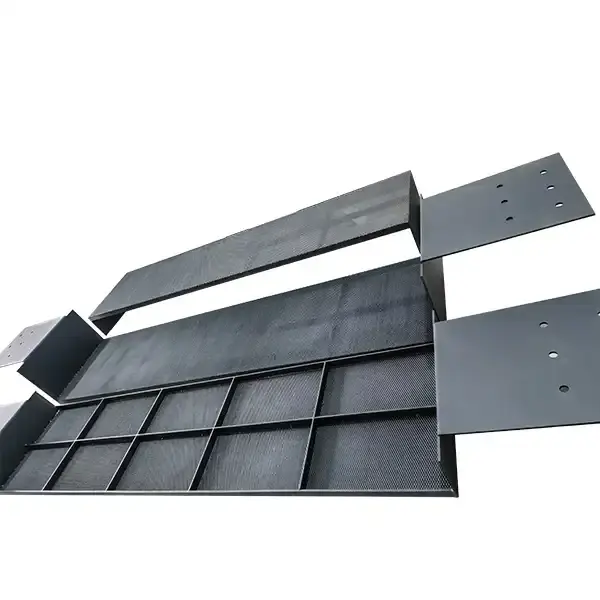

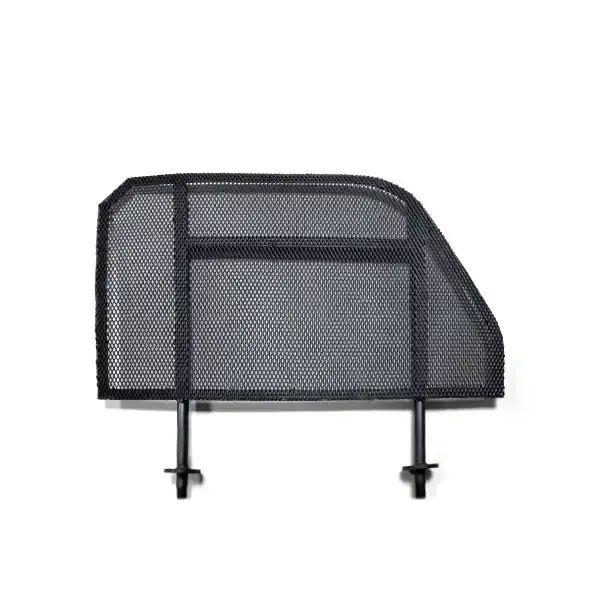

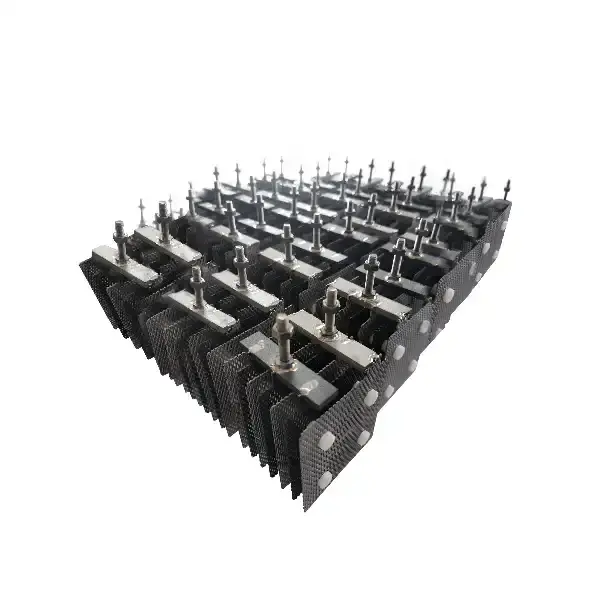

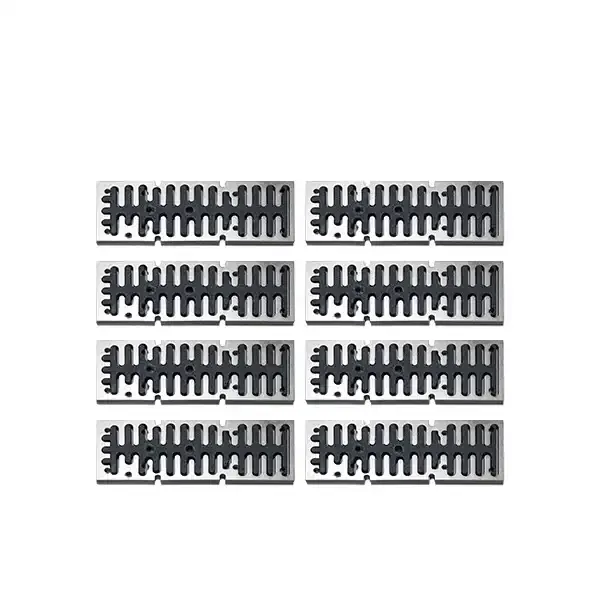

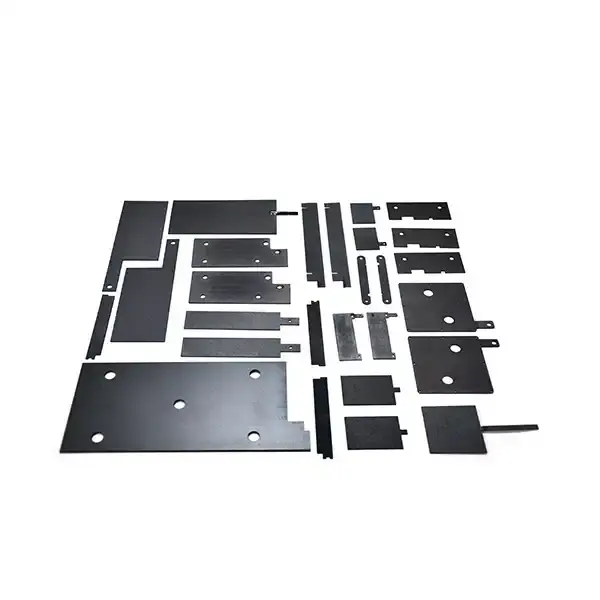

MMO Titanium Anode

MMO Titanium Anode Specification
Substrate: Titanium Grade 1 / Grade 2
Coating: Ru-Ir MMO, Ir-Ta MMO, Platinum Plated

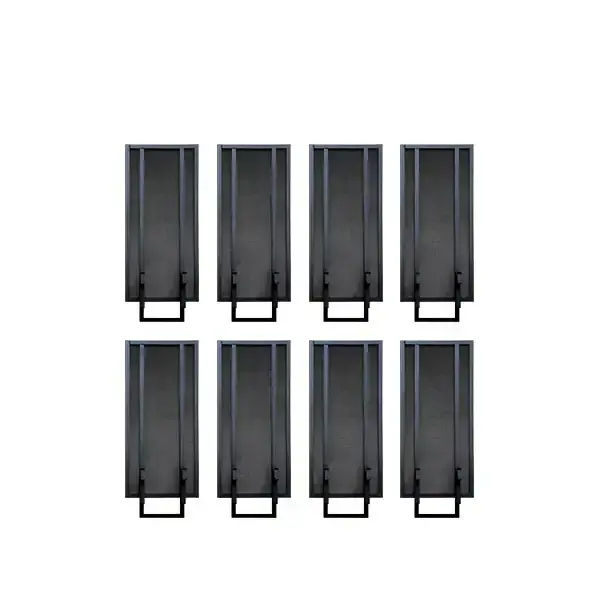

Structure: Mesh / Plate / Tube / Rod
Base Material Thickness: 0.5–10 mm
Dimension: Customized per drawing (L×W×T)
Working Current Density: ≤6,000 A/m², Peak ≤10,000 A/m²
Operating Voltage: 1.8–12 V
Applicable pH Range: 1–14
Max Working Temperature: ≤85°C
Service Life: 8,000–20,000 h (Subject to actual operating current & electrolyte)
Chlorine Current Efficiency: ≥95% (Available for Ru-Ir MMO coating only)

Send Inquiry

Download

Product Description

What Is an MMO Titanium Anode and How to Choose the Right One for Your Industry?

MMO Titanium Anode (Mixed Metal Oxide Titanium Anode) is a high-performance dimensionally stable insoluble electrode for industrial electrochemical applications. It adopts industrial pure titanium as the substrate, with a high-adhesion precious metal oxide coating (ruthenium, iridium, tantalum and composite oxides) plated on the surface.

Compared with traditional graphite, lead and high-silicon cast iron electrodes, MMO titanium anodes feature superior corrosion resistance, stable electrochemical performance, lower energy consumption and far longer service life. They effectively avoid electrode dissolution, sludge generation and frequent replacement problems of conventional consumable electrodes.

With excellent conductivity and electrocatalytic activity, our MMO coated titanium anodes maintain stable operation in extreme environments including strong acid, strong alkali, high chloride and high-salinity seawater. Widely applied in water treatment, electroplating, chlor-alkali production, electrolytic protection, seawater electrolysis, hydrogen production and metal recovery, they have become the mainstream preferred electrode for global energy-saving and environmentally friendly electrochemical industries.

Features of MMO Titanium Anode

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Ultra-Long and Reliable Service Life

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)

The following customizations can be made when purchasing titanium anode:

Size Customization: Thickness 0.5–10 mm, length/width/surface area fully customized based on current load requirements.
Material Customization: Gr1 offers ductility, Gr2 provides strong corrosion resistance, Gr7/Gr12 used for harsh corrosion environments.
Coating Customization: Ru-Ir for chlorine evolution, Ir-Ta for oxygen evolution, Pt coating for precision systems, composite coatings for special applications.

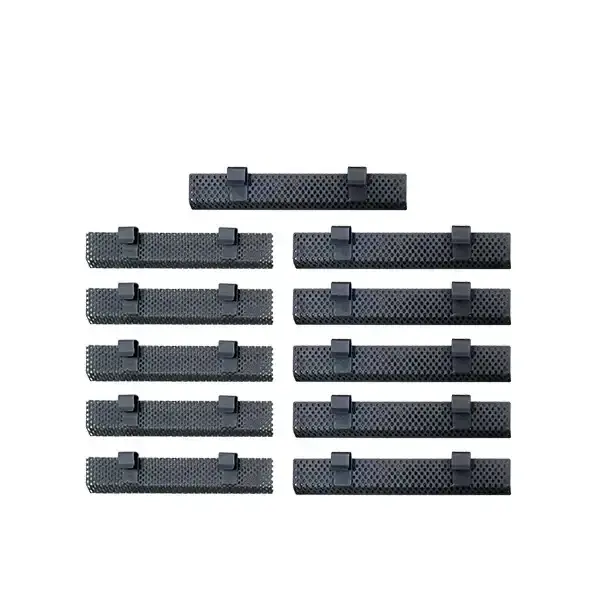

Shape Customization: Mesh, plate, tube, rod, wire, ribbon, and fully custom designs for different system structures.
Lifespan Customization: Options from 2–5 years, 5–10 years, to 10–20+ years depending on operating conditions.
Installation & Connection: Titanium or copper connectors, busbar systems, bolt fixing, and flange installation for stable operation.

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

Stable Coating Technology:Advanced coating processes ensure uniform catalytic layers with strong adhesion and long durability.

Strict Quality Control System, Each anode is tested for:

Coating thickness consistency
Adhesion strength
Electrochemical performance
Surface uniformity

OEM & Custom Engineering Support: We support drawings, samples, and full system design optimization.

Global Industrial Applications Experience: Our products are widely used in water treatment, electroplating, chemical processing, marine engineering, and energy industries.

Titanium Anode Purchase Guide: A Comprehensive Guide

Thanks to their outstanding corrosion resistance and excellent electrochemical stability, titanium anodes perform reliably even in highly aggressive environments. They are commonly applied in water and wastewater treatment systems, electroplating lines, cathodic protection projects, and a wide range of chemical processing operations. Their strong conductivity, long operational life, and high chemical durability make them a dependable choice for industrial use where consistent performance is critical.

If you are planning to integrate titanium anodes into your corrosion control or electrochemical systems, or you are looking for reliable supply and distribution opportunities in your market, Hengyi Titanium & Nickel Import and Export Firm, Baoji High-tech Development Zone (Hengyi Ti-Ni Import Export) provides a detailed buyer's guide. It is developed for both beginners and experienced professionals, offering clear insights into material properties, application scenarios, and selection considerations. With our technical support and industry experience, you can make informed decisions and choose solutions that best match your project requirements.

Purchase Guide

1. What is a titanium anode?
2. Main Technical Parameters of a titanium anode.
3. Specifications of a titanium anode.
4. Current Output of Standard Titanium Anode.
5. Applications of a titanium anode.
6. How to Purchase the Suitable Titanium Anode?
7. Industry Pain Points
8. FAQ
9. In Summary

Products Introduction

What is a titanium anode?

The titanium anode is an insoluble electrode made from titanium substrate coated with catalytic materials. It is used in electrochemical reactions where the anode must remain stable without dissolving into the electrolyte.

MMO titanium anodes improve efficiency by reducing energy loss and increasing reaction speed.

Main Technical Parameters of Titanium Anode

Parameter	Specification
Substrate Material	Titanium Gr1 / Gr2
Coating Type	Ru-Ir / Ir-Ta / Pt
Current Density	500 – 15,000 A/m²
Operating Temperature	≤ 85°C
PH Range	1 – 14
Coating Thickness	8 – 20 μm
Service Life	2 – 20+ years

Specifications of Titanium Anode

Type	Thickness	Size Range	Structure
Mesh Anode	0.5–3 mm	Custom	Expanded mesh
Plate Anode	0.5–10 mm	Custom	Flat plate
Tube Anode	Custom	Custom	Cylindrical
Rod Anode	Φ1–100 mm	Custom	Solid rod
Ribbon Anode	Custom	Custom	Flexible strip

Cerrent output of Standard Titanium Anode

The current output depends on coating type, electrolyte composition, temperature, and application environment.

Application	Recommended Current Density
Water Treatment	500–3000 A/m²
Electroplating	1000–8000 A/m²
Chlor-Alkali Industry	3000–12000 A/m²
Cathodic Protection	Low Current Mode
Hydrogen Production	Customized

Choosing the correct current output helps maximize anode lifespan and efficiency.

Applications of MMO Titanium Anode

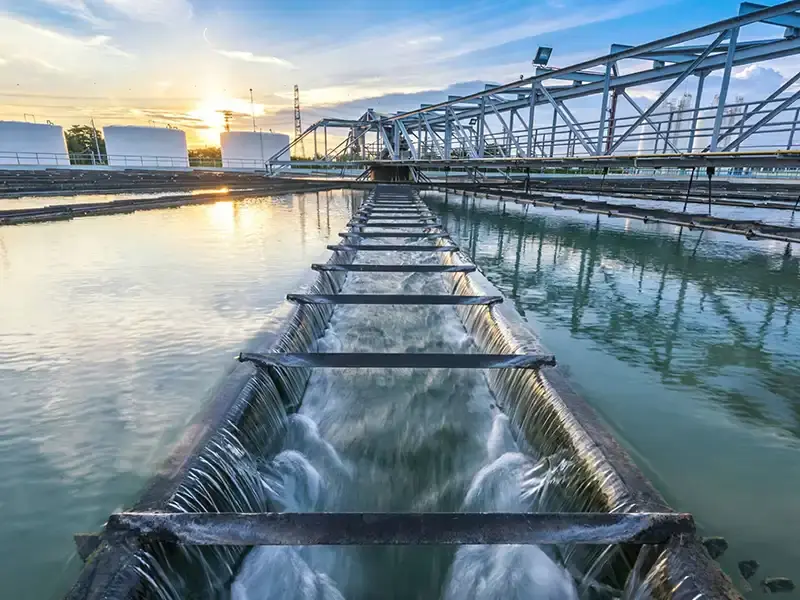

Water Treatment Industry

Water Treatment Industry: Used for efficient electrochemical disinfection, wastewater purification, and advanced oxidation processes in municipal and industrial water systems.

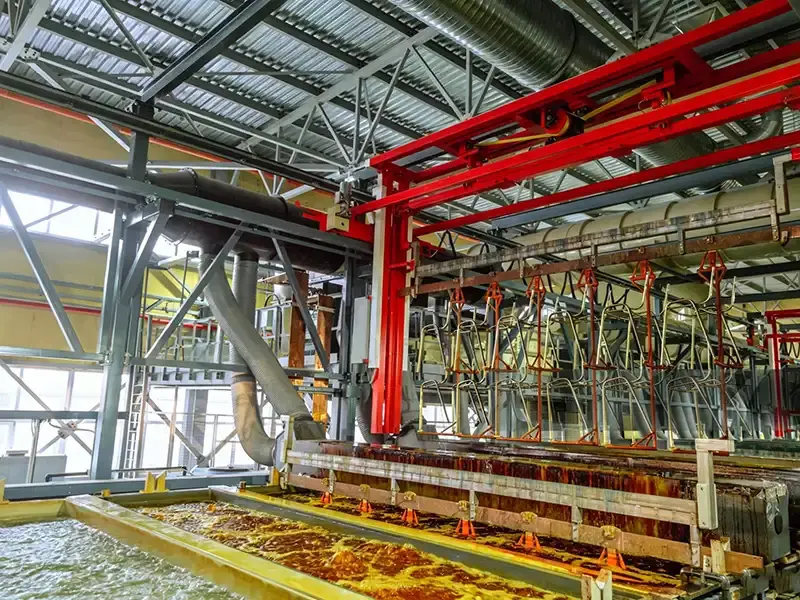

Electroplating Industry

Electroplating Industry: Provides stable current distribution and high efficiency for metal coating processes such as nickel, copper, gold, and zinc plating.

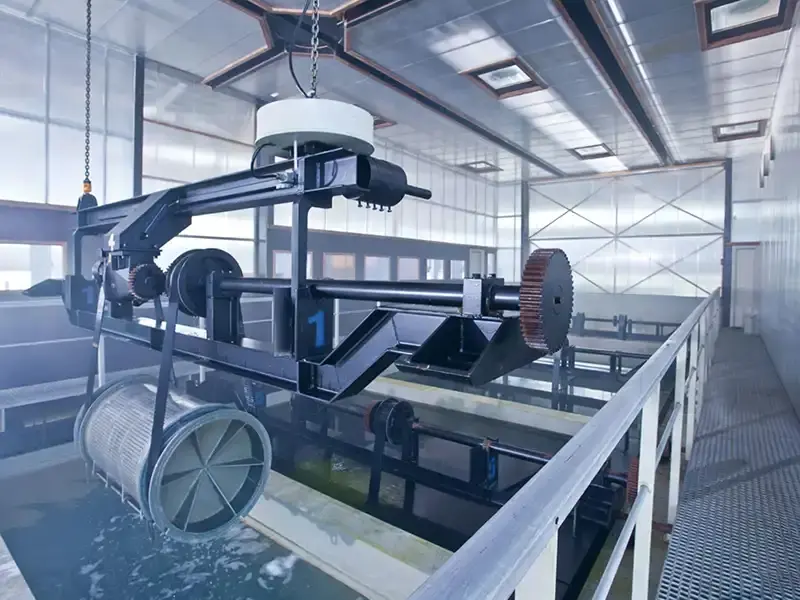

Chlor-Alkali Industry

Chlor-Alkali Industry: Enables high-efficiency chlorine and sodium hydroxide production with low energy consumption and long service life.

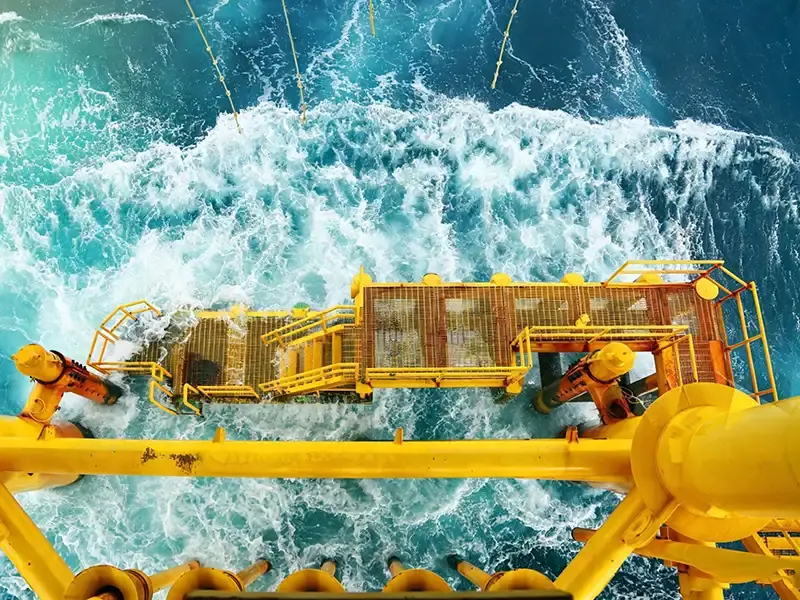

Marine Engineering

Marine Engineering: Applied in seawater environments for cathodic protection of ships, offshore platforms, and marine steel structures.

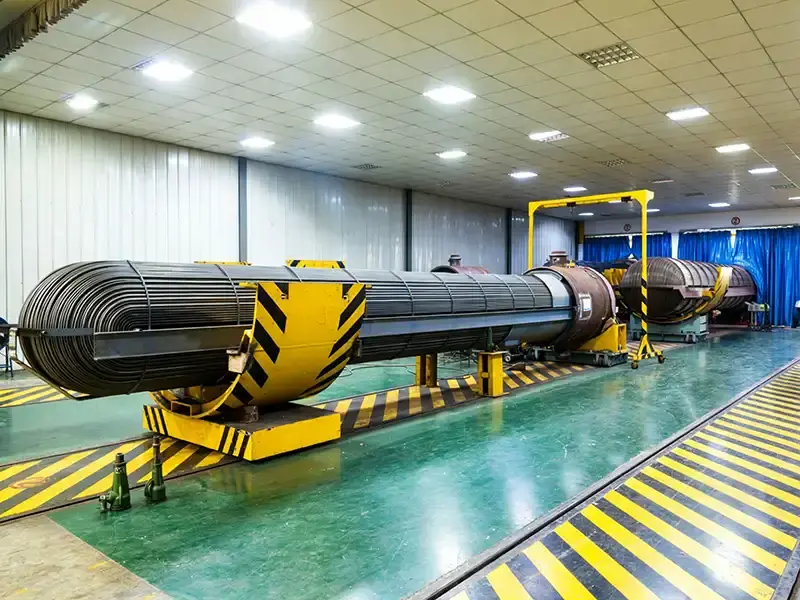

Hydrogen Energy Industry

Hydrogen Energy Industry: Used in water electrolysis systems to support stable and efficient hydrogen production with low overpotential.

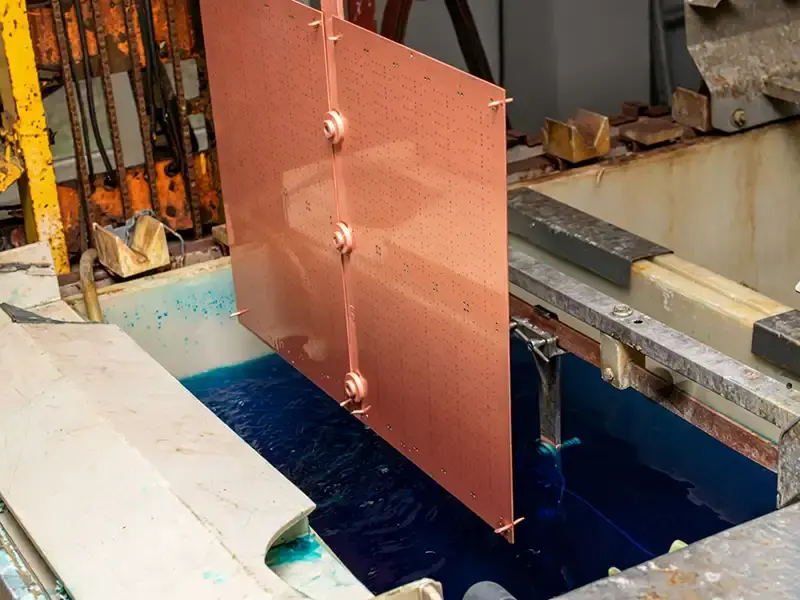

Mining and Metal Recovery

Mining and Metal Recovery: Utilized in electrowinning processes to recover valuable metals such as copper, gold, and nickel from ore or solution.

How to Purchase the Suitable Titanium Anode

To select the correct MMO titanium anode, consider the following factors:

Electrolyte composition (chloride, sulfate, acidic or alkaline)

Required current density

Operating temperature

Expected service life

Electrode shape and installation structure

System voltage and power supply design

Industry application type

Providing detailed working conditions helps ensure accurate technical matching.

FAQ

Q1: What is the lifespan of MMO titanium anodes?
A: Typically 2–20+ years depending on working conditions and coating type.

Q2: Can MMO titanium anodes replace graphite anodes?
A: Yes, they provide higher efficiency and longer service life.

Q3: Do you offer custom designs?
A: Yes, we support full OEM customization based on drawings or requirements.

Q4: Which coating is best for my application?
A: Ru-Ir is ideal for chlorine evolution; Ir-Ta is suitable for oxygen evolution systems.

Q5: Are these anodes suitable for seawater systems?
A: Yes, MMO titanium anodes perform very well in seawater and chloride-rich environments.

Our Factory

MMO Titanium Anode | High Efficiency | Long Service Life | Eco-Friendly

Production site

State-of-the-art manufacturing for MMO coated titanium anodes, precision coating and quality control.

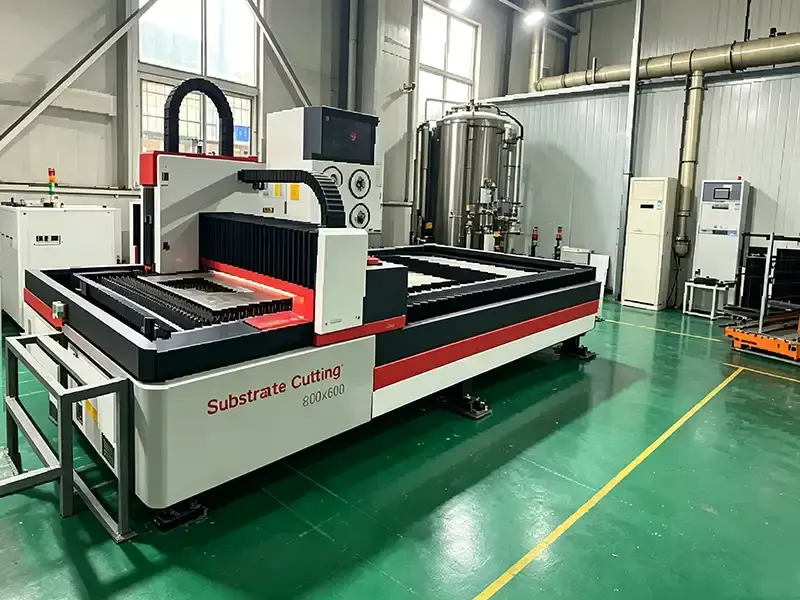

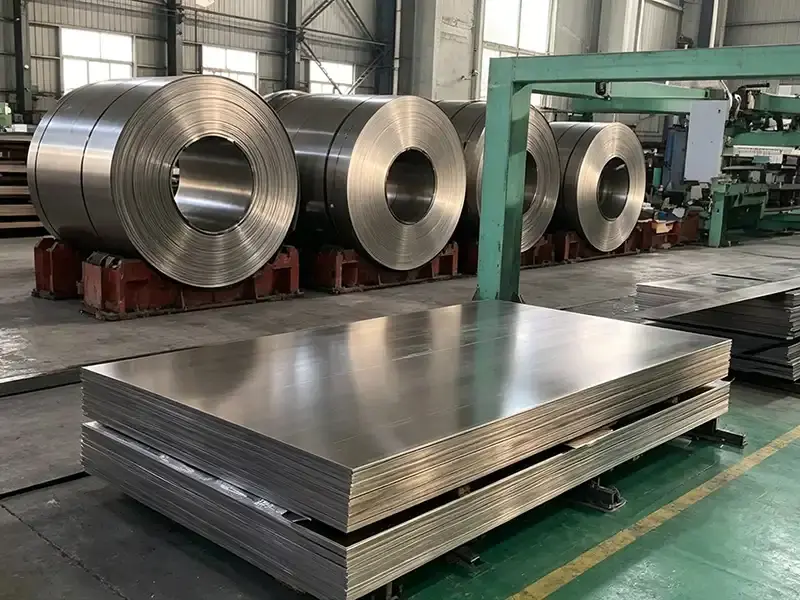

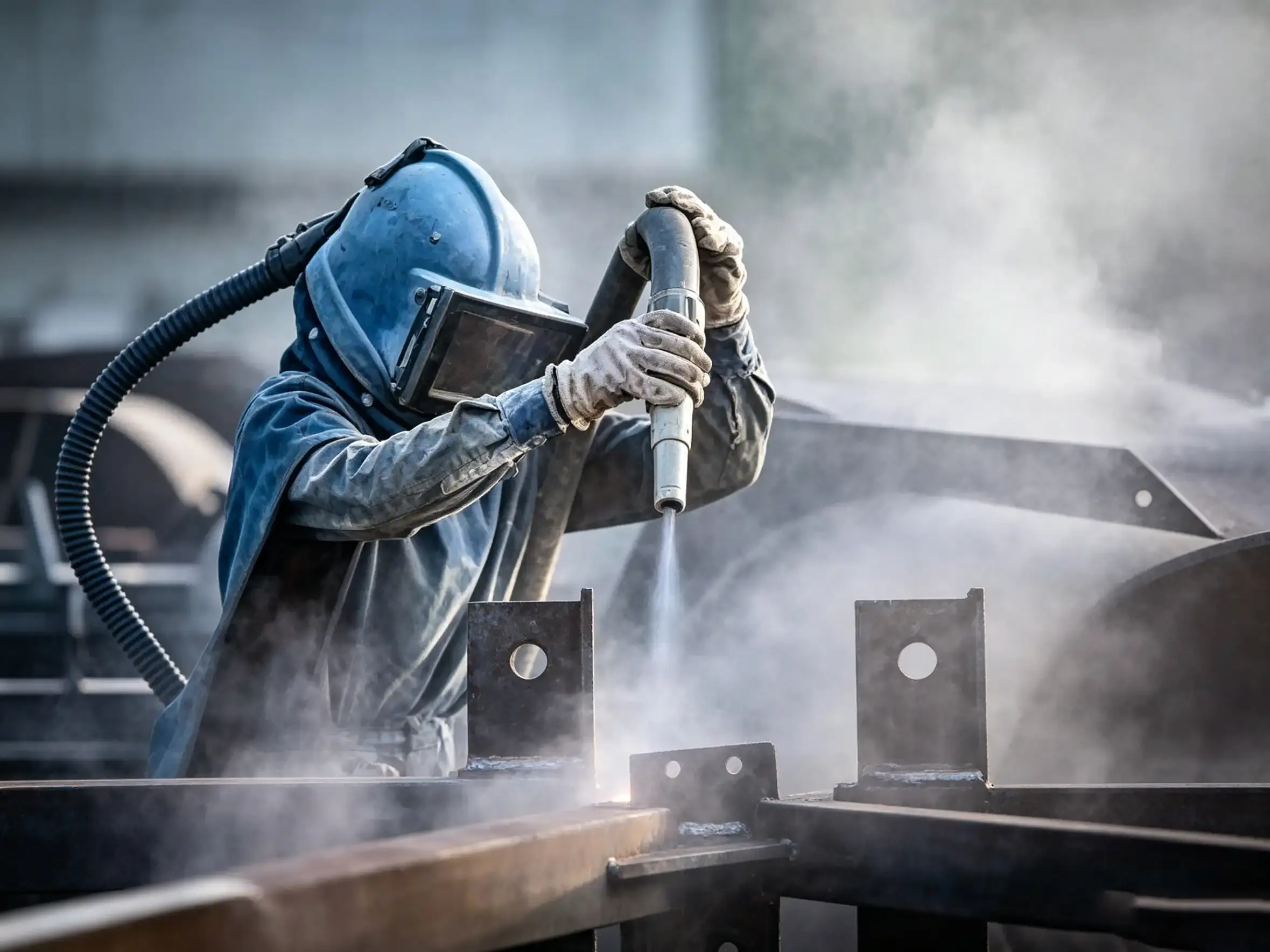

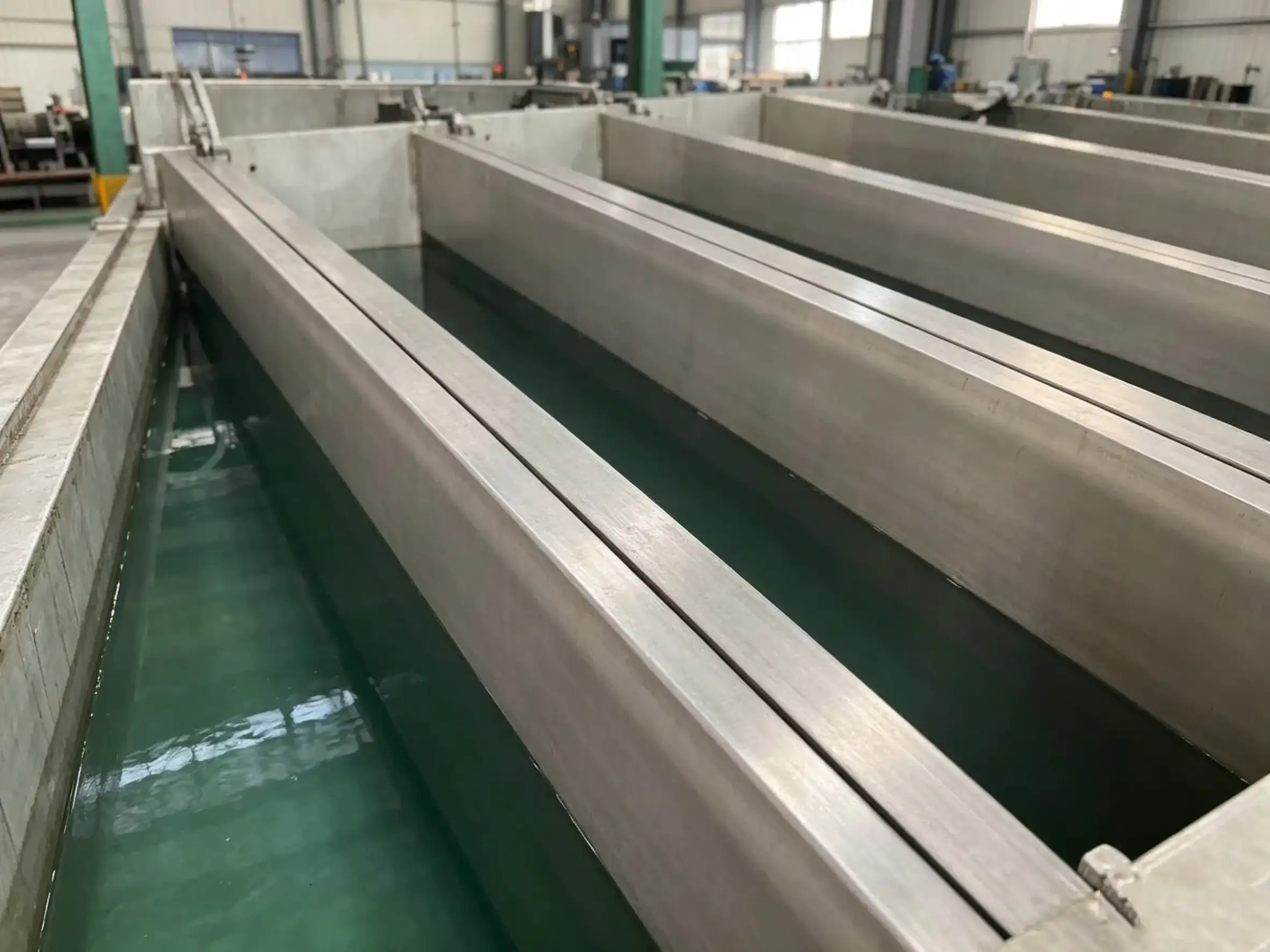

Choseing titanium substrate	Substrate Cutting	Sandblasting	Pickling

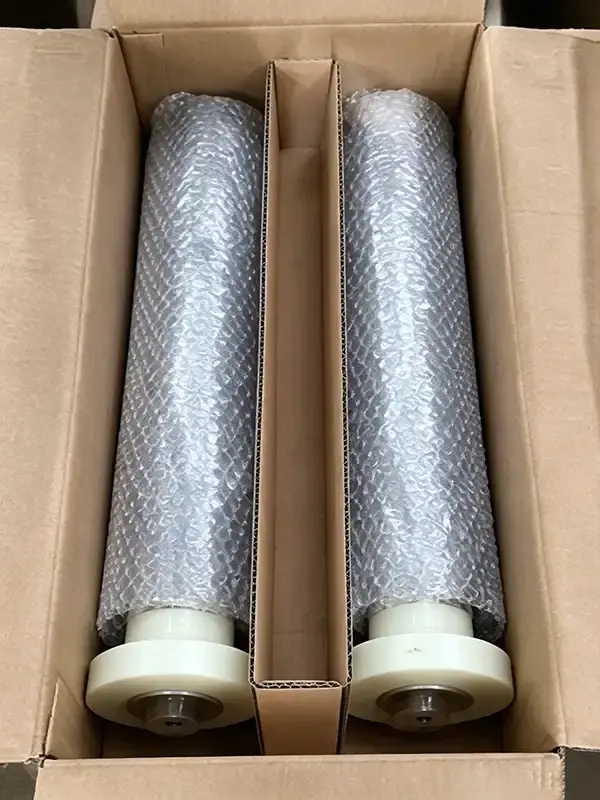

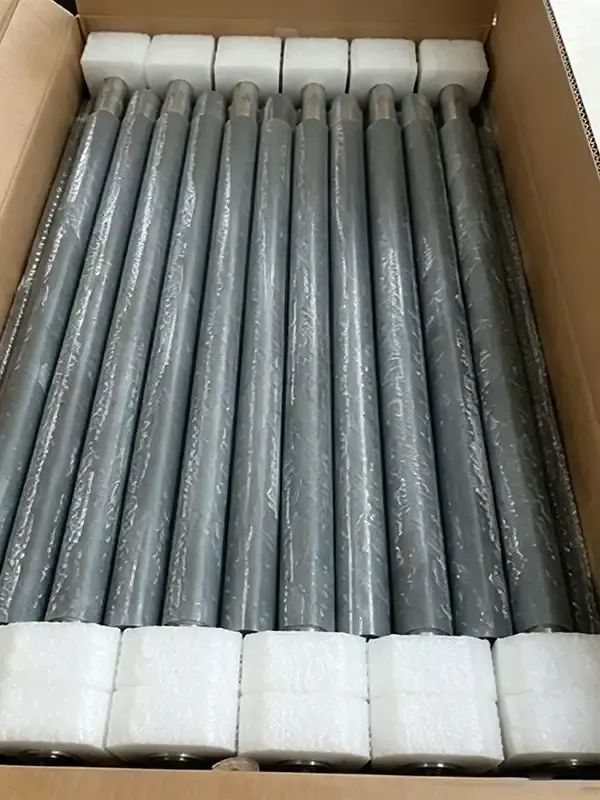

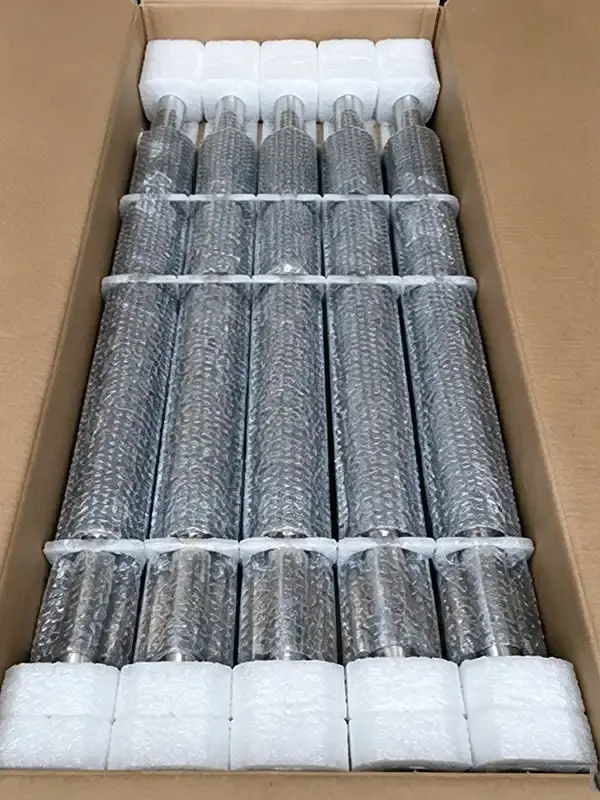

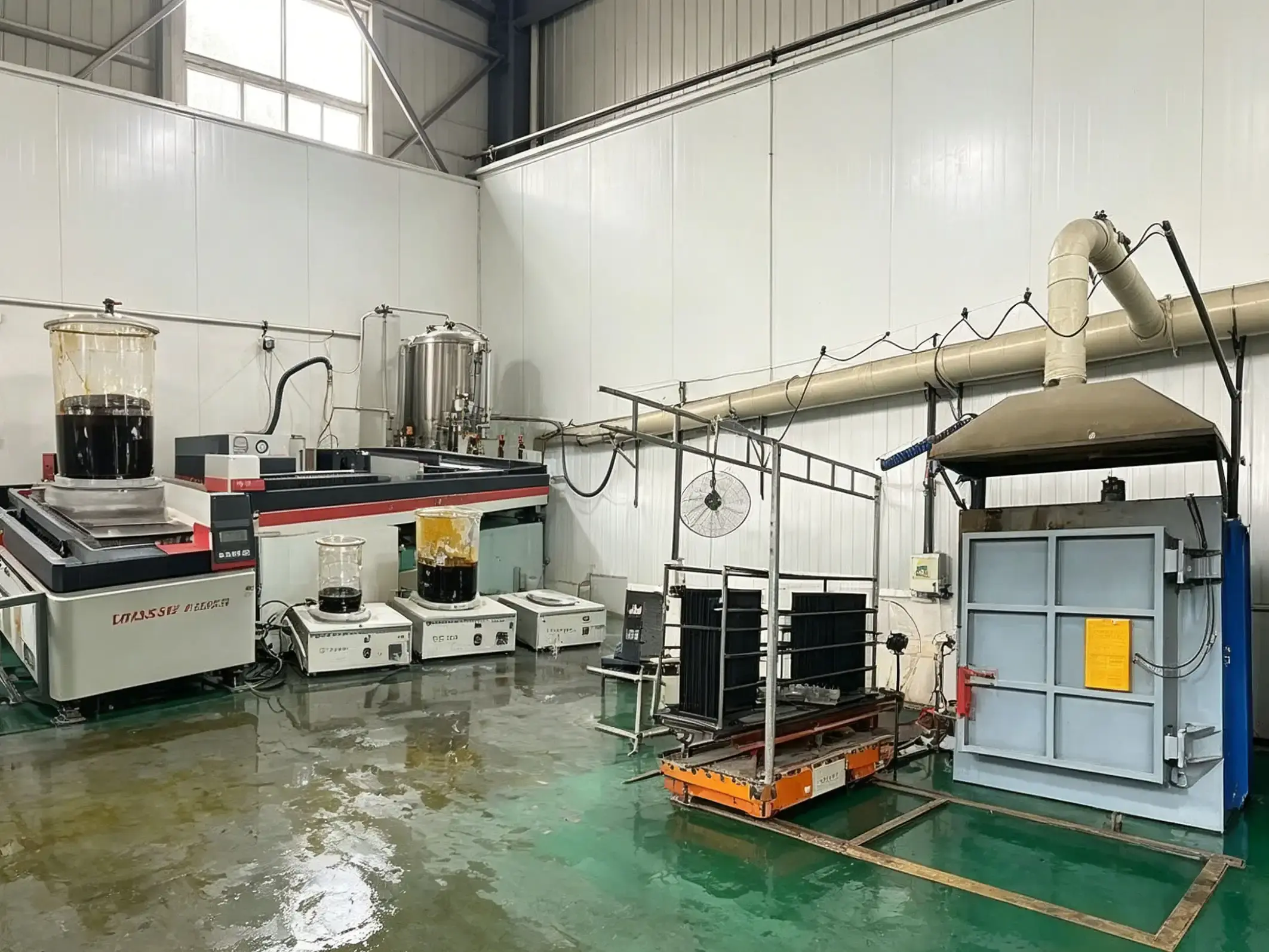

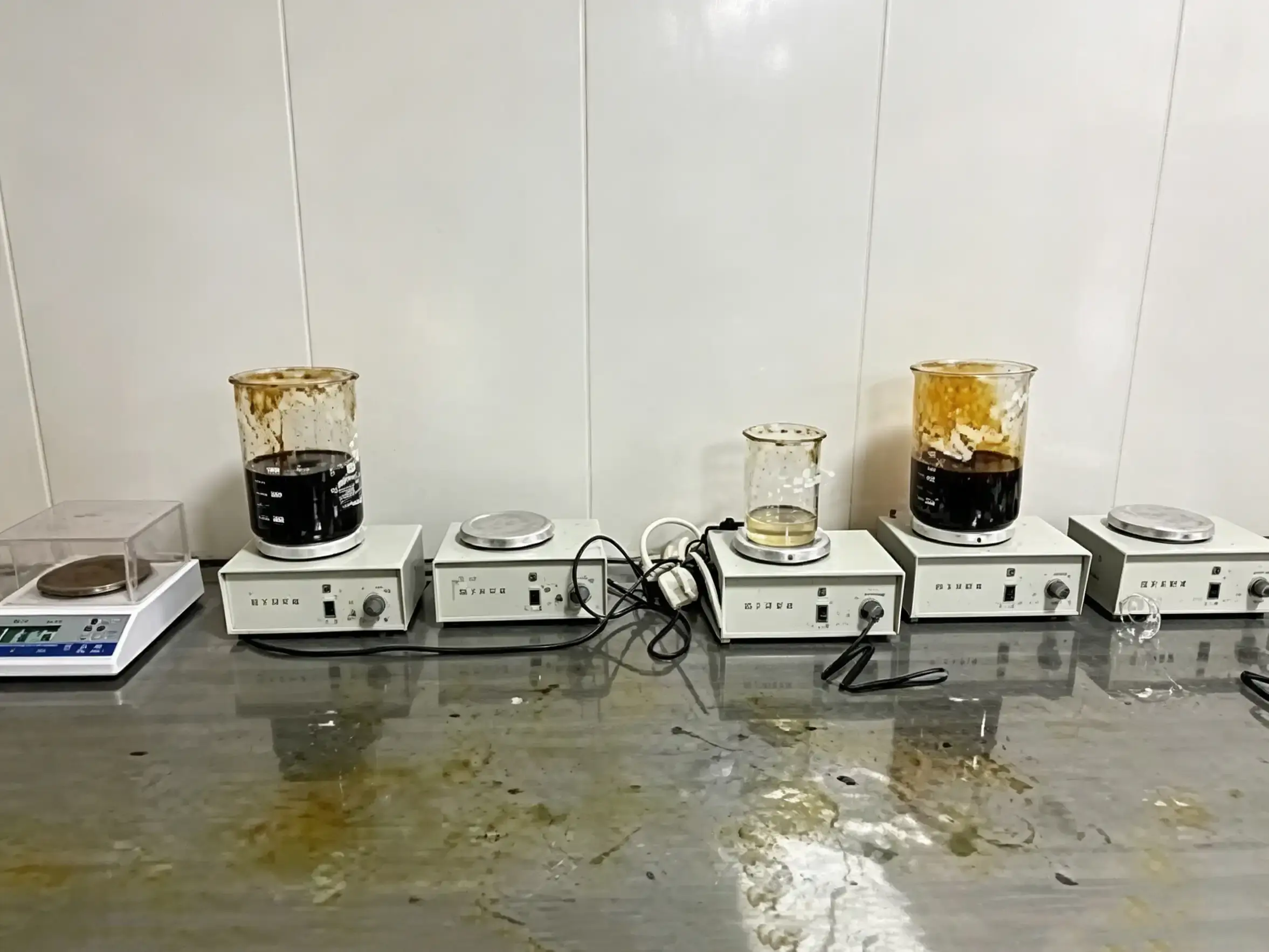

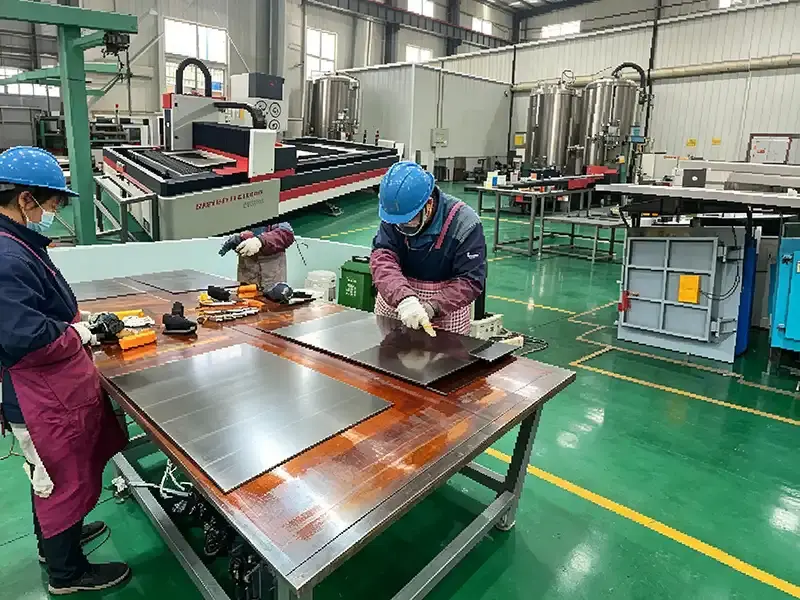

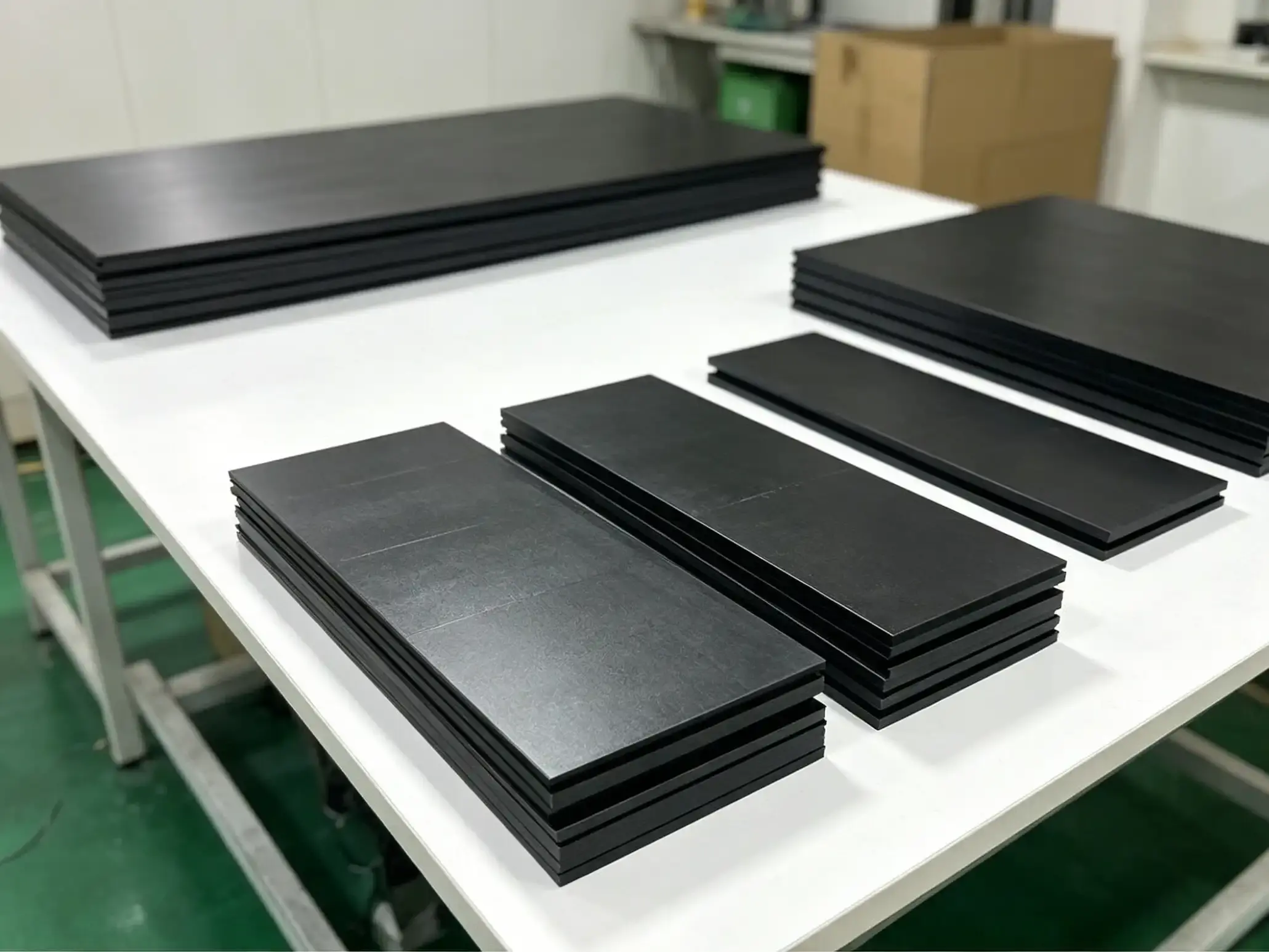

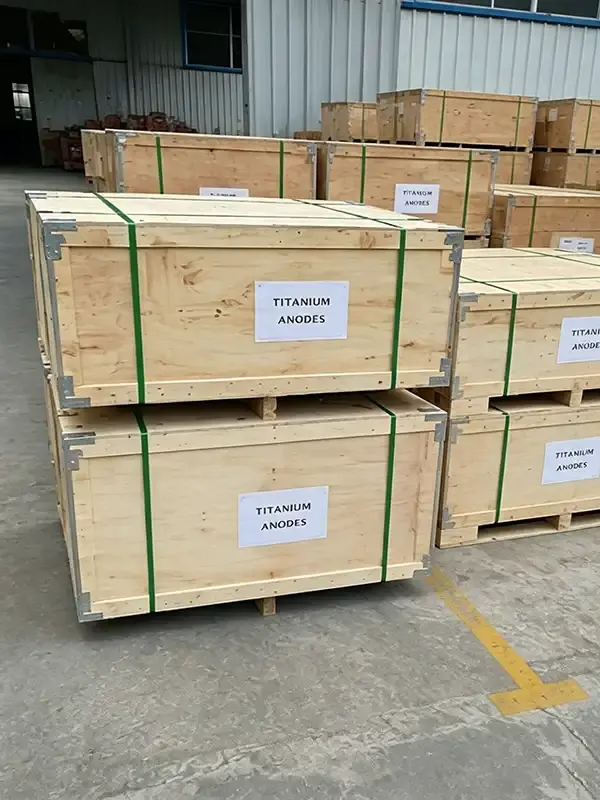

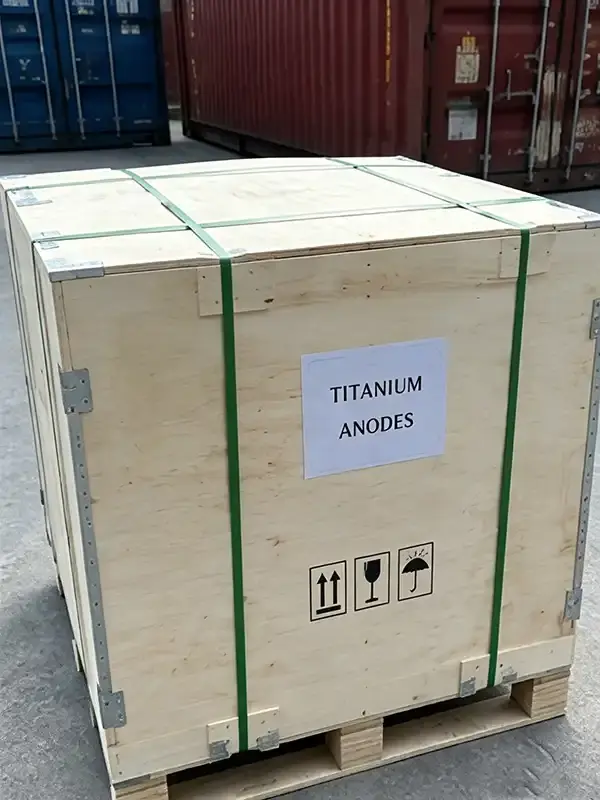

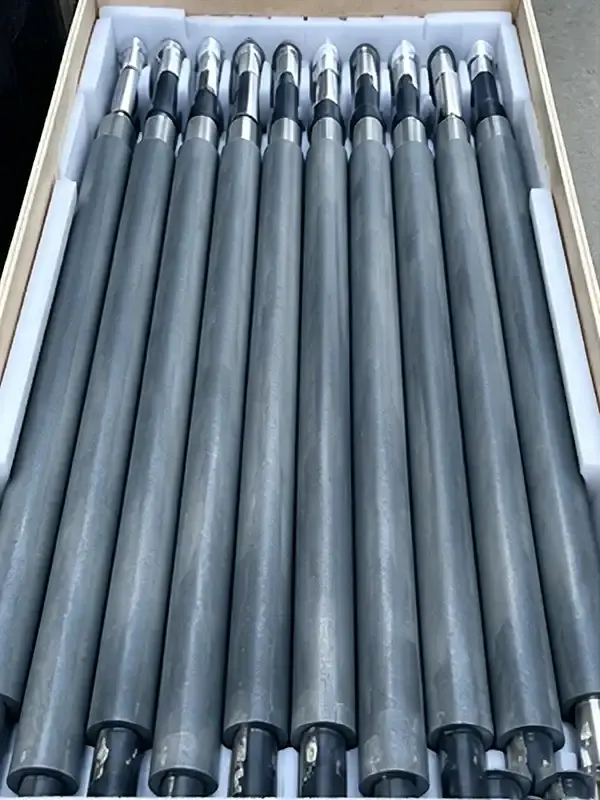

Laser CuttingConfigure Precious Metal	Coating	Sintering	Packaging

Workshop

Precision machining and coating workshop for MMO titanium anodes.

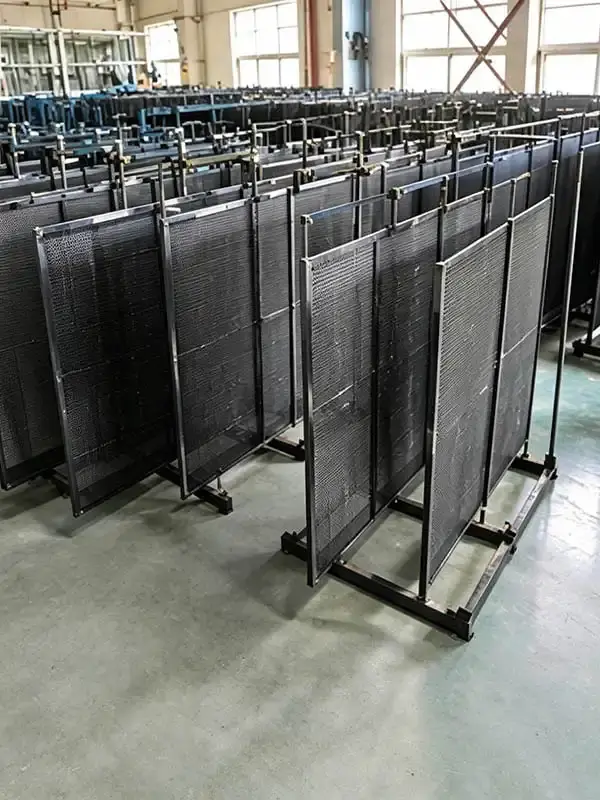

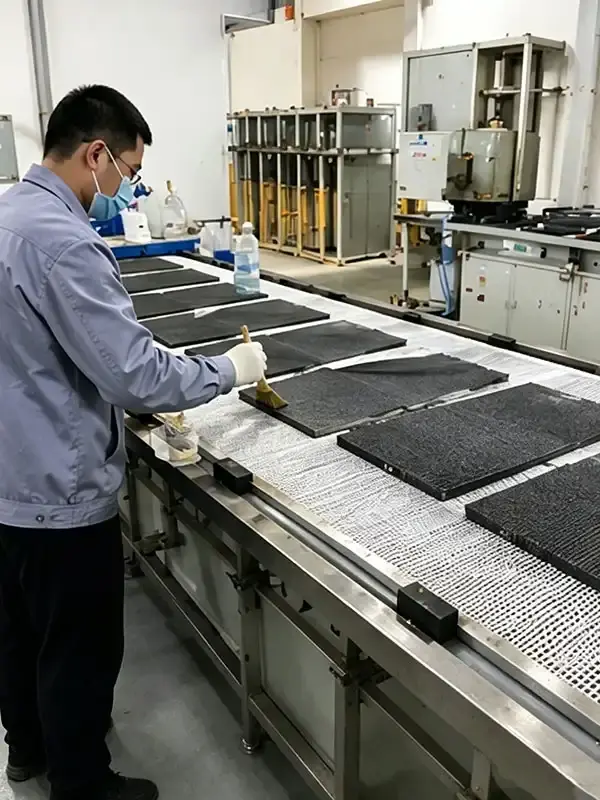

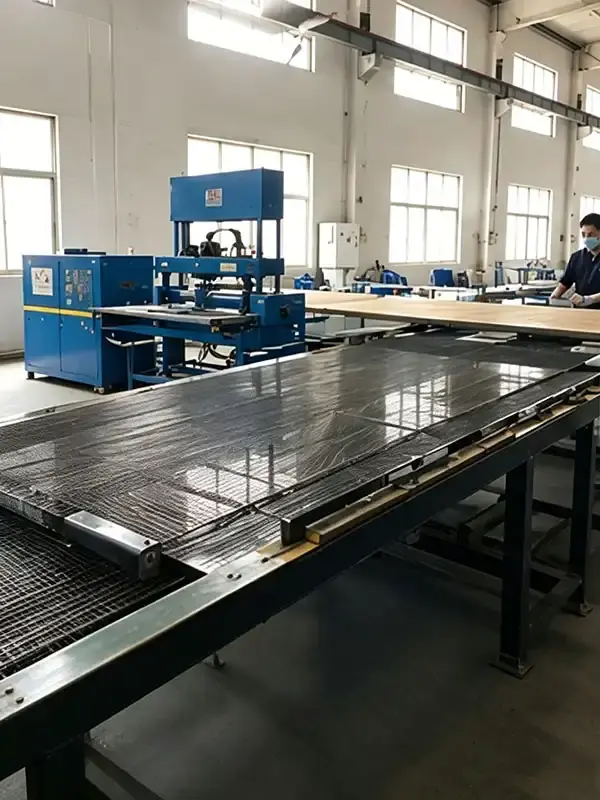

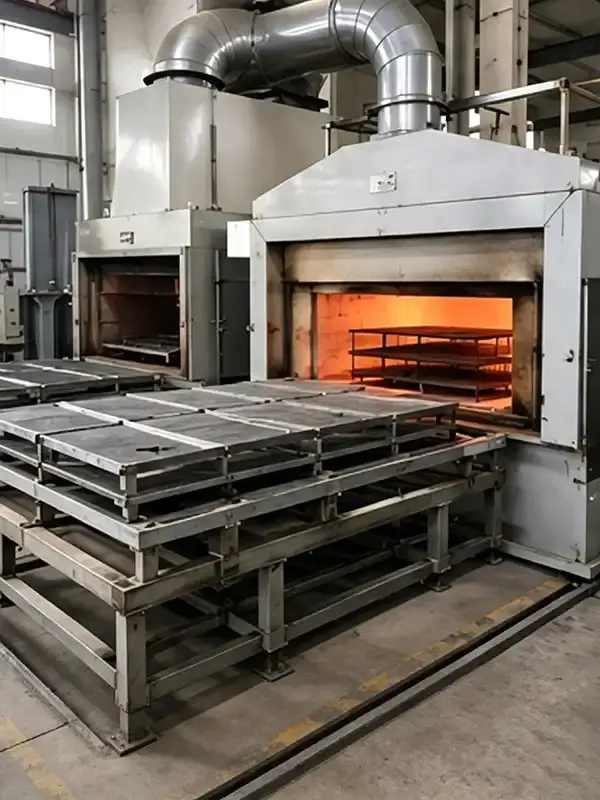

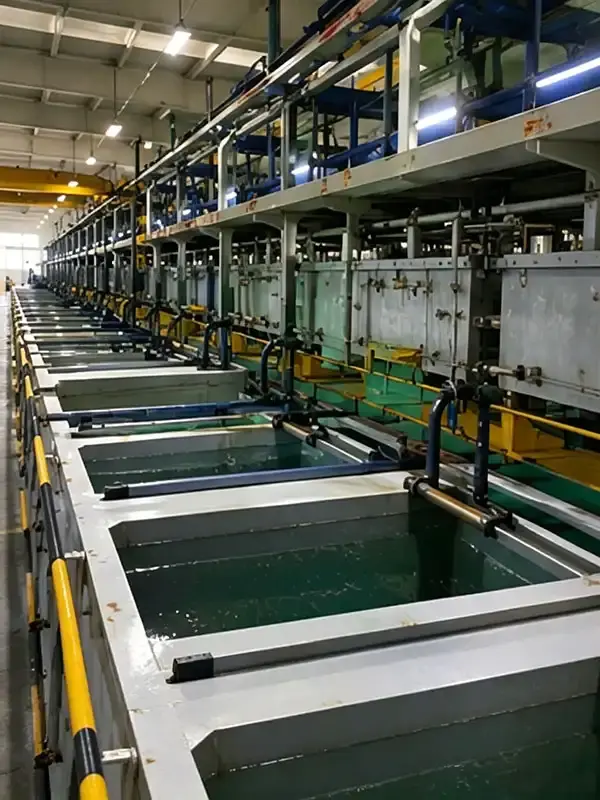

Titanium anode coating workshop	Thermal decomposition sintering furnace workshop	Titanium mesh anode production area	Pickling/surface treatment process

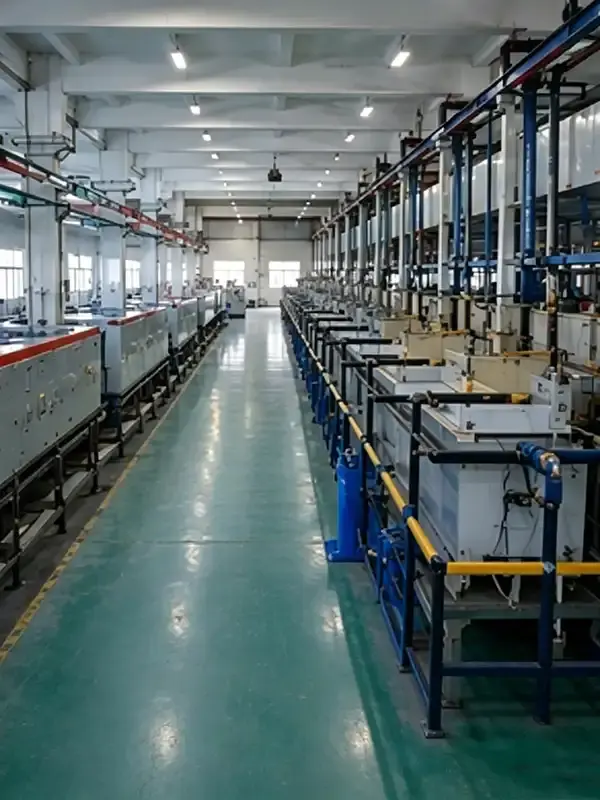

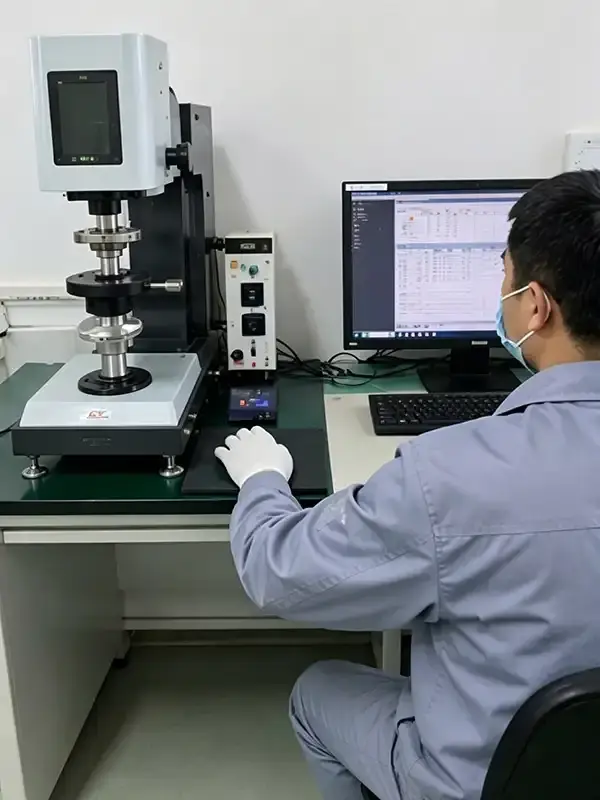

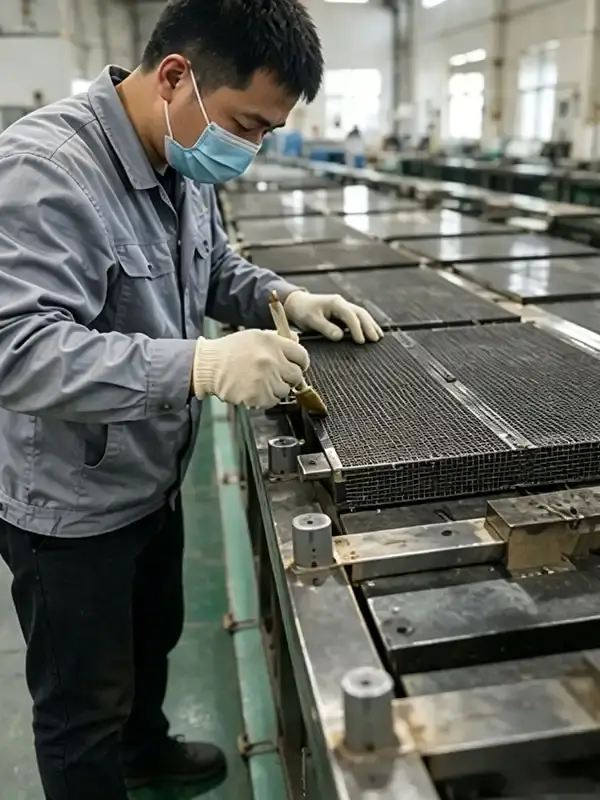

Pickling/surface treatment process	Quality inspection workshop	Worker operation photos	Panoramic view of a clean production line

Quality inspection

Rigorous testing for coating adhesion, electrochemical performance, and durability.

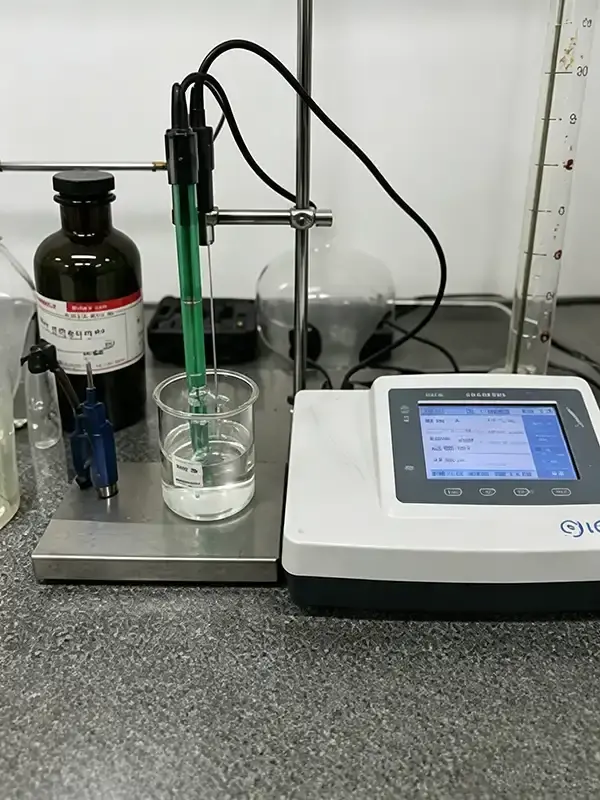

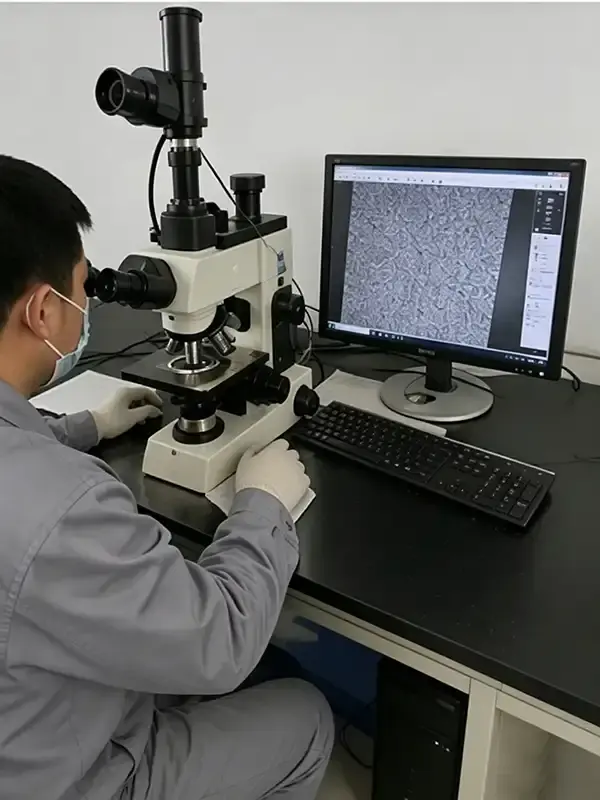

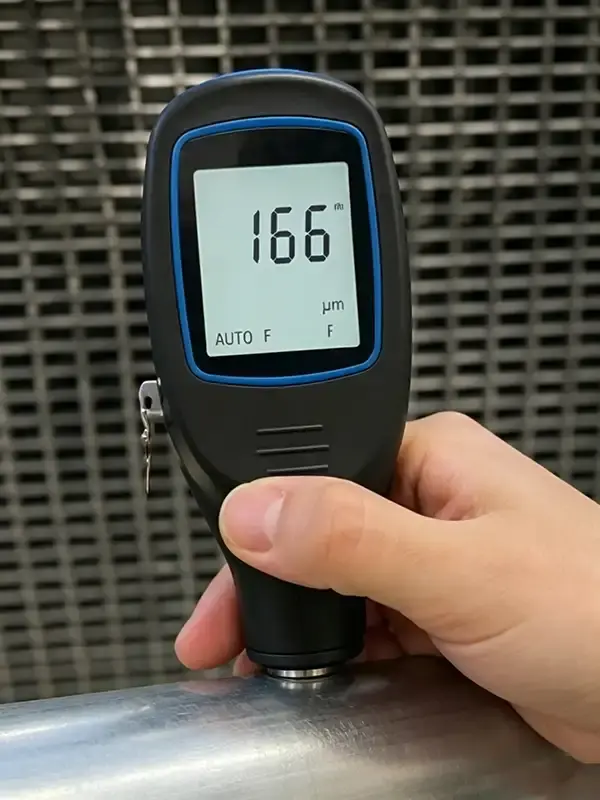

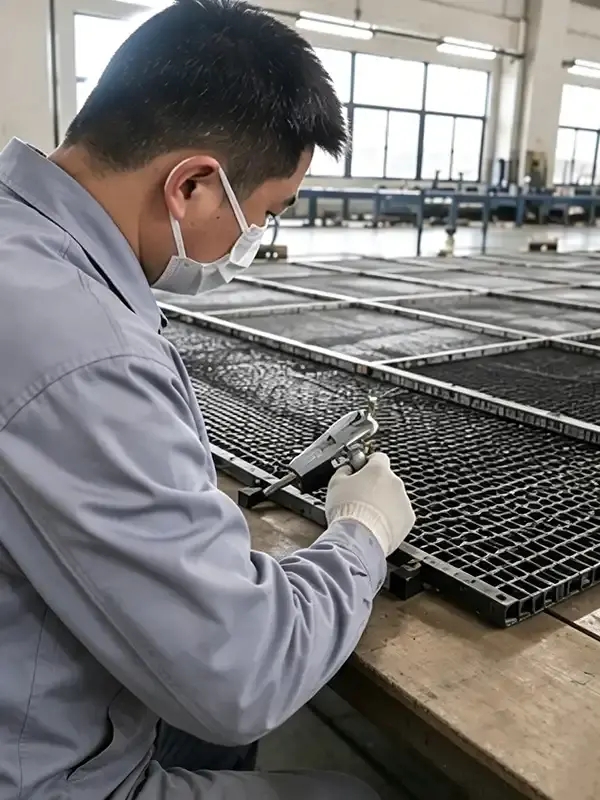

Dimension Inspection	Coating Thickness Testing	Coating Adhesion Testing	Microstructure Analysis

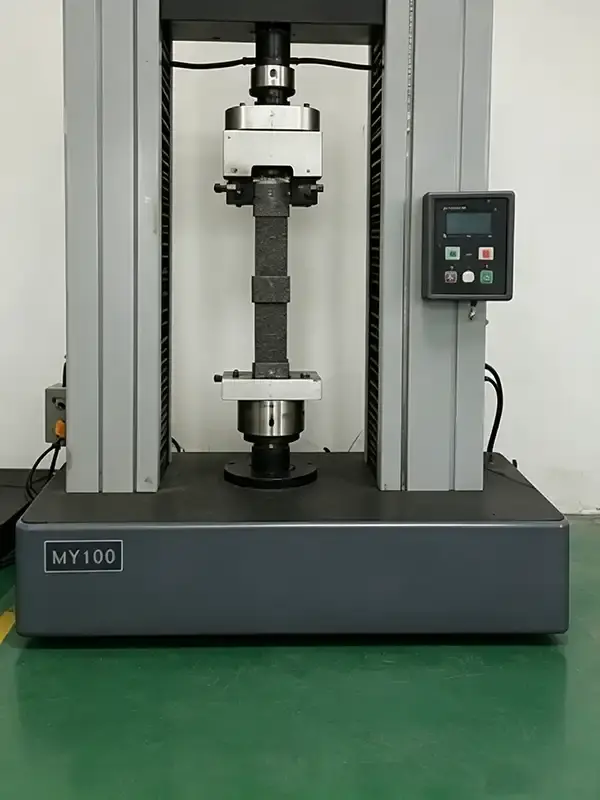

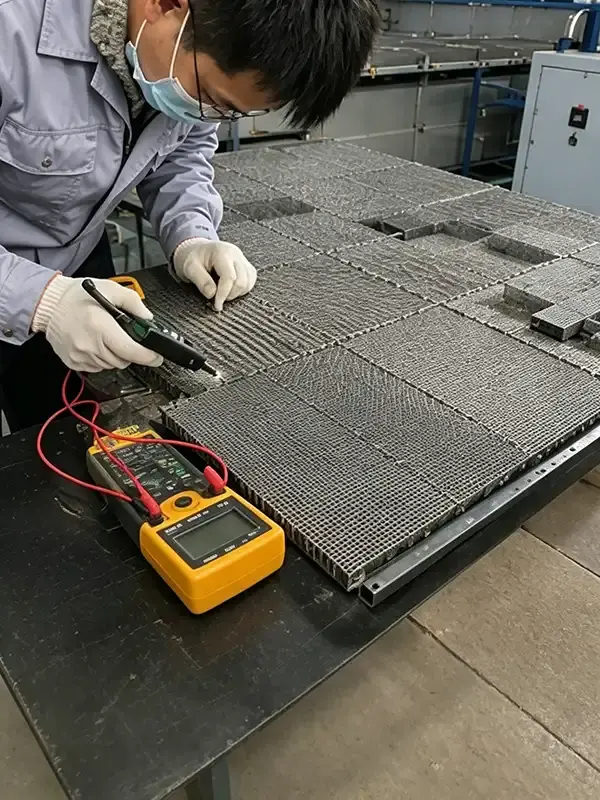

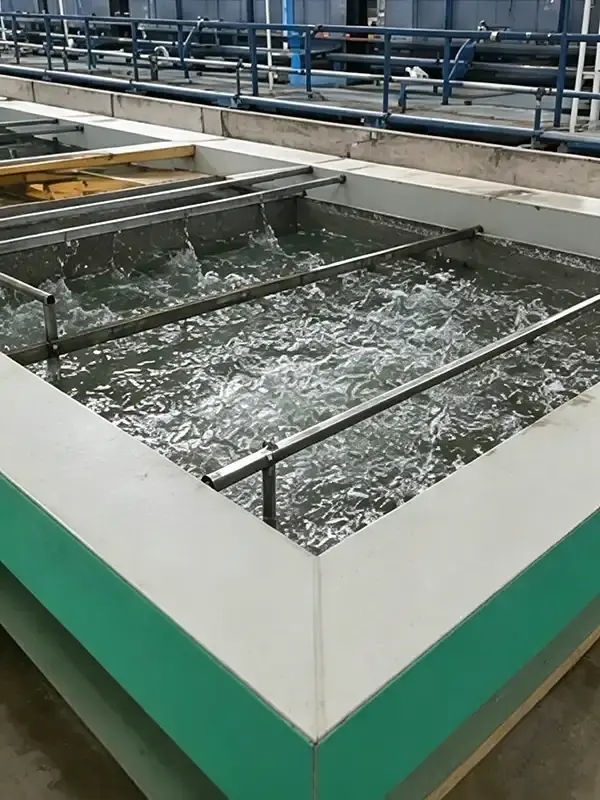

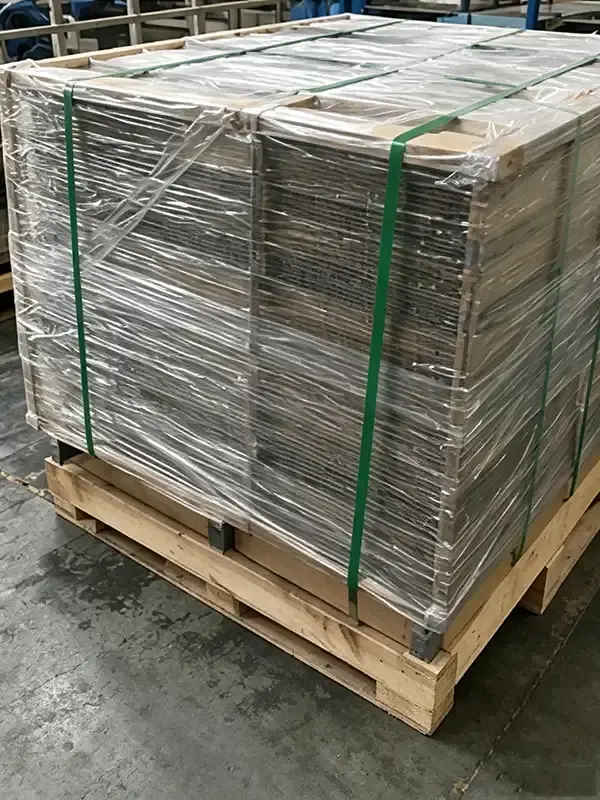

Conductivity Testing	Corrosion Resistance Testing	Bond Strength Testing	Final Inspection & Packaging
