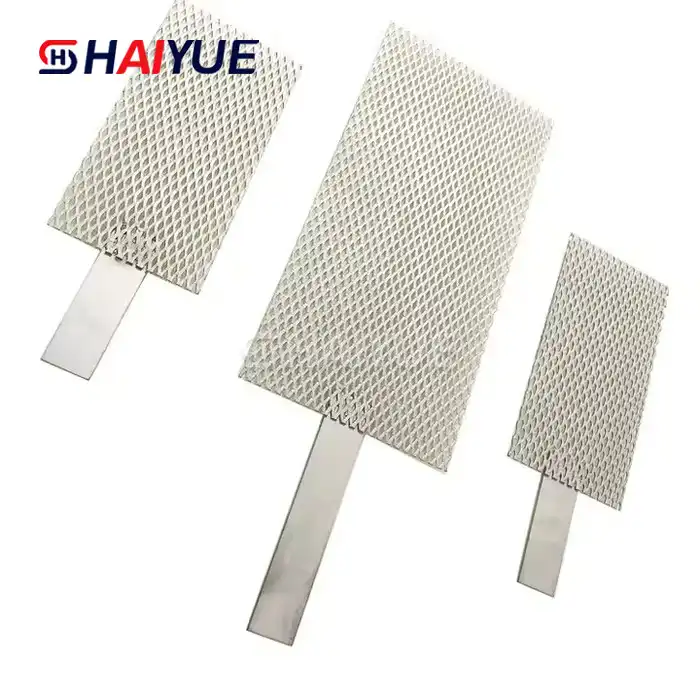

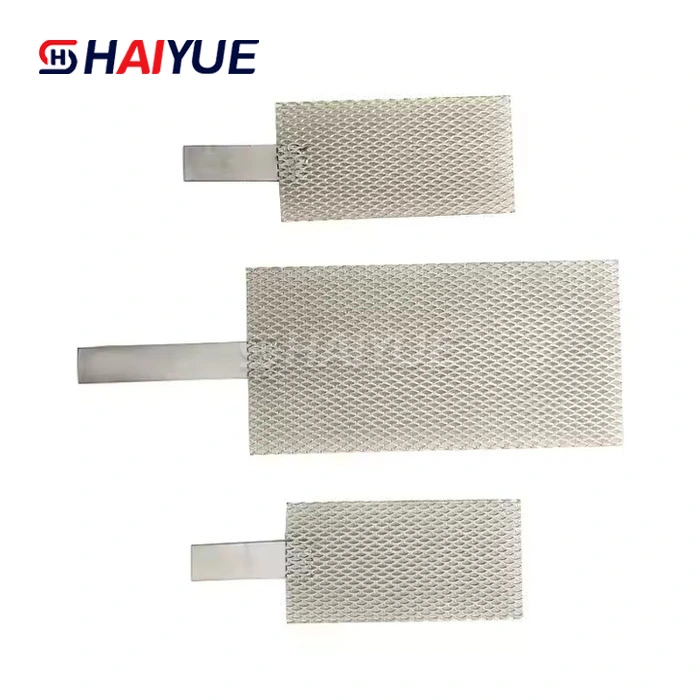

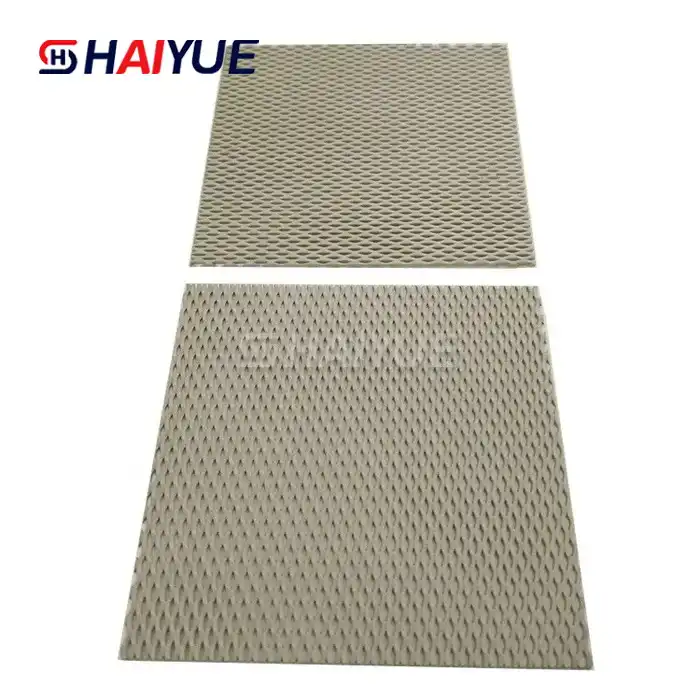

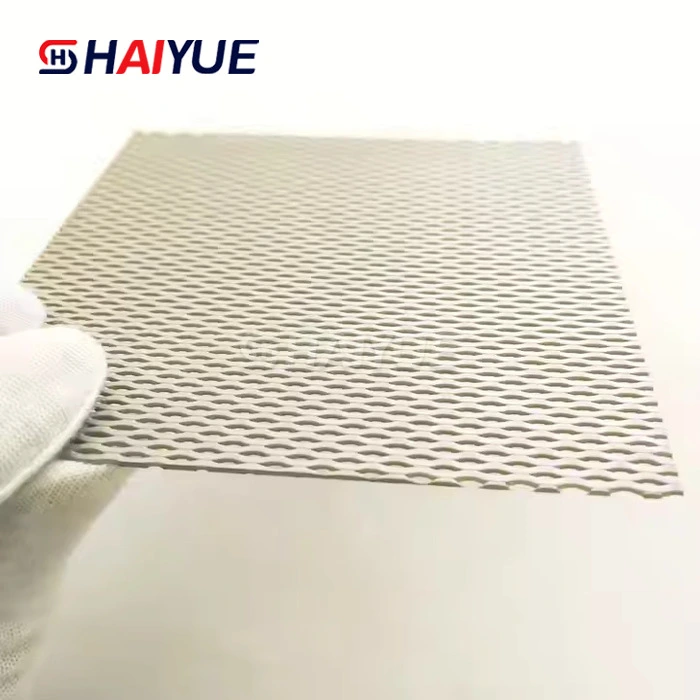

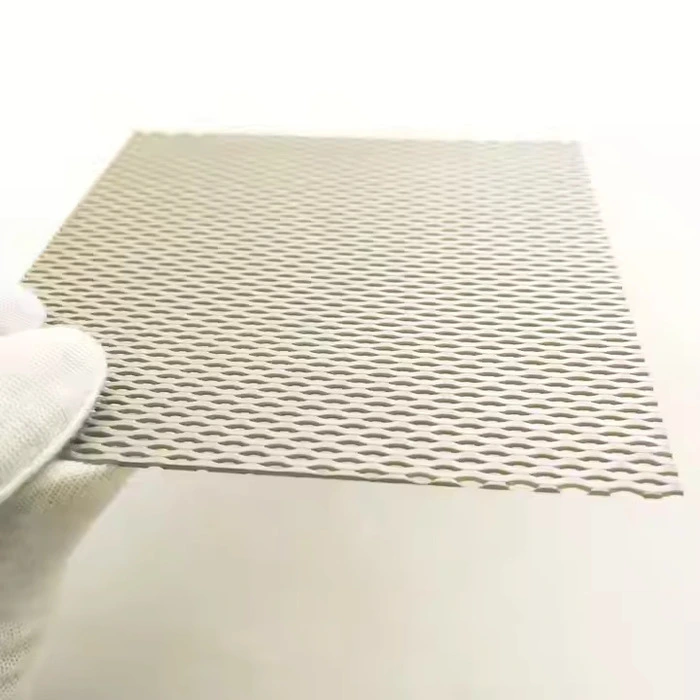

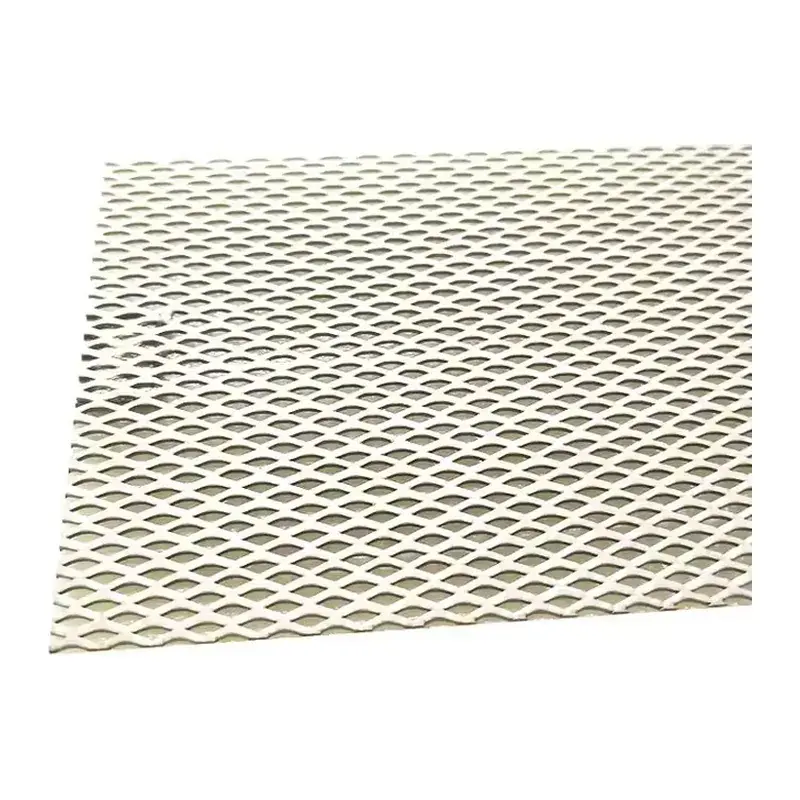

Platinum-coated titanium anode

Platinum-coated titanium anode, current density 2,000–10,000 A/m².
Service life 3–8 years, strong titanium substrate support.
Dense platinum coating >1 μm, chemical and corrosion resistant.
Electrocatalytic efficiency improved, reduces energy consumption significantly.
CVD, PVD, or electroplating, coating thickness customizable.

Send Inquiry

Download

Product Description

What Is Platinum-coated titanium anode and How to Choose the Right One for Your Industry?

Platinum-coated titanium anode is a high-performance insoluble electrode widely used in advanced electrochemical systems. It is manufactured using a high-purity titanium substrate coated with a thin layer of platinum, which provides exceptional catalytic activity, excellent electrical conductivity, and outstanding corrosion resistance. This combination makes the Platinum-coated titanium anode highly reliable in harsh industrial environments such as strong acid, chloride-rich solutions, and high-current-density operations.

The Platinum-coated titanium anode is commonly applied in water and wastewater treatment, electroplating, cathodic protection, chlor-alkali production, metal recovery, seawater electrolysis, and chemical processing industries. Compared with conventional anodes, it delivers higher current efficiency, lower energy consumption, and longer operational stability.

Selecting the right Platinum-coated titanium anode depends on key parameters such as operating current density, electrolyte composition, temperature, and required service life. For high-precision applications, thicker platinum coatings ensure longer durability, while cost-sensitive projects may use optimized thin-layer designs. Proper selection ensures stable electrochemical performance, reduced maintenance frequency, and improved system efficiency in long-term industrial use.

Features of Platinum-coated titanium anode

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Ultra-Long and Reliable Service Life

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)

Platinum-coated titanium anode can be fully customized according to industrial requirements:

HY Ti-Ni Import & Export provides full customization services for Platinum-coated titanium anode based on diverse industrial requirements:

Size & Dimensions: plate, mesh, rod, tube, ribbon, and customized shapes
Base Material: Gr1 / Gr2 titanium substrate selection
Platinum Coating Thickness: adjustable according to lifespan and cost needs
Coating Method: electroplating or advanced deposition techniques
Shape Design: customized for tanks, reactors, and electrochemical systems
Current Density Range: low, medium, and high-load operation options
Service Life Options: standard or extended durability versions
Connection Types: welded, threaded, or integrated designs
Application Engineering: tailored solutions for specific industrial processes

Each Platinum-coated titanium anode can be fully engineered according to drawings or technical specifications.

Why Choose Platinum-coated titanium anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export, located in Baoji High-tech Development Zone, is a professional manufacturer and exporter specializing in Platinum-coated titanium anode products. We integrate advanced coating technology, strong engineering capability, and strict quality control systems.

From titanium substrate preparation to platinum coating and final inspection, every process is carefully controlled to ensure high efficiency, durability, and stable performance.

With OEM/ODM flexibility and global supply experience, HY Ti-Ni Import & Export provides reliable and cost-effective Platinum-coated titanium anode solutions for industrial clients worldwide, supporting long-term cooperation and technical success.

Titanium Anode Purchase Guide: A Comprehensive Guide

When selecting a Platinum-coated titanium anode, first identify your working conditions, including electrolyte type, temperature, and current density. These parameters directly influence coating performance and electrode lifespan.

Next, choose the appropriate structure such as mesh, plate, rod, or tube depending on your system design. Then evaluate required durability, energy efficiency, and maintenance frequency. Finally, balance cost and performance by selecting suitable platinum coating thickness.

For industrial applications, technical consultation is highly recommended to ensure correct specification matching. HY Ti-Ni Import & Export provides professional engineering support to help customers choose the most suitable Platinum-coated titanium anode for stable operation, high efficiency, and reduced long-term operating costs.

Purchase Guide

1. What is a Platinum-coated titanium anode?
2. Main Technical Parameters of a Platinum-coated titanium anode.
3. Specifications of a Platinum-coated titanium anode.
4. Current Output of Standard Platinum-coated titanium anode.
5. Applications of a Platinum-coated titanium anode.
6. How to Purchase the Suitable Platinum-coated titanium anode?
7. FAQ
8. Our Factory

Products Introduction

What Is Platinum-coated Titanium Anode?

Platinum-coated titanium anode is an insoluble electrode made from a titanium base coated with a thin layer of platinum metal. It is designed for high-efficiency electrochemical reactions in industrial environments.

It offers excellent conductivity, strong corrosion resistance, and long service life, making it ideal for demanding electrochemical applications.

Main Technical Parameters

Parameter	Value Range
Base Material	Gr1 / Gr2 Titanium
Coating Type	Platinum Layer Coating
Coating Thickness	0.5 – 5 μm
Current Density	100 – 2000 A/m²
Operating Voltage	1.0 – 1.5 V
Temperature Range	≤ 85°C
Service Life	3 – 15 years

Specifications

Type	Structure	Application

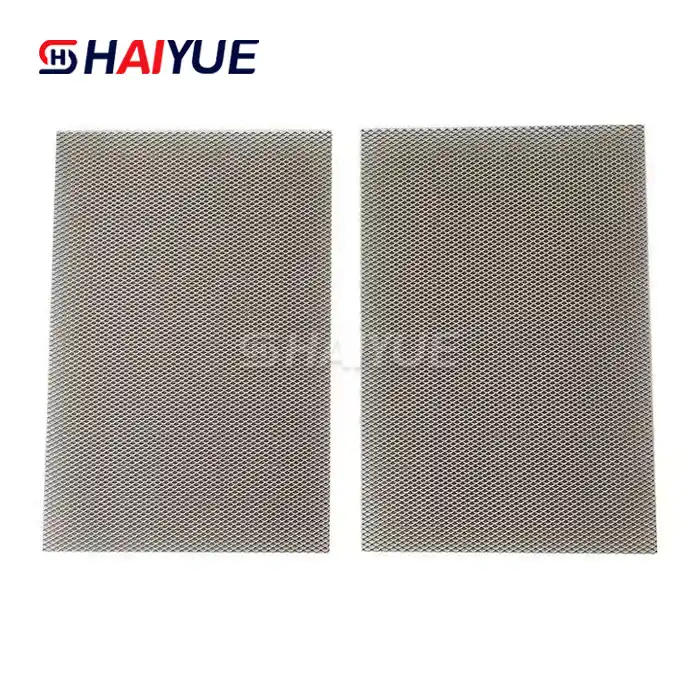

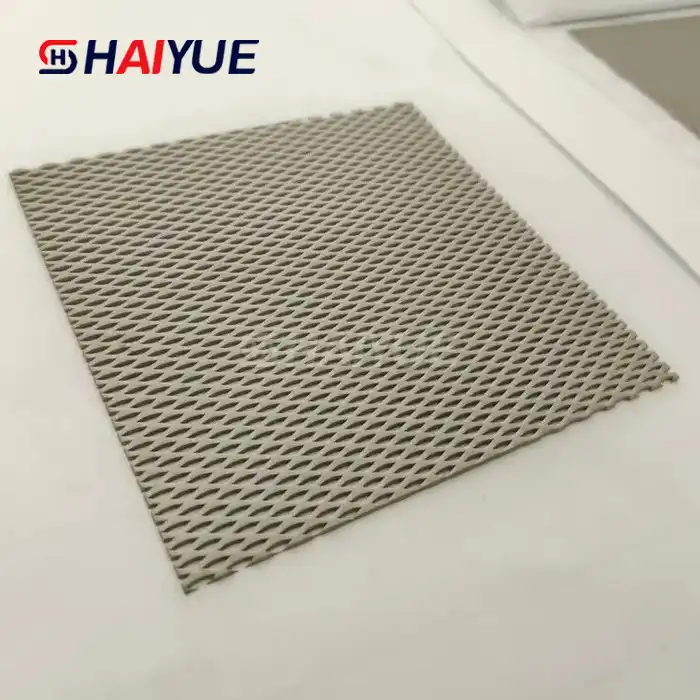

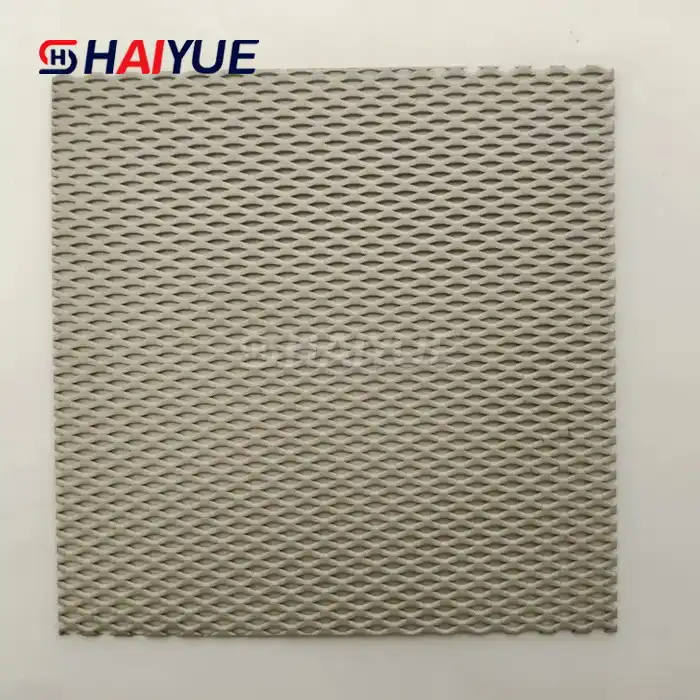

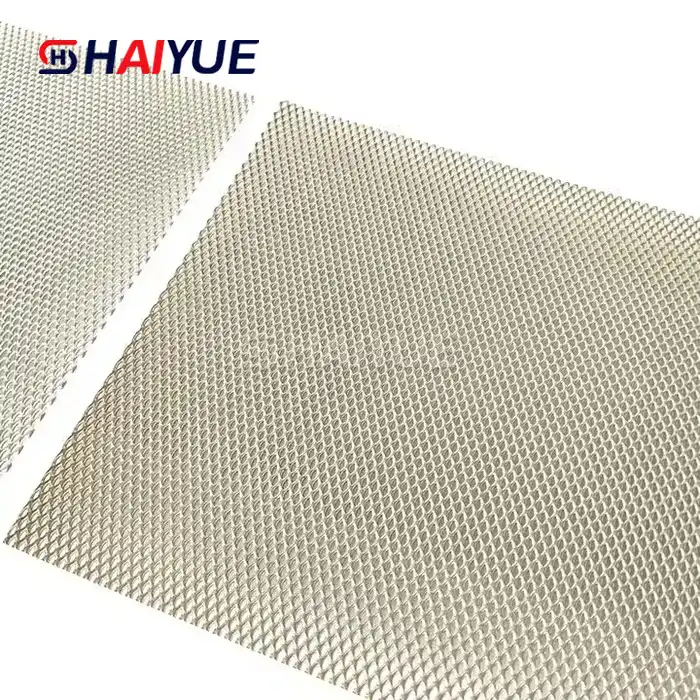

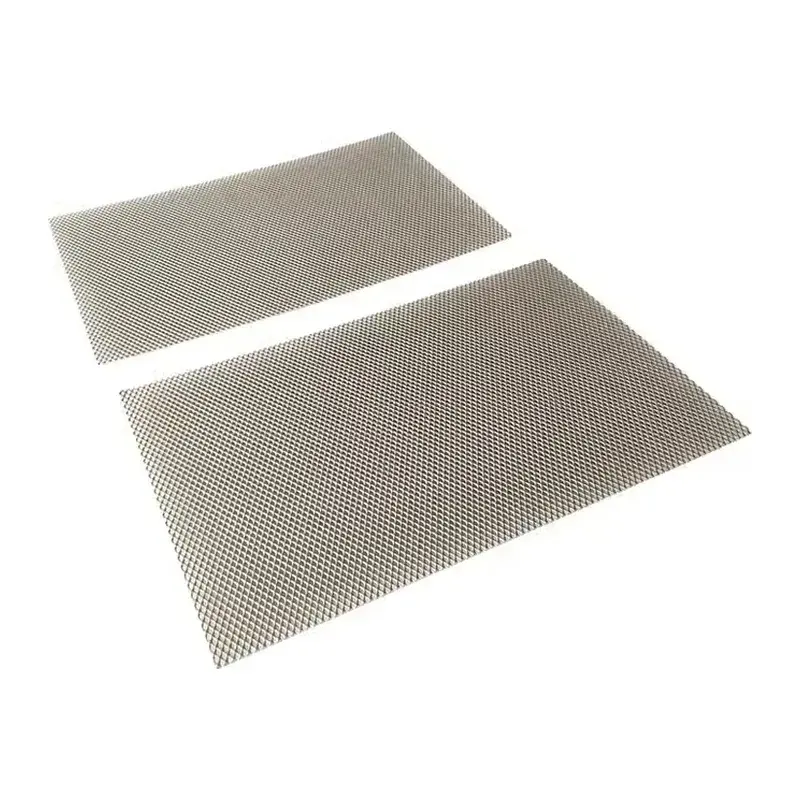

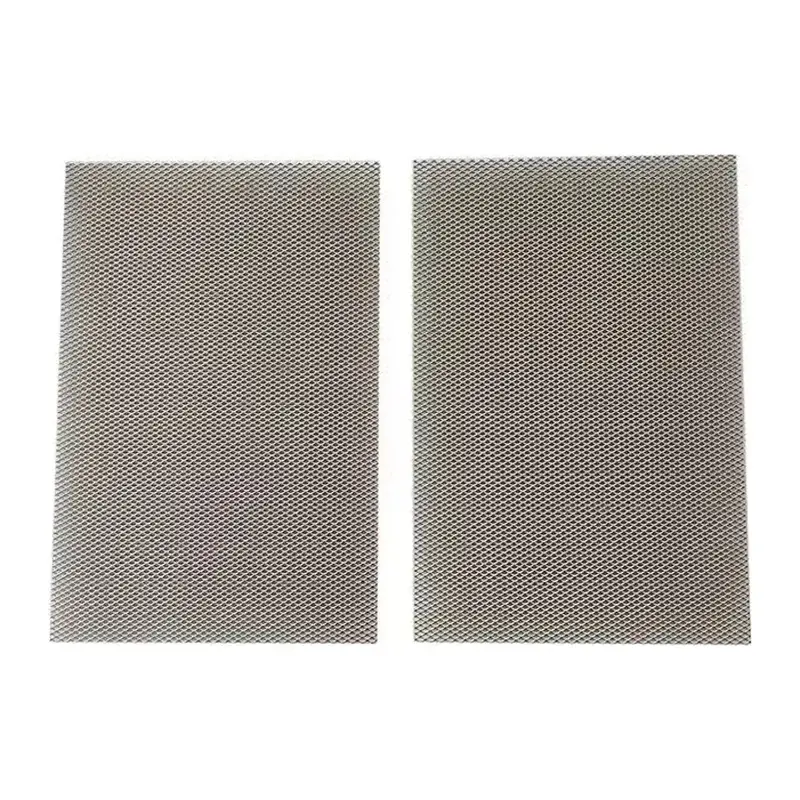

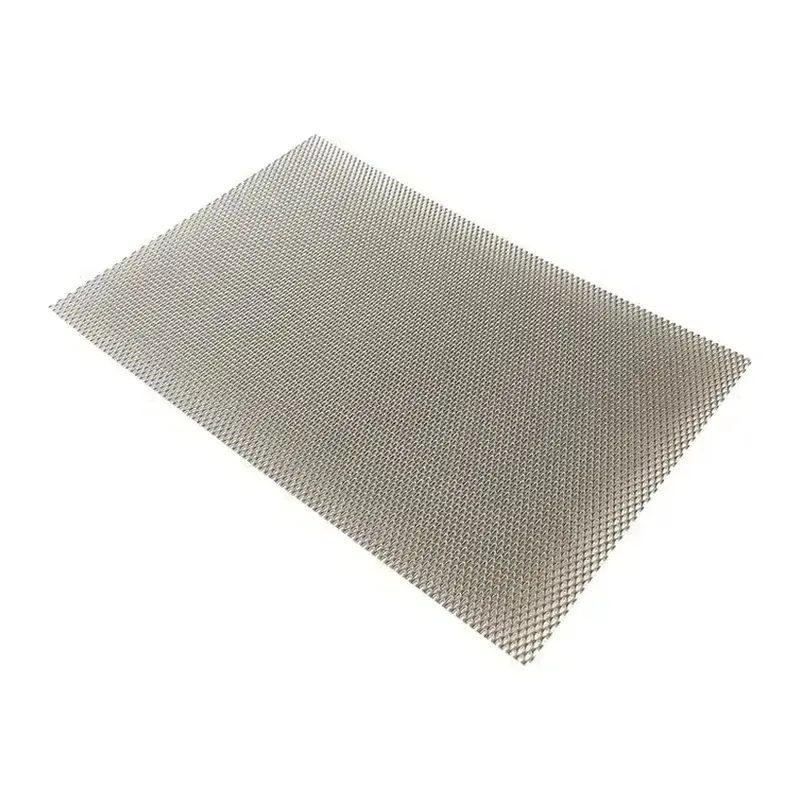

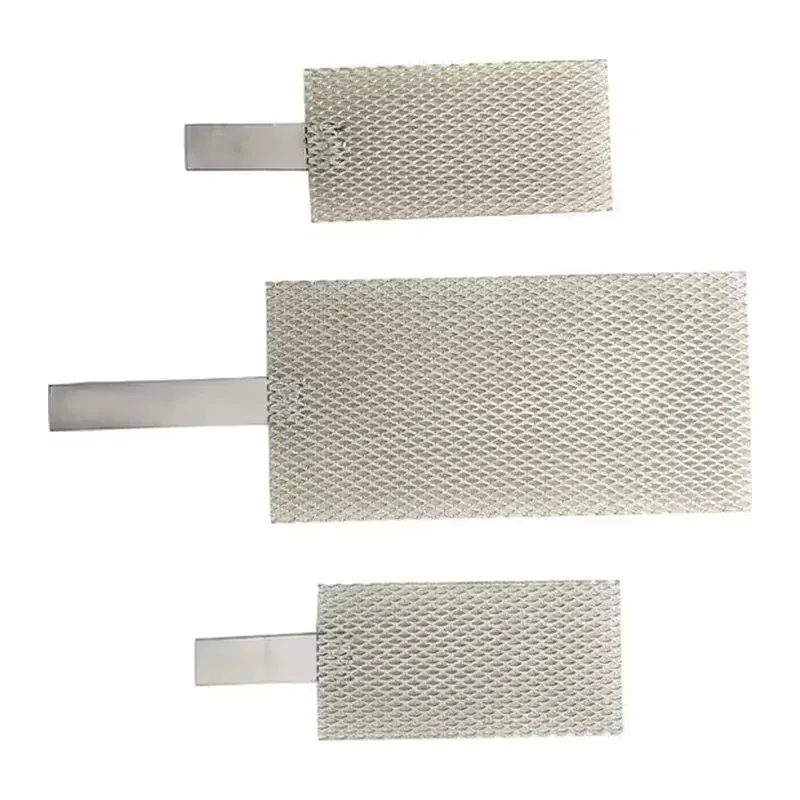

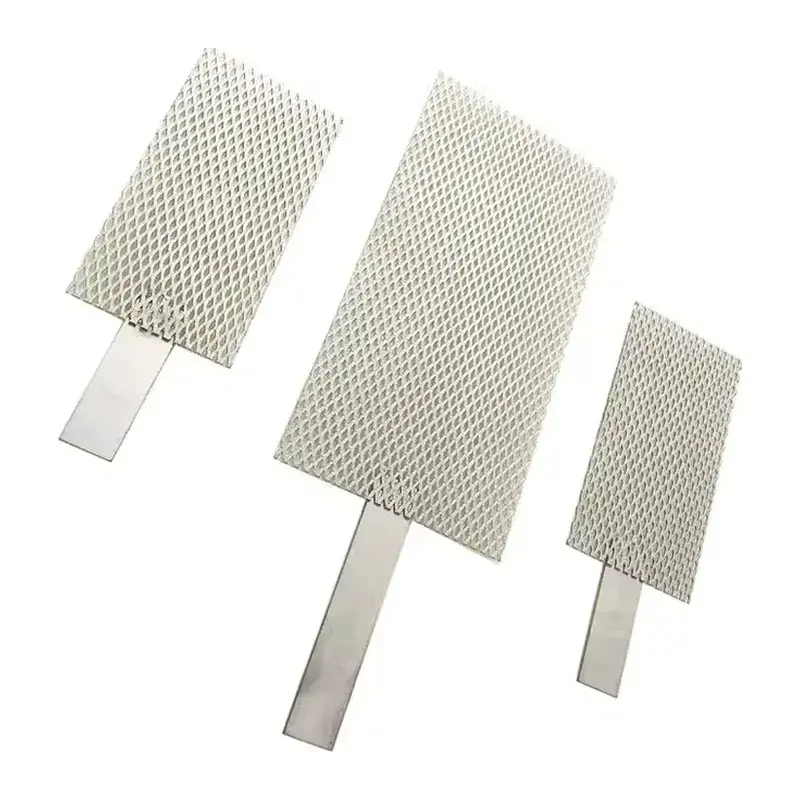

Mesh Type	Expanded mesh structure	Electroplating, wastewater
Plate Type	Flat sheet design	Chemical industry
Rod Type	Solid cylindrical form	Cathodic protection
Tube Type	Hollow structure	Special reactors

Cerrent output of Standard

Type	Current Density (A/m²)	Performance Level
Standard Mesh	200 – 1000	Stable operation
High Load Plate	500 – 1500	High efficiency
Heavy Duty Rod	300 – 1200	Long lifespan
Custom Platinum Coating	Up to 2000	Optimized output

Applications of MMO Titanium Anode

Be used in a wide range of industries.

Water Treatment Industry

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

To select the correct Platinum-coated titanium anode, first provide detailed working conditions such as electrolyte composition, temperature, and current density. These parameters determine coating thickness and structural design.

Then select the proper shape (mesh, plate, rod, or tube) based on system configuration. Finally, confirm service life requirements and performance targets to ensure optimal cost-efficiency balance.

HY Ti-Ni Import & Export offers professional technical support to help customers select the most suitable Platinum-coated titanium anode, ensuring stable performance, high efficiency, and long-term operational savings.

FAQ

Q1: What is the main advantage of Platinum-coated titanium anode?
It provides excellent conductivity and superior corrosion resistance.

Q2: Where is it commonly used?
It is widely used in electroplating, water treatment, and chemical industries.

Q3: What is its typical lifespan?
Usually 3 to 15 years depending on operating conditions.

Q4: Can it be customized?
Yes, size, shape, and coating thickness can be fully customized.

Q5: Does it require maintenance?
It requires minimal maintenance due to its stable platinum coating.

Our Factory

Titanium Anode | High Efficiency | Long Service Life | Eco-Friendly

Production site

State-of-the-art manufacturing for titanium anodes, precision coating and quality control.

Choseing titanium substrate	Substrate Cutting	Sandblasting	Pickling
Laser Cutting Configure Precious Metal	Coating	Sintering	Packaging

Workshop

Precision machining and coating workshop for titanium anodes.

Titanium anode coating workshop	Thermal decomposition sintering furnace workshop	Titanium mesh anode production area	Pickling/surface treatment process
Pickling/surface treatment process	Quality inspection workshop	Worker operation photos	Panoramic view of a clean production line

Quality inspection

Rigorous testing for coating adhesion, electrochemical performance, and durability.

Dimension Inspection	Coating Thickness Testing	Coating Adhesion Testing	Microstructure Analysis
Conductivity Testing	Corrosion Resistance Testing	Bond Strength Testing	Final Inspection & Packaging
