What Makes Titanium Open-End Lug Nuts the Ideal Choice for Motorsport and Performance Cars?

Titanium open end lug nuts are a superior upgrade over traditional steel or aluminum fasteners They combine strength lightness and corrosion resistance in a compact form that supports extreme driving conditions This 20 piece set of M12x125 or M14x125 lug nuts is manufactured using aerospace grade GR5 titanium and is designed for both performance and aesthetics

Understanding the Function and Design of Open End Lug Nuts

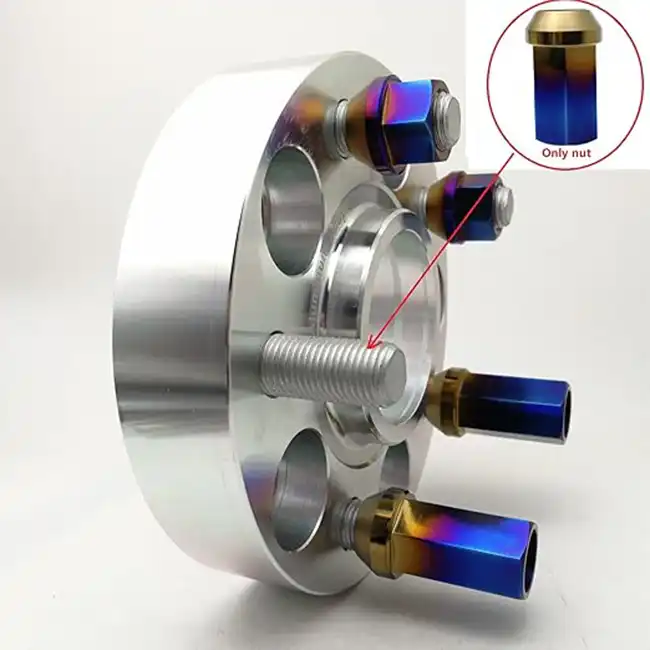

Lug nuts secure the wheels of a vehicle to the hub Open end designs allow for longer wheel studs which are commonly found in racing or modified vehicles This design ensures compatibility with extended studs and allows for easier inspection and fast removal during wheel changes

Titanium open end lug nuts feature a 60 degree conical seat and are machined to precise tolerances for high clamping force and stable wheel positioning Their hexagonal profile is optimized for tool engagement and consistent torque application

Aerospace Grade GR5 Titanium Properties

The material used in this lug nut set is GR5 titanium also known as Ti 6Al 4V It is the most widely used titanium alloy in aerospace and motorsport applications due to its excellent balance of mechanical and chemical characteristics

Typical properties include

High tensile strength near 950 MPa
Light weight around 45 percent lighter than steel
Excellent corrosion resistance in salt water acid and base environments
Non magnetic and thermally stable
High fatigue and crack resistance under load

These traits make GR5 titanium an ideal choice for fasteners exposed to vibration high speed rotation and rapid temperature changes

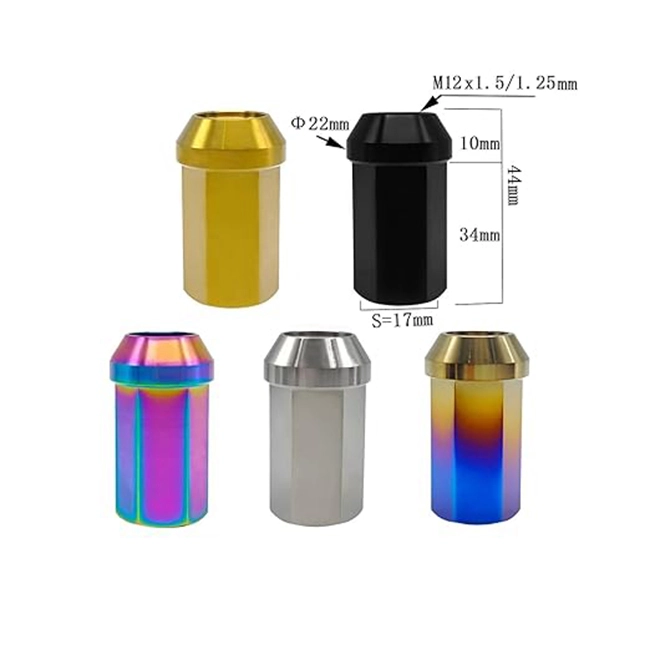

Technical Details and Product Dimensions

Thread options M12x125 and M14x125
Lug style hex type open end
Seat type conical 60 degree
Length 44mm
Surface finish raw titanium no coating
Color natural titanium grey
Set quantity 20 pieces
Net weight approximately 07kg per set
Packaging custom foam insert protective case

Each lug nut is precision CNC machined and undergoes quality control for concentricity thread tolerance and surface uniformity

Performance Benefits of Titanium Lug Nuts

Weight savings Titanium is significantly lighter than both steel and aluminum Reducing unsprung mass improves steering responsiveness and cornering behavior and contributes to lower rotational inertia

Durability GR5 titanium resists mechanical wear and does not deform under high torque loads making it suitable for both daily use and competitive motorsports

Corrosion resistance Titanium will not rust oxidize or corrode in any climate including road salt exposure during winter seasons This makes it ideal for long term use without degradation

Aesthetic enhancement The raw titanium finish provides a clean and high end appearance that matches aftermarket wheels brake calipers and custom builds It is also resistant to discoloration and fading over time

Compatibility and Application Scope

These lug nuts are engineered for vehicles using M12x125 or M14x125 thread pitch and wheels that require a conical 60 degree seat This includes but is not limited to the following car brands and models

Nissan 350Z 370Z GT R Silvia
Subaru WRX STI BRZ Legacy
Mazda RX7 RX8
Toyota 86 Supra MR2
BMW M3 M4 with M14x125 fitment
Other vehicles using aftermarket racing wheels with matching specifications

It is critical to confirm thread pitch seat type and stud length prior to installation to ensure proper fitment

Proper Installation and Torque Application

Manual tools should be used for installation to prevent damage to threads or the titanium surface Power tools such as impact guns should be avoided

A torque wrench should be used to achieve the manufacturer recommended torque specification This is generally 85 to 95 foot pounds for M12 threads and 100 to 120 foot pounds for M14 threads

It is advised to tighten the nuts in a star pattern to evenly distribute the load and ensure a proper seat on the wheel

To avoid galling or thread seizing a small amount of anti seize compound can be applied to the threads before tightening

Maintenance and Handling

Periodic inspection of the lug nuts is recommended especially for track vehicles or cars that frequently undergo tire changes Lug nuts should be cleaned with a soft cloth and non acidic cleaner Titanium requires minimal maintenance and can retain its appearance and mechanical integrity for years

Store the lug nuts in their protective case when not in use to avoid scratches or contamination

Packaging and Bulk Supply Options

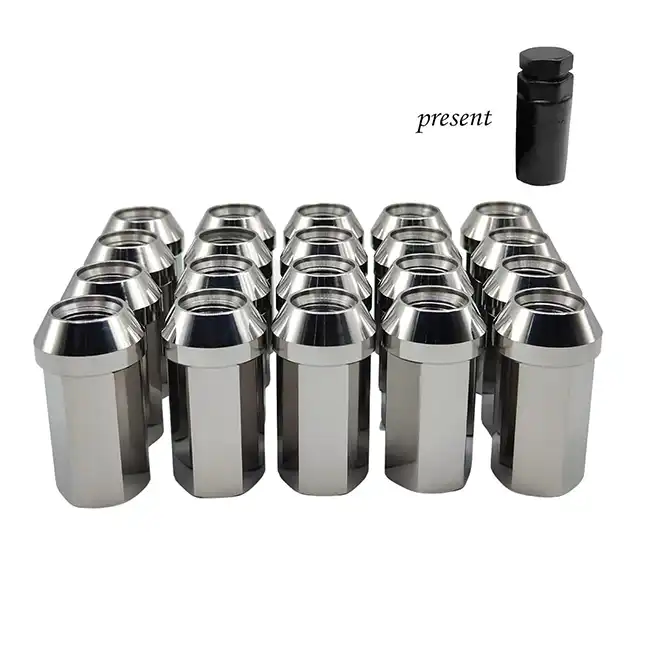

Each set includes 20 titanium open end lug nuts individually placed in a protective foam box Bulk orders for workshops distributors or performance brands can be supplied with custom packaging and laser logo engraving

Customization options include

Alternate thread pitches such as M12x15 M14x15 or 12 inch 20 UNF
Custom anodized colors including blue gold rainbow purple
Laser marked logos or text for branding
OEM production and private label services available upon request

Conclusion

This 20 piece titanium open end lug nut set provides an ideal combination of precision engineering superior material properties and motorsport ready performance For users seeking lightweight strength with high corrosion resistance this set is a top tier choice Whether you are upgrading your street vehicle preparing for track use or customizing a show car these lug nuts deliver lasting value reliability and aesthetic appeal
