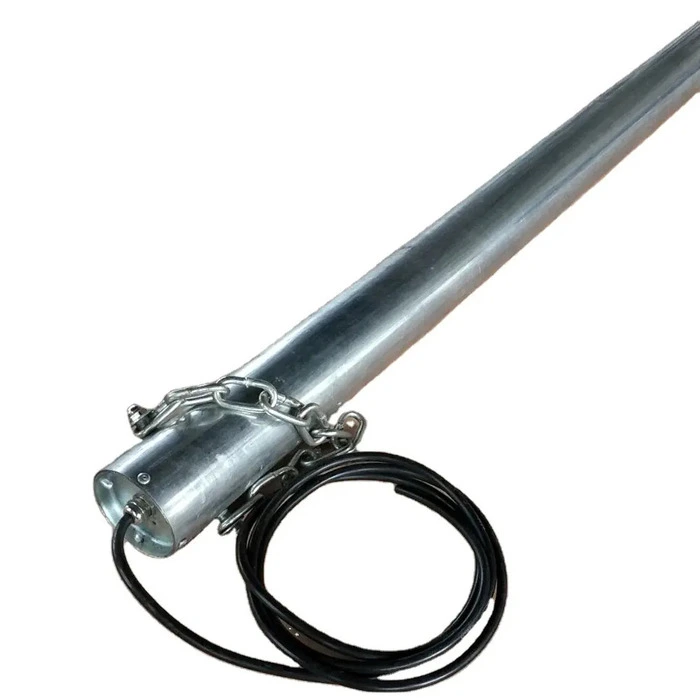

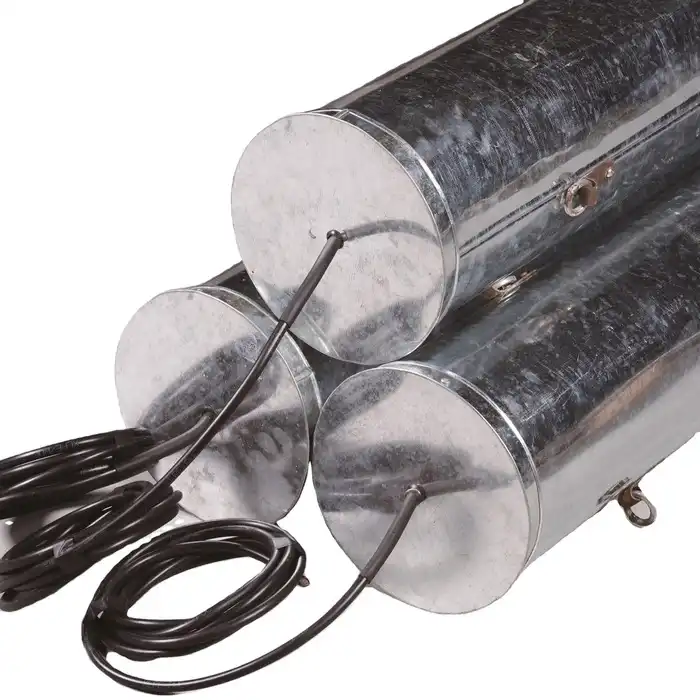

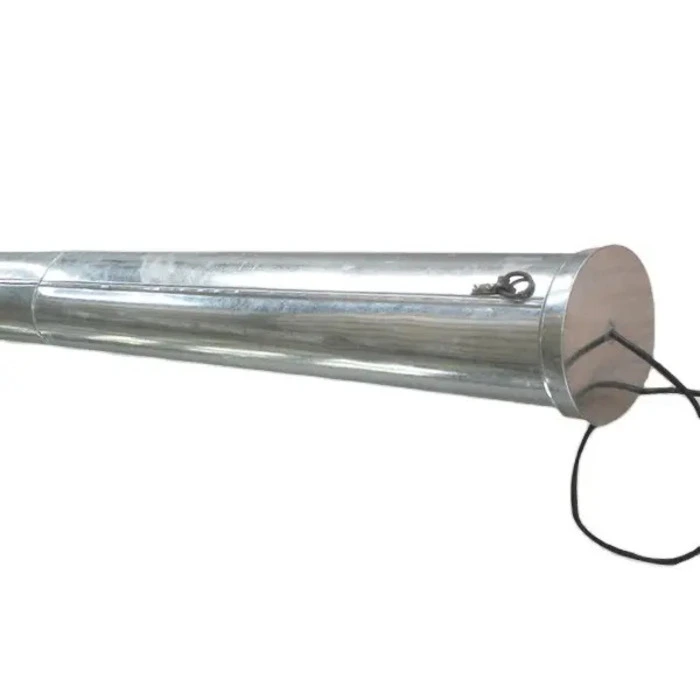

MMO Canister Anode

MMO Canister Anodes: Packaged Groundbed Assemblies

An MMO canister anode packages an active mixed-metal-oxide-coated titanium anode inside a housing with conductive backfill. Define the housing and active electrode separately, together with cable connections, backfill specification and installation requirements.

ICCP Anode Ordering Checklist

Confirm Current Units and the Design Basis

Specify current per anode in A, current density on an active-area basis such as A/m², or output per active length such as A/m when that is the agreed rating. These are different quantities. A value written in mA/m² cannot be treated as A/m² without conversion, and a per-length rating cannot be compared directly with an area-based rating. Ask for the rating basis, medium, duty cycle and coating specification.

System voltage and current distribution depend on the complete electrical circuit, groundbed or immersion arrangement, connections and operating conditions. Confirm these in the project design. Do not use a generic electrode voltage range as the system voltage requirement.

Canister Assembly and Deep Groundbed Scope

Confirm which items are inside the supplied canister and which are separate installation provisions. A packaged electrode does not by itself specify the complete borehole arrangement, venting, backfill column or lowering method. Review the project drawing and delivery scope before purchase.

ICCP Anode Procurement Questions

Does one coating and current rating apply to every environment?
No. Confirm the coating and rating for the stated installation medium, active dimensions and operating duty.

Is a generic service-life figure a guarantee for the project?
No. Agree on the coating loading, rated current, environment, duty cycle and life design basis for the order.

What should be specified for the electrical connection?
Give cable construction and length, current requirement, joint arrangement, sealing requirements and purchaser inspection criteria.

Request an ICCP Anode Quotation

Send the project conditions, required current, target life, drawing, dimensions, coating requirements, cable details, assembly scope, quantity and documents. Contact HYTi to review supply requirements or email jolina@bjhyti.com.

Related options: MMO tubular anode component specifications, tubular anode project selection, MMO linear anode systems.

What Is MMO Canister Anode and How to Choose the Right One for Your Industry?

An MMO canister anode packages an active mixed-metal-oxide-coated titanium anode inside a housing with conductive backfill. Define the housing and active electrode separately, together with cable connections, backfill specification and installation requirements.

An MMO canister anode packages an active mixed-metal-oxide-coated titanium anode inside a housing with conductive backfill. Define the housing and active electrode separately, together with cable connections, backfill specification and installation requirements.

Define the medium, project current demand, active dimensions, layout, connection requirements and target life before selecting the anode and coating.

Features of MMO Canister Anode

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Service-Life Design Basis

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)





MMO Canister Anode can be fully customized according to industrial requirements:

​​​​​​​​​​​​​​

HY Ti-Ni Import & Export provides full customization for MMO Canister Anode based on engineering requirements:

• Canister Size: 75–200 mm diameter customizable design
• Anode Length: adjustable for deep well or shallow installation
• Base Material: Gr1/Gr2 titanium conductor options
• Coating: confirm the MMO formulation for the actual installation medium and duty.
• Coating Loading: adjustable for lifespan and output control
• Backfill Material: carbon-based or mixed conductive fill
• Current Output Range: designed for low to high protection demand
• Life target: confirm coating, rated current, medium and duty cycle for the project.
• Structure Type: sealed, perforated, or reinforced canister
• OEM/ODM Design: fully customized according to drawings

Each MMO Canister Anode is engineered for stable electrochemical performance and long-term corrosion protection efficiency.

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we  specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export, located in Baoji High-tech Development Zone, is a professional manufacturer of MMO Canister Anode systems for cathodic protection applications. With advanced MMO coating technology and complete industrial chain support, we ensure high-quality and stable production.

Every MMO Canister Anode undergoes strict quality control from substrate preparation to final testing, ensuring long service life and consistent performance in harsh environments.

With strong OEM/ODM capability and global supply experience, HY Ti-Ni Import & Export delivers reliable and cost-effective MMO Canister Anode solutions for pipelines, tanks, and deep well systems worldwide.





Titanium Anode Purchase Guide: A Comprehensive Guide

When selecting an MMO Canister Anode, the first step is to analyze soil resistivity, installation depth, and structure type. These factors determine current distribution and system efficiency.

Next, calculate total protection current and system layout to define anode quantity and spacing. Then select appropriate coating loading and canister size based on expected service life and environmental conditions.

Finally, ensure proper backfill material selection to reduce resistance and improve conductivity. HY Ti-Ni Import & Export provides professional engineering support to help customers choose the most suitable MMO Canister Anode system for long-term corrosion protection and cost efficiency.





What Is MMO Canister Anode?









An MMO canister anode packages an active mixed-metal-oxide-coated titanium anode inside a housing with conductive backfill. Define the housing and active electrode separately, together with cable connections, backfill specification and installation requirements.

It provides stable current output, low resistance performance, and long service life, making it ideal for pipelines, storage tanks, and underground steel structures.

Be used in a wide range of industries.



Water Treatment Industry

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

To select the correct MMO Canister Anode, customers should first provide project data such as soil resistivity, installation depth, structure type, and required protection current. These parameters directly determine system design and performance.

Next, define design life and installation environment to choose suitable canister size, coating loading, and backfill configuration. Then calculate system layout to ensure uniform current distribution.

HY Ti-Ni Import & Export offers engineering support and OEM customization to ensure each MMO Canister Anode system is optimized for maximum corrosion protection efficiency, long service life, and reduced maintenance cost.



FAQ

Q1: What is the main function of MMO Canister Anode?
It provides long-term cathodic protection in soil and deep well environments.

Agree on the service-life design basis for the selected coating, rated current, medium and operating duty.

Q3: Where is it commonly used?
It is widely used in pipelines, tanks, and underground structures.

Q4: Can it be customized?
Yes, size, coating, and structure can be fully customized.

Q5: Does it require maintenance?
It requires minimal maintenance due to stable MMO coating performance.



Our Factory

Titanium Anode | High Efficiency | Long Service Life | Eco-Friendly

Production site

State-of-the-art manufacturing for  titanium anodes, precision coating and quality control.

Choseing titanium substrate	Substrate Cutting	Sandblasting	Pickling
Laser Cutting Configure Precious Metal	Coating	Sintering	Packaging

Workshop

Precision machining and coating workshop for titanium anodes.

Titanium anode coating workshop	Thermal decomposition sintering furnace workshop	Titanium mesh anode production area	Pickling/surface treatment process
Pickling/surface treatment process	Quality inspection workshop	Worker operation photos	Panoramic view of a clean production line

Quality inspection

Rigorous testing for coating adhesion, electrochemical performance, and durability.

Dimension Inspection	Coating Thickness Testing	Coating Adhesion Testing	Microstructure Analysis
Conductivity Testing	Corrosion Resistance Testing	Bond Strength Testing	Final Inspection & Packaging

Packaging

Professional packaging to prevent damage and corrosion during transportation.

Document Review

Request the documents applicable to the supplier, product and order; confirm their scope and validity.

ISO 9001:2015

ISO 14001:2015

CE Marking

RoHS Compliant
