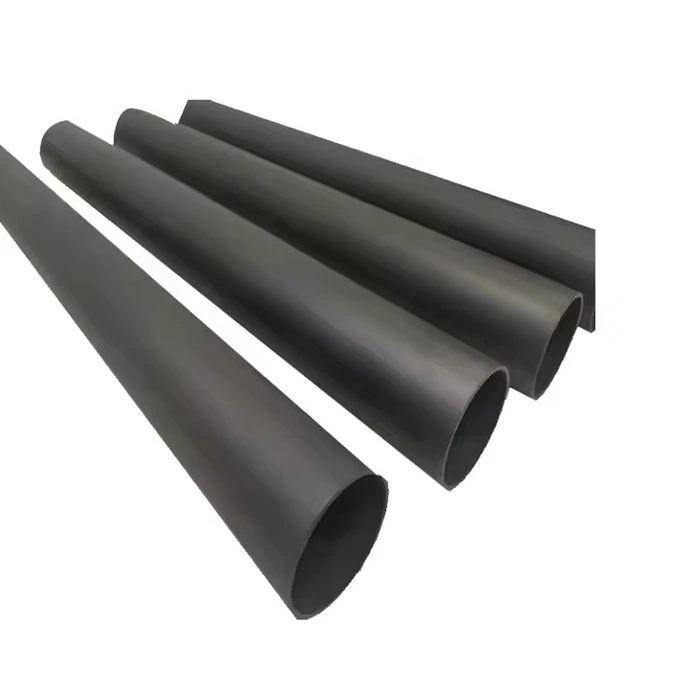

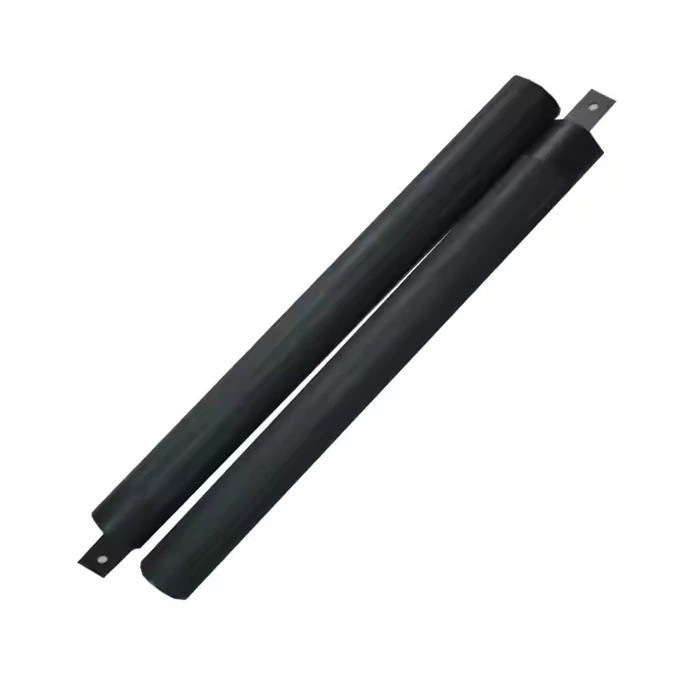

MMO Tubular Anode

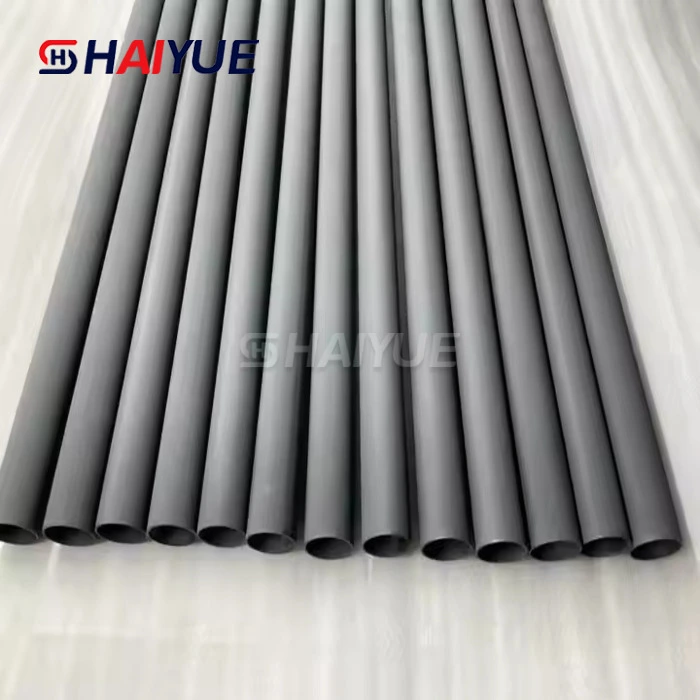

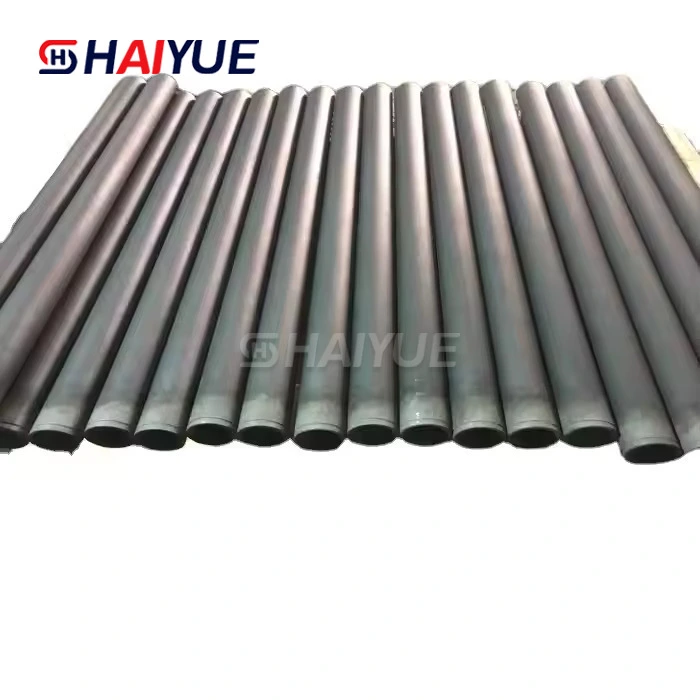

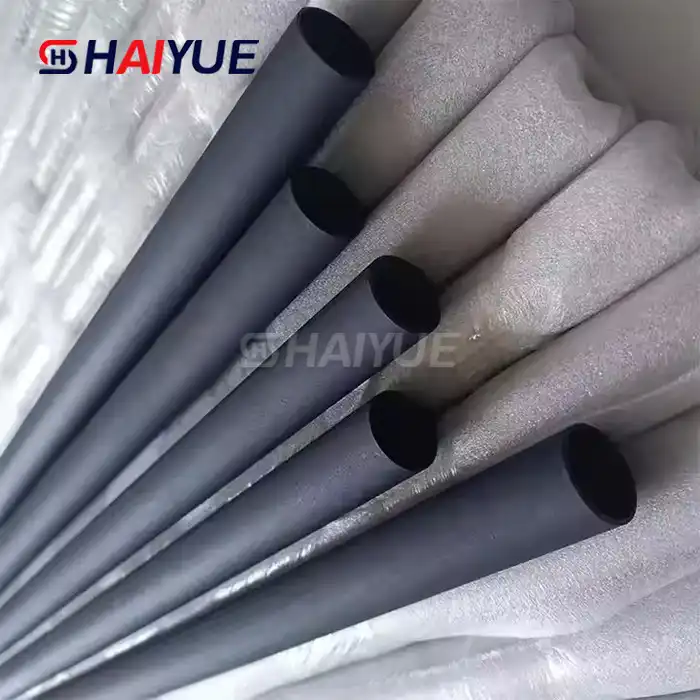

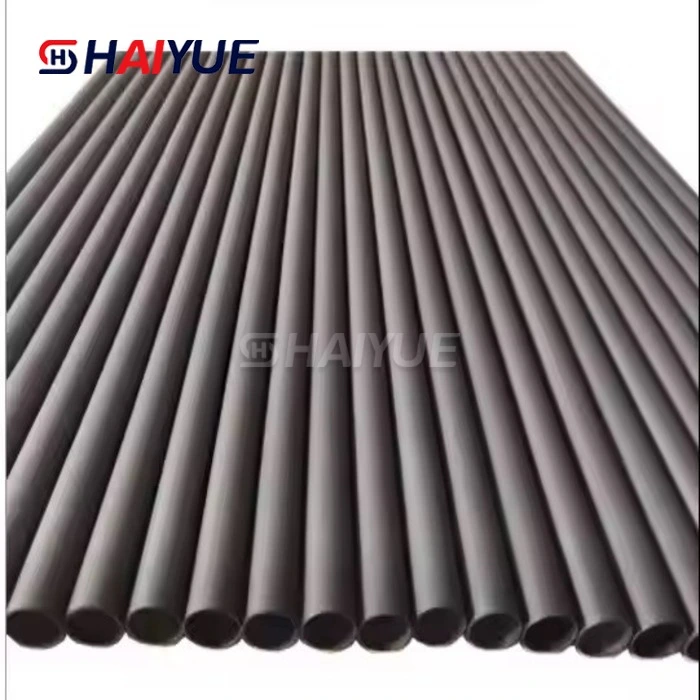

1. Product: MMO coated titanium tubular anode.
2. Supply scope: specify coated tube, attached lead or packaged assembly.
3. Dimensions: provide the active element and assembly drawing.
4. Electrical duty: state rated current and its area/length basis.
5. Coating and life: confirm formulation, loading, environment and duty cycle.
6. Quotation: provide installation conditions, quantity and required documents.

Send Inquiry

Download

Product Description

MMO Tubular Anodes: Component Specification

A tubular MMO anode uses a coated titanium tube as the active element of an impressed current cathodic protection system. Specify the coating and electrical rating for the installation medium. A bare tube, a tube with attached cable and a packaged anode assembly have different supply scopes.

ICCP Anode Ordering Checklist

Procurement item	Requirement to confirm
Active tube	Provide diameter, wall thickness, length and active coated dimensions
Coating	Confirm MMO formulation and loading for the actual medium and duty
Rated duty	Specify current per anode, active surface area and required operating life
Lead and connection	State cable type, length, terminal and sealing requirements
Mounting and handling	Provide mechanical drawing and installation constraints
Acceptance	Agree on dimensional, connection and coating checks and required records

Confirm Current Units and the Design Basis

Specify current per anode in A, current density on an active-area basis such as A/m², or output per active length such as A/m when that is the agreed rating. These are different quantities. A value written in mA/m² cannot be treated as A/m² without conversion, and a per-length rating cannot be compared directly with an area-based rating. Ask for the rating basis, medium, duty cycle and coating specification.

System voltage and current distribution depend on the complete electrical circuit, groundbed or immersion arrangement, connections and operating conditions. Confirm these in the project design. Do not use a generic electrode voltage range as the system voltage requirement.

Bare Tubular Anode or Packaged Assembly?

Define whether the supply consists of the coated tube, the tube with attached lead, or an assembly that also includes a housing and backfill. Installation materials and accessories must be identified separately. This distinction is illustrated in the MATCOR product-form overview; that reference does not establish HYTi product ratings or included accessories.

ICCP Anode Procurement Questions

Does one coating and current rating apply to every environment?
No. Confirm the coating and rating for the stated installation medium, active dimensions and operating duty.

Is a generic service-life figure a guarantee for the project?
No. Agree on the coating loading, rated current, environment, duty cycle and life design basis for the order.

What should be specified for the electrical connection?
Give cable construction and length, current requirement, joint arrangement, sealing requirements and purchaser inspection criteria.

Request an ICCP Anode Quotation

Send the project conditions, required current, target life, drawing, dimensions, coating requirements, cable details, assembly scope, quantity and documents. Contact HYTi to review supply requirements or email jolina@bjhyti.com.

What Is MMO Tubular Anode and How to Choose the Right One for Your Industry?

Define the medium, project current demand, active dimensions, layout, connection requirements and target life before selecting the anode and coating.

Features of MMO Tubular Anode

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Service-Life Design Basis

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)

MMO Tubular Anode can be fully customized according to industrial requirements:

HY Ti-Ni Import & Export provides full customization for MMO Tubular Anode based on engineering requirements:

Tube Diameter: customizable from small to large industrial sizes
Tube Length: designed for shallow or deep well installations
Base Material: ASTM Grade 1 or Grade 2 titanium
Coating: confirm the MMO formulation for the actual installation medium and duty.
Coating Loading: adjustable for lifespan and output control
Current Output Range: low to high protection current design
Structural Design: perforated, sealed, or reinforced tube types
Life target: confirm coating, rated current, medium and duty cycle for the project.
Installation Method: vertical, horizontal, or deep well systems
OEM/ODM Support: fully customized according to drawings

Each MMO Tubular Anode is engineered for stable performance, low resistance, and long-term cathodic protection efficiency.

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export, located in Baoji High-tech Development Zone, is a professional manufacturer and exporter of MMO Tubular Anode systems for industrial cathodic protection. We integrate advanced MMO coating technology, strict quality control, and strong engineering capability.

From titanium tube processing to coating sintering and final inspection, every step is strictly controlled to ensure stable performance and long service life.

With OEM/ODM flexibility and global supply experience, HY Ti-Ni Import & Export provides reliable and cost-effective MMO Tubular Anode solutions for pipelines, marine structures, and deep well protection systems worldwide.

Titanium Anode Purchase Guide: A Comprehensive Guide

When selecting an MMO Tubular Anode, first evaluate installation conditions such as soil resistivity, moisture level, and structure type. These factors directly affect current distribution and system efficiency.

Next, determine total protection current and installation depth to define anode size and quantity. Then select appropriate coating loading and tube geometry based on required service life.

Finally, ensure compatibility with backfill materials and installation method. HY Ti-Ni Import & Export provides engineering support to help customers select the most suitable MMO Tubular Anode system for long-term corrosion protection, high efficiency, and reduced lifecycle cost.

Purchase Guide

1. What is a MMO Tubular Anode?
2. Main Technical Parameters of a MMO Tubular Anode.
3. Specifications of a MMO Tubular Anode.
4. Current Output of Standard MMO Tubular Anode.
5. Applications of a MMO Tubular Anode.
6. How to Purchase the Suitable MMO Tubular Anode?
7. FAQ
8. Our Factory

Products Introduction

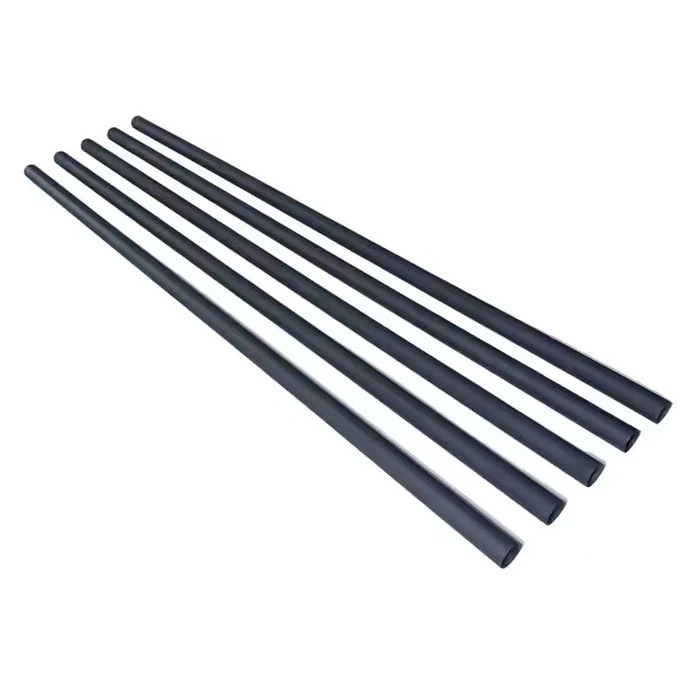

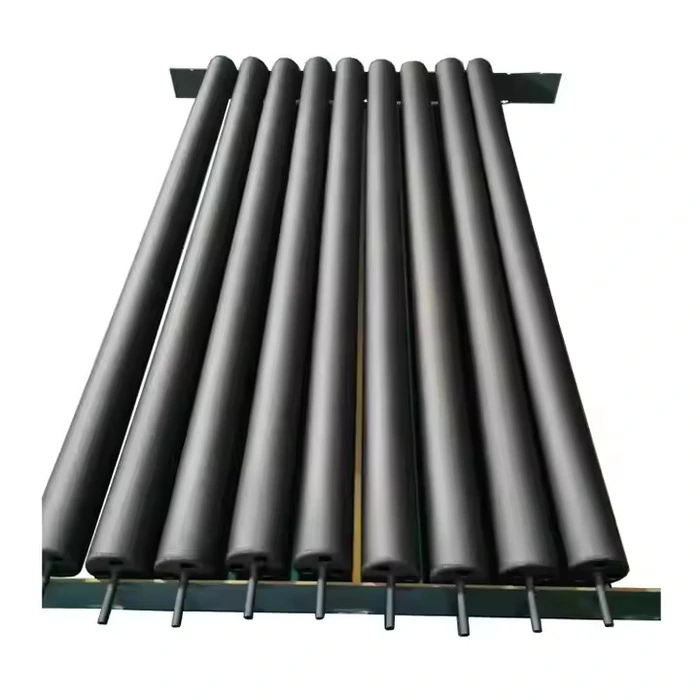

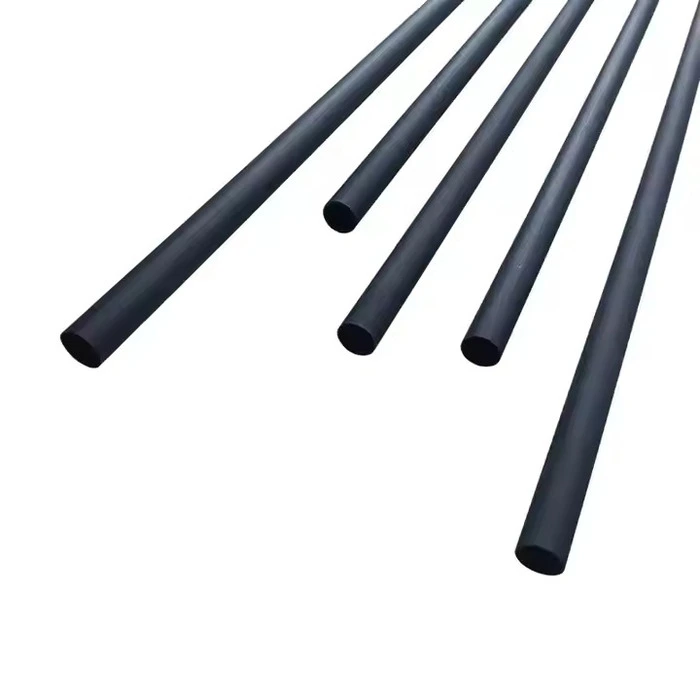

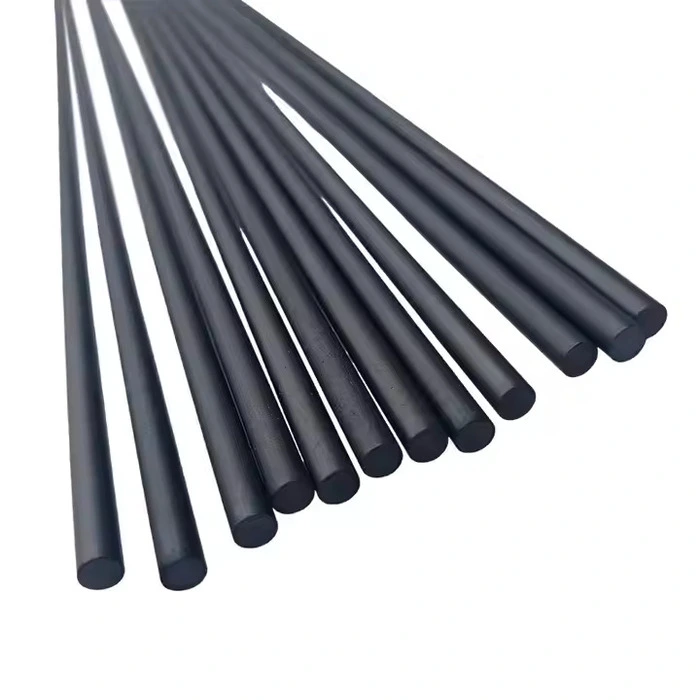

What Is MMO Tubular Anode?

It provides uniform current distribution, low electrical resistance, and high durability, making it ideal for pipelines, tanks, offshore platforms, and deep well systems.

Main Technical Parameters

Procurement item	Requirement to confirm
Active tube	Provide diameter, wall thickness, length and active coated dimensions
Coating	Confirm MMO formulation and loading for the actual medium and duty
Rated duty	Specify current per anode, active surface area and required operating life
Lead and connection	State cable type, length, terminal and sealing requirements
Mounting and handling	Provide mechanical drawing and installation constraints
Acceptance	Agree on dimensional, connection and coating checks and required records

Specifications

Type	Structure	Application
Standard Tubular Anode	Solid tube design	Pipeline protection
Perforated Tube Anode	Hole structure	Soil corrosion control
Deep Well Tubular Anode	Vertical installation	Deep well systems
Reinforced Tube Anode	Heavy-duty structure	Marine environments
Custom Tubular System	OEM design	Industrial applications

Rated Current: Confirm Units and Project Conditions

Procurement item	Requirement to confirm
Rated current	Specify A per anode or an explicitly defined area/length basis
Active dimensions	Give coated tube area or active assembly dimensions used for the rating
Operating basis	Define medium, duty cycle and coating specification
Life and system design	Review target life and complete groundbed/installation requirements

Applications of MMO Titanium Anode

Be used in a wide range of industries.

Water Treatment Industry

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

To select the correct MMO Tubular Anode, customers should provide project details such as soil resistivity, installation depth, structure type, and required current output. These parameters directly influence system design and performance.

Next, define service life requirements and installation environment to select appropriate tube diameter, coating loading, and configuration. Then calculate system layout to ensure uniform current distribution.

HY Ti-Ni Import & Export provides professional engineering consultation to ensure each MMO Tubular Anode system is optimized for high efficiency, long lifespan, and reduced maintenance cost.

FAQ

Q1: What is MMO Tubular Anode used for?
It is used for cathodic protection of buried and submerged structures.

Agree on the service-life design basis for the selected coating, rated current, medium and operating duty.

Q3: Where is it commonly used?
It is widely used in pipelines, tanks, and marine structures.

Q4: Can it be customized?
Yes, size, coating, and structure are fully customizable.

Q5: Does it require maintenance?
It requires minimal maintenance due to stable MMO coating performance.
