titanium grade 2 plate
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.

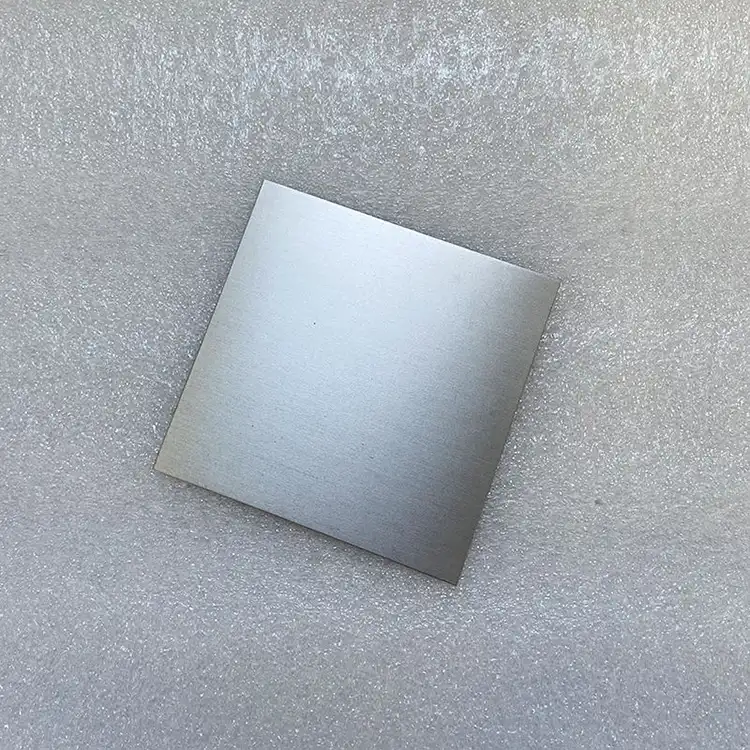

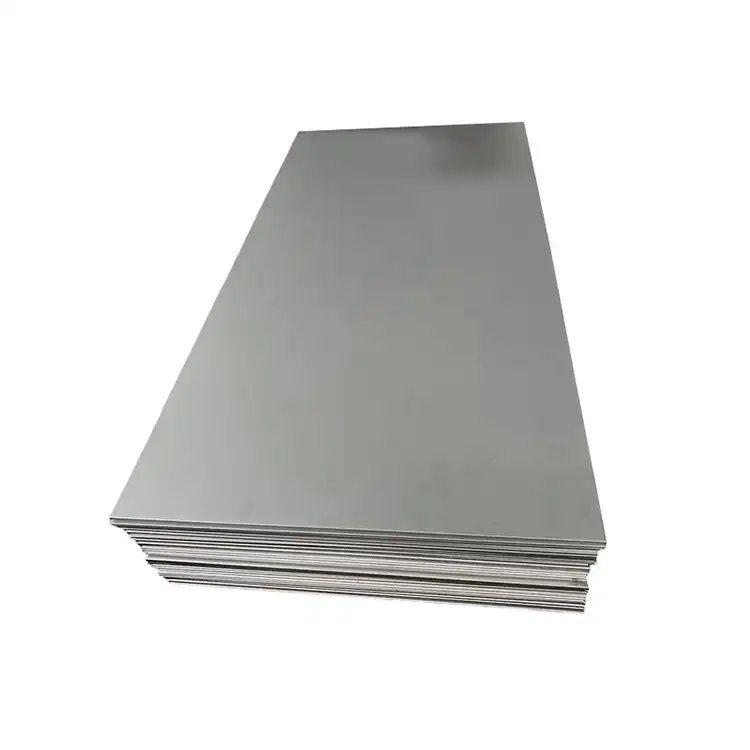

Titanium Grade 2 Plate: High-Performance Material for Critical Applications
Product Introduction
Titanium Grade 2 plate is a premium material widely recognized for its outstanding balance of strength, corrosion resistance, and versatility. It is often used in demanding industries such as aerospace, medical devices, chemical processing, and marine engineering. Known for its excellent resistance to corrosion and its ability to withstand harsh environments, Titanium Grade 2 is the ideal choice for critical applications where reliability and performance are paramount.
At Baoji Haiyue New Metal Materials Co., Ltd., we provide top-quality Titanium Grade 2 plates that are manufactured in strict accordance with international standards. Our plates are available in a variety of sizes, thicknesses, and finishes to meet the specific needs of industries requiring high-performance materials.
Technical Specifications
Below is a detailed table showcasing the key technical specifications of Titanium Grade 2 plate, including common industry standards used in the United States, Russia, and Japan.
Titanium Grade 2 Plate - Technical Specifications
| Property | Value |
|---|---|
| Grade | Titanium Grade 2 |
| Composition | Ti ≥ 99%, O ≤ 0.25%, Fe ≤ 0.3% |
| Density | 4.51 g/cm³ |
| Tensile Strength | 345 MPa (50 ksi) |
| Yield Strength | 275 MPa (40 ksi) |
| Elongation | 20% |
| Hardness | 160 Vickers |
| Modulus of Elasticity | 105 GPa (15.2 x 10³ ksi) |
| Thermal Conductivity | 21.9 W/m·K |
| Melting Point | 1,668°C (3,034°F) |
| Corrosion Resistance | Excellent in both seawater and acidic environments |
Titanium Grade 2 Plate - Standards (USA, Russia, Japan)
| Region/Country | Standard | Equivalent Grade |
|---|---|---|
| USA | ASTM B265, ASTM B348 | UNS R50400 |
| Russia | GOST 19807-74 | VT1-0 |
| Japan | JIS H 4600 | Ti-Grade 2 |
Titanium Grade 2 Plate - Physical Properties
| Property | Value |
|---|---|
| Electrical Resistivity | 0.42 µΩ·cm |
| Specific Heat | 0.52 J/g·K |
| Thermal Expansion | 8.6 µm/m·K |
| Conductivity | 2.38 × 10⁶ S/m |
 |
 |
 |
 |
 |
 |
 |
 |
Product Features (Key Features)
-
Corrosion Resistance: Titanium Grade 2 plates offer superior resistance to corrosion in a wide range of environments, including seawater, acidic, and alkaline solutions, making them ideal for marine and chemical industries.
-
Strength-to-Weight Ratio: Despite being lightweight, Titanium Grade 2 plates exhibit excellent tensile strength, making them a popular choice for aerospace and automotive applications where weight is critical.
-
Biocompatibility: The material is highly biocompatible, making it suitable for medical implants, prosthetics, and surgical instruments.
-
Formability: Titanium Grade 2 is highly formable and can be machined, welded, and fabricated into various complex shapes with ease.
-
Durability: Titanium Grade 2 plates are highly durable, offering long service life even under harsh conditions.
Applications
Titanium Grade 2 plates are used in a wide range of critical industries, including:
- Aerospace: Aircraft components, engine parts, and fasteners.
- Medical Devices: Implants, surgical instruments, prosthetics, and dental applications.
- Chemical Processing: Heat exchangers, reactors, pipes, and valves in corrosive environments.
- Energy: Nuclear power plants, wind turbines, and solar energy systems.
- Marine Engineering: Offshore structures, shipbuilding, and equipment exposed to seawater.
- Industrial Manufacturing: Components requiring high durability and corrosion resistance, such as machinery parts and tools.
Manufacturing Process
The production of Titanium Grade 2 plates involves several key steps:
- Raw Material Sourcing: High-quality titanium sponge is sourced, ensuring purity and compliance with international standards.
- Melting and Refining: The titanium sponge is melted in a vacuum arc re-melting (VAR) furnace, followed by refining to remove impurities.
- Hot Rolling: The material is hot-rolled to achieve the desired thickness and dimensions.
- Cold Rolling and Annealing: Cold rolling is used for further thickness reduction, followed by annealing to relieve stresses and improve the material's mechanical properties.
- Cutting and Finishing: The plates are cut to size, followed by surface finishing to meet customer specifications, such as smoothness and flatness.
Quality Assurance
Baoji Haiyue New Metal Materials Co., Ltd. employs a rigorous quality management system to ensure that all Titanium Grade 2 plates meet the highest standards:
- Material Testing: Each batch is tested for composition, tensile strength, and other mechanical properties.
- Non-Destructive Testing (NDT): Techniques like ultrasonic and eddy current testing are used to detect any internal flaws.
- Surface Quality Inspection: All products undergo thorough visual inspections for surface defects, ensuring the plates meet the highest aesthetic and functional standards.
- Certifications: We hold ISO 9001:2015, AS9100D, and GJB9001C:2007 certifications, confirming our commitment to quality.
Packaging and Logistics
We understand the importance of secure and timely delivery:
- Packaging: Titanium Grade 2 plates are carefully packaged in wooden crates or custom-made boxes to prevent damage during transport.
- Logistics: We offer global shipping via air, sea, or land, ensuring fast and safe delivery to any location worldwide.
Customer Support
Our dedicated customer support team is always available to provide assistance:
- Technical Support: Our engineers are on hand to offer advice on material selection, processing, and applications.
- After-Sales Service: We offer timely support and follow-up to ensure the satisfaction of every customer.
Why Choose Us?
- Comprehensive Product Range: We offer a wide variety of titanium grades and sizes to meet your specific needs.
- Full-Process Production: From raw material sourcing to finished products, we control every aspect of production to ensure quality.
- Global Reach: Our products are shipped worldwide, with reliable support and service at every stage.
- Customization: We provide tailored solutions, including custom sizes, shapes, and grades of titanium.
- Fast Delivery: With a global logistics network, we ensure timely delivery to meet your project timelines.
- Reputation: Baoji Haiyue is a trusted name in the titanium industry, with a reputation for quality and reliability.
Development History
Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.
Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.
Achieved ISO9001:2015 certification, ensuring high-quality production standards.
Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.
Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.
Obtained AS9100D certification for aerospace industry compliance and advanced product quality.
Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.
Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.
Product Quality Management
Production and Processing
Workshop and Equipment
Packaging
Main Products
Applied Industries
Be used in a wide range of industries.
Electrolytic copper foil manufacturing industry
Hydrometallurgy industry
Sewage treatment industry
Cyclone electrolysis industry
Etching liquid electrolysis recovery industry
Electrolytic sodium hypochlorite industry
OEM Services
We offer comprehensive OEM services to suit the needs of various industries:
- Custom machining and fabrication
- Tailored sizes and finishes
- Bulk production and long-term contracts
- Technical consulting and material selection support
Frequently Asked Questions (FAQs)
Q: What is the difference between Titanium Grade 2 and other titanium grades?
A: Titanium Grade 2 is the most commonly used commercial-grade titanium, offering an excellent balance of strength, formability, and corrosion resistance. It is ideal for a wide range of applications in aerospace, medical devices, and chemical processing.
Q: Can Titanium Grade 2 plates be welded?
A: Yes, Titanium Grade 2 is easily weldable, though it requires proper techniques to prevent contamination. TIG welding is commonly used for welding titanium.
Q: What industries use Titanium Grade 2?
A: Industries such as aerospace, medical devices, chemical processing, and marine engineering commonly use Titanium Grade 2 due to its strength, corrosion resistance, and lightweight properties.
Contact Details
For more information or to request a quote, please get in touch with us:
- Email:Jolina@bjhyti.com
- Phone: +86-18392721678
