Gr5 Titanium Stud Bolt

1.Lightweight and strong for high-performance applications.
2.Superior corrosion resistance in extreme environments.
3.Precision threading ensures secure and reliable fastening.
4.High-temperature tolerance for demanding industrial uses.
5.Custom designs available to meet specific requirements.
Product Description

Gr5 Titanium Stud Bolt – High-Performance, Reliable, and Durable

Product Introduction

Gr5 Titanium Stud Bolts, made from titanium alloy, are an excellent choice for industries requiring high strength, corrosion resistance, and lightweight solutions. Also known as Ti-6Al-4V, this material features a combination of titanium, aluminum, and vanadium, making it one of the most versatile and durable fasteners in high-performance applications. Gr5 Titanium Stud Bolts are widely used in aerospace, medical devices, chemical processing, energy, and marine engineering industries, where superior strength-to-weight ratio and resistance to harsh environments are critical.

At Baoji Haiyue New Metal Materials Co., Ltd., we specialize in providing top-grade Gr5 Titanium Stud Bolts that meet rigorous quality standards and are available in a range of sizes and customization options to meet your specific needs.


Technical Specifications

The following tables provide detailed technical specifications for Gr5 Titanium Stud Bolts, including standards for the United States, Russia, and Japan.

Gr5 Titanium Stud Bolt Specifications (General)

Property Value
Material Titanium Alloy Ti-6Al-4V (Gr5)
Tensile Strength 900 - 1,100 MPa
Yield Strength 800 - 1,000 MPa
Elongation at Break 10%
Hardness (Rockwell B) 80 - 90
Density 4.43 g/cm³
Melting Point 1,668°C
Corrosion Resistance Excellent (marine and chemical environments)
Surface Treatment Polished, anodized, or sandblasted

Gr5 Titanium Stud Bolt Production Standards (USA, Russia, Japan)

Country/Region Standard Code Description
United States ASTM B348 ASTM B348 Standard Specification for Titanium and Titanium Alloy Bars and Billets.
Russia GOST 26447-85 GOST 26447 Specifications for Titanium and Titanium Alloy Bars for Aircraft Manufacturing.
Japan JIS H4600 JIS H4600 Titanium Alloys and Products for Aerospace Use.

Gr5 Titanium Stud Bolt Dimensions (Metric)

Size (mm) Thread Size Length (mm) Weight (kg)
M5 M5 x 0.8 20 0.008
M6 M6 x 1.0 25 0.015
M8 M8 x 1.25 30 0.022
M10 M10 x 1.5 40 0.035
M12 M12 x 1.75 50 0.050


M14 Titanium Wheel Nut M14 Titanium Wheel Nut M14 Titanium Wheel Nut M14 Titanium Wheel Nut
M14 Titanium Wheel Nut M14 Titanium Wheel Nut M14 Titanium Wheel Nut M14 Titanium Wheel Nut

Product Features (Key Features)

  • Superior Strength and Durability: Gr5 Titanium Stud Bolts are designed to withstand high stress, making them ideal for applications in extreme conditions.
  • Corrosion Resistance: Titanium is known for its resistance to corrosion in aggressive environments, including saltwater and harsh chemicals.
  • Lightweight: Titanium offers a superior strength-to-weight ratio compared to other metals like steel, making Gr5 bolts perfect for aerospace and automotive applications.
  • Biocompatibility: Non-reactive and safe for medical applications, Gr5 titanium bolts are often used in implants and surgical tools.
  • Customization: Available in various sizes and grades, Gr5 Titanium Stud Bolts can be customized to meet specific industry needs.
  • High Thermal Resistance: With a high melting point, these bolts perform well in high-temperature environments, such as in the energy and aerospace sectors.

Applications

Gr5 Titanium Stud Bolts are used across a variety of demanding industries:

  • Aerospace and Aviation: For aircraft components requiring lightweight and durable fasteners.
  • Medical Devices: Used in implants, surgical instruments, and prosthetics, where biocompatibility is essential.
  • Chemical Processing: Resistant to aggressive chemicals, making them suitable for reactors and pipelines.
  • Energy Sector: Ideal for use in nuclear power plants, wind turbines, and other renewable energy applications.
  • Marine Engineering: Performs well in salty environments, commonly used in offshore structures and shipbuilding.
  • Industrial Manufacturing: Utilized in machinery and heavy equipment due to its durability and strength.

Manufacturing Process

At Baoji Haiyue, our Gr5 Titanium Stud Bolts are manufactured using state-of-the-art facilities and advanced processing techniques:

  1. Material Selection: Only premium titanium alloy Ti-6Al-4V is used.
  2. Forging: We utilize high-quality forging presses to shape the bolts.
  3. CNC Machining: For precision, CNC machines are employed to achieve the exact dimensions.
  4. Surface Treatment: Each stud bolt undergoes polishing, anodizing, or sandblasting to ensure smooth, durable surfaces.
  5. Heat Treatment: The bolts are heat-treated to optimize strength and resistance to stress and corrosion.
  6. Quality Testing: Thorough inspection processes are followed, including ultrasonic and eddy current testing, to ensure compliance with international standards.

Quality Assurance

We adhere to stringent quality management systems (ISO 9001:2015, AS9100D) to ensure each Gr5 Titanium Stud Bolt meets global industry standards. All our products undergo:

  • Dimensional Inspection: To ensure precise fit and performance.
  • Tensile Testing: To verify strength and durability.
  • Corrosion Resistance Testing: To confirm the bolts can withstand harsh environments.
  • Surface Quality Checks: To ensure a smooth, high-quality finish.

Packaging and Logistics

We understand the importance of reliable delivery, especially for large-scale projects. Our Gr5 Titanium Stud Bolts are carefully packaged to prevent damage during transit, using materials such as bubble wrap, anti-static bags, and robust boxes. We offer flexible shipping options, including air freight and sea freight, ensuring timely delivery worldwide.

  • Packaging: Custom packaging options are available upon request.
  • Logistics: We work with trusted global logistics providers to ensure fast and safe delivery to your location.

Customer Support

Our customer service team is available to assist with any queries related to Gr5 Titanium Stud Bolts. Whether you need technical specifications, pricing details, or custom solutions, we are here to help. Contact us via:

  • Email: jolina@bjhyti.com
  • Phone: +86-18392721678
  • Online Support: Available through our website and e-commerce platforms.

Why Choose Us

  1. Complete Product Range: Baoji Haiyue offers a comprehensive range of titanium products, from raw materials to customized components.
  2. Full-Process Production: We handle everything in-house, ensuring quality control at every stage of production.
  3. Global Reach: Serving clients in North America, Europe, Asia-Pacific, and the Middle East.
  4. Customization: Tailored solutions for your specific requirements.
  5. Fast Delivery: With advanced logistics and a reliable supply chain, we offer prompt delivery to meet project deadlines.
  6. Excellent Reputation: Known for our customer-focused approach and superior product quality.
  7. Global After-Sales Service: Timely support and door-to-door service.

Development History


2010


Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.


2012

Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.


2014

Achieved ISO9001:2015 certification, ensuring high-quality production standards.


2016

Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.


2018

Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.


2020

Obtained AS9100D certification for aerospace industry compliance and advanced product quality.


2022

Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.


2024

Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.



Product Quality Management

Appearance and size inspection
Appearance and size inspection
Tensile test
Tensile test
Bending test
Bending test
Chemical composition analysis
Chemical composition analysis
Electrochemical performance test
Electrochemical performance test
Ultrasonic test
Ultrasonic test
Eddy current test
Eddy current test
Thickness test
Thickness test

Production and Processing

Titanium sponge raw materials
Titanium sponge raw materials
Titanium sponge processing and smelting
Titanium sponge processing and smelting
Titanium ingot forging
Titanium ingot forging
Machining
Machining
Manual grinding and polishing
Manual grinding and polishing
Manual testing
Manual testing

Workshop and Equipment

Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment
Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment


Packaging

Packaging

Packaging

Packaging

Packaging

Main Products

Titanium Anode
Titanium Anode
sinrer-metal-powder-filters
Sinrer-metal-powder-filters
Titanium Rod

Titanium Rod

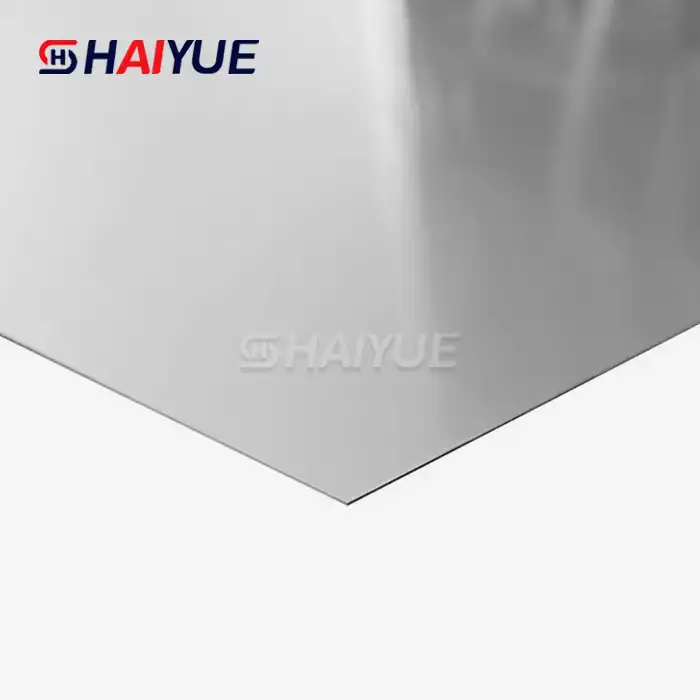

Titanium Plate
Titanium Plate
Titanium Elbow
Titanium Elbow

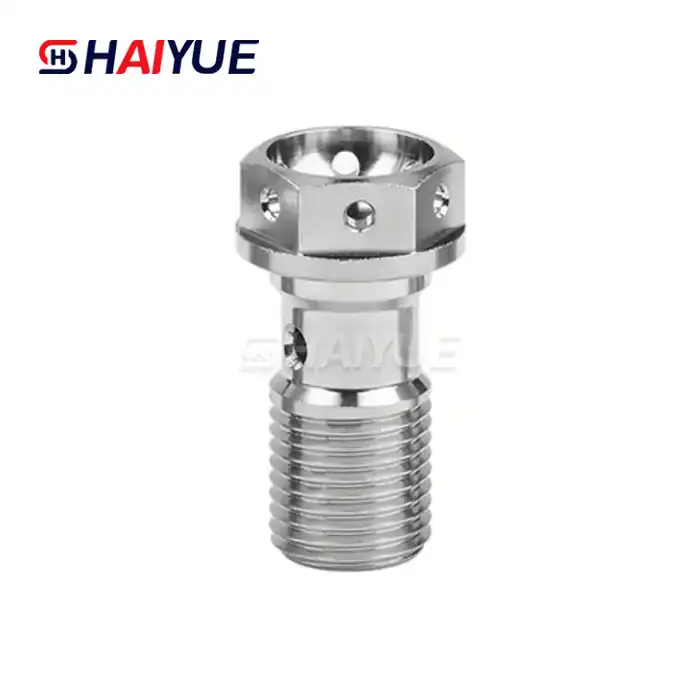

TItanium Screw
Titanium Screw

Applied Industries

Be used in a wide range of industries.



Electrolytic copper foil manufacturing industry

Electrolytic copper foil manufacturing industry

Hydrometallurgy industry

Hydrometallurgy industry

Sewage treatment industry

Sewage treatment industry

Cyclone electrolysis industry

Cyclone electrolysis industry

Etching liquid electrolysis recovery industry

Etching liquid electrolysis recovery industry

Electrolytic sodium hypochlorite industry

Electrolytic sodium hypochlorite industry

OEM Services

We offer full OEM services, providing customized Gr5 Titanium Stud Bolts based on your specifications. Our engineering team works closely with you to deliver products that match your exact requirements, whether in size, shape, or surface finish.


Frequently Asked Questions (FAQs)

Q: What industries use Gr5 Titanium Stud Bolts?
A: Industries like aerospace, medical devices, energy, marine, and chemical processing extensively use Gr5 Titanium Stud Bolts for their strength and corrosion resistance.

Q: Can you customize the size of Gr5 Titanium Stud Bolts?
A: Yes, we offer full customization options to meet your specific size and grade requirements.

Q: What certifications do your products have?
A: Our products are certified with ISO 9001:2015, AS9100D, and other relevant standards, ensuring quality and reliability.


Contact Us

For inquiries or to get a quote, please contact us:

We look forward to partnering with you to provide the best Gr5 Titanium Stud Bolts for your needs!
