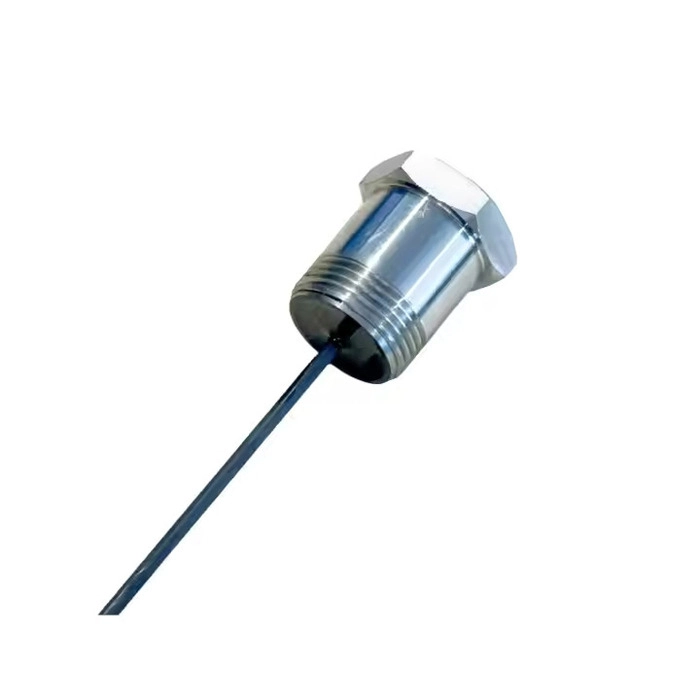

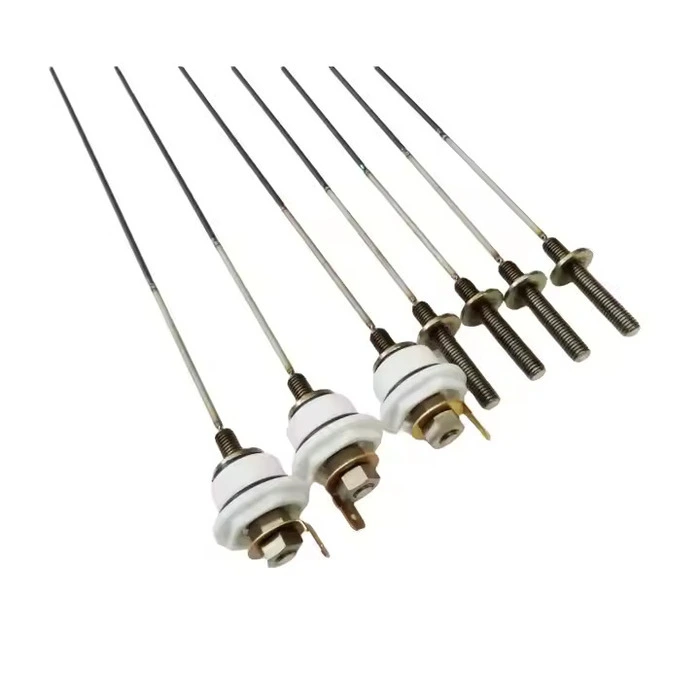

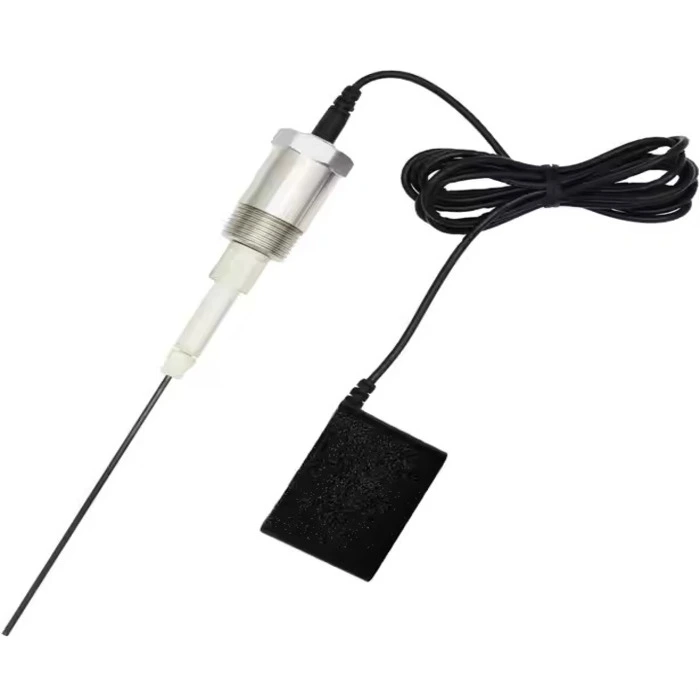

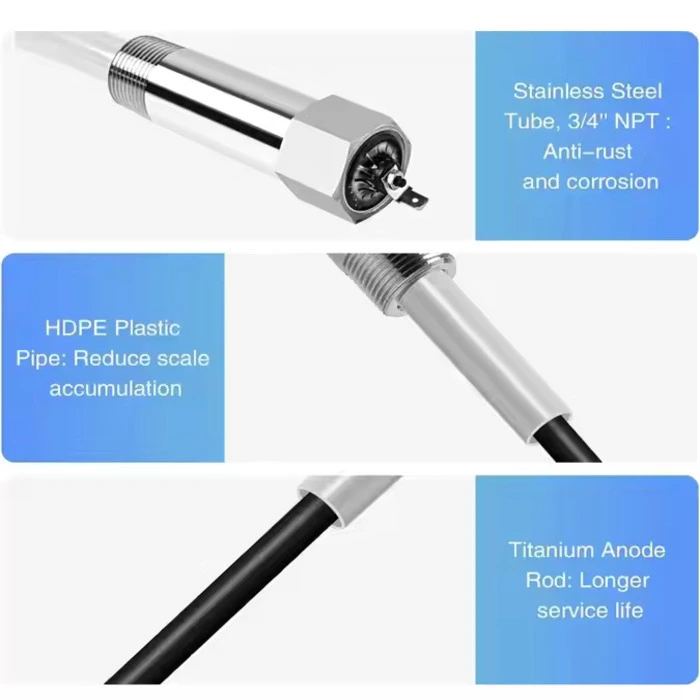

What Is Anode Wire for Water Heater Cathode Protection and How to Choose the Right One for Your Industry?

An Anode wire for water heater cathode protection is a specialized electrochemical component used in impressed current cathodic protection (ICCP) systems to prevent corrosion inside water heaters and hot water storage tanks. Water heaters are constantly exposed to high temperature water, dissolved oxygen, and mineral ions, which can accelerate internal rusting, scaling, and material degradation over time.

This anode wire is typically made from a flexible titanium substrate coated with Ru+Ir mixed metal oxides (Ru+Ir MMO). The coating provides excellent electrocatalytic stability, low resistance, and strong corrosion resistance in hot water environments. During operation, the anode wire delivers a controlled protective current that shifts the electrochemical potential of the tank surface, effectively preventing corrosion reactions from occurring.

Compared with traditional sacrificial anodes such as magnesium or aluminum rods, the Anode wire for water heater cathode protection offers significantly longer service life, more stable current output, and reduced maintenance requirements. It is suitable for both residential and industrial water heater systems.

When selecting the right product, factors such as tank volume, water temperature, conductivity, installation design, and required protection current should be carefully evaluated. Choosing the correct anode wire ensures maximum corrosion protection efficiency, improved system safety, and extended equipment lifespan.

Features of Anode Wire for Water Heater Cathode Protection

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Ultra-Long and Reliable Service Life

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)





Anode wire for water heater cathode protection can be fully customized according to industrial requirements:

​​​​​​​​​​​​​​

• Custom wire diameter (1–5 mm)
• Flexible single-core or multi-core designs
• Titanium Grade 1 / Grade 2 options
• Ru+Ir MMO coating customization
• Coating loading: 6–20 g/m²
• Adjustable wire length for tank size
• High-temperature resistant insulation options
• Custom terminal connectors and fittings
• Coiled or straight wire configurations
• Enhanced corrosion-resistant surface treatment
• OEM branding and private labeling
• Custom current output design
• Extended lifespan coating optimization
• Compatibility with different water heater models
• Engineering support for system integration

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we  specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export is a professional supplier of Anode wire for water heater cathode protection solutions based in Baoji, China. With strong titanium manufacturing resources and advanced Ru+Ir coating technology, we deliver high-performance electrochemical protection products for global customers.

Our production process includes strict titanium wire selection, precision coating application, thermal sintering, and full performance testing to ensure stable quality.

Key advantages:

• Advanced Ru+Ir MMO coating technology
• High corrosion resistance performance
• Long service life design
• Stable cathodic protection output
• OEM/ODM customization capability
• Competitive factory pricing
• Fast international delivery
• Strict quality inspection system
• Professional engineering support
• Reliable after-sales service

We provide durable and efficient corrosion protection solutions for water heater systems worldwide.





Titanium Anode Purchase Guide: A Comprehensive Guide

Selecting the right Anode wire for water heater cathode protection is essential to ensure reliable corrosion prevention, stable system performance, and long service life of water heating equipment. Because water heaters operate in continuously hot and electrolyte-rich environments, the anode must provide consistent current output and strong resistance to oxidation and scaling.

First, evaluate the water heater specifications, including tank volume, material type (steel or stainless steel), and internal structure. These factors determine the required protection current and wire configuration. Larger tanks generally require longer or multi-core anode wire systems to ensure uniform protection coverage.

Second, assess water quality conditions such as conductivity, hardness, pH level, and dissolved oxygen content. These parameters directly influence electrochemical reaction efficiency and help determine the appropriate Ru+Ir coating loading and current density design.

Third, choose the correct wire structure. Flexible anode wire is suitable for compact installations, while coiled or reinforced designs are better for large storage tanks and industrial systems. Proper insulation and connection terminals should also be considered to ensure safe and stable operation.

Finally, always select a manufacturer with proven Ru+Ir coating technology, strict quality control, and customization capability. Request technical specifications, installation guidance, and expected service life data before purchase. A well-designed anode wire system significantly improves corrosion protection efficiency, reduces maintenance costs, and extends the lifespan of water heater equipment.





What Is Anode wire for water heater cathode protection?









An Anode wire for water heater cathode protection is an insoluble electrode used in impressed current cathodic protection systems to prevent internal corrosion in water heaters. It is made from a titanium wire coated with Ru+Ir mixed metal oxides, which provide excellent conductivity and chemical stability.

During operation, the wire generates a low-level protective current that prevents rust formation inside the tank. It is widely used in residential, commercial, and industrial water heating systems. Compared with traditional sacrificial anodes, it offers longer lifespan, stable performance, and reduced maintenance requirements.

Be used in a wide range of industries.



Water Treatment Industry

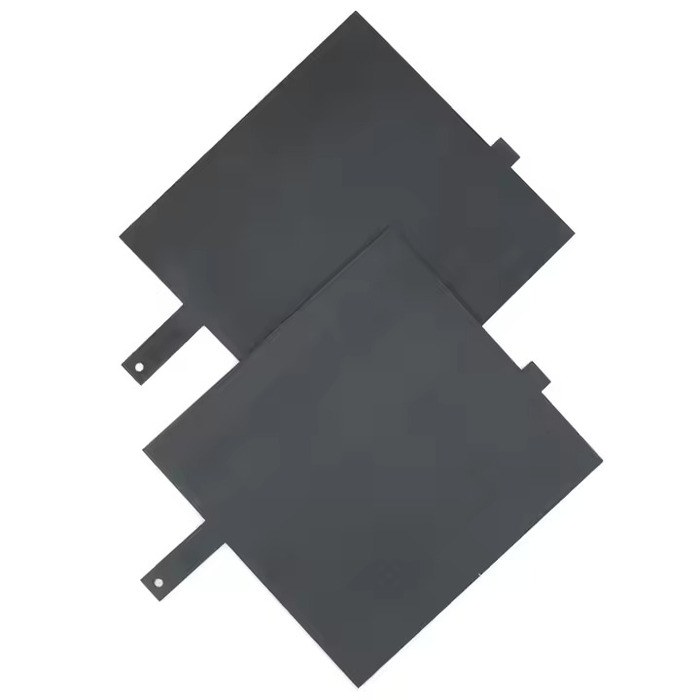

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

​​​​​​​

• Confirm seawater chloride concentration and salinity level
• Define electrodialysis system capacity and output requirement
• Select proper electrode shape (mesh, plate, rod, tubular)
• Determine working current density and voltage range
• Choose coating loading based on required service life
• Verify stack design and electrode spacing requirements
• Confirm connection type and installation method
• Request technical drawings and system optimization support
• Work with experienced supplier for seawater-specific engineering solutions



FAQ

Q1: Why is Ru+Ir coated titanium used in seawater desalination?
It provides excellent chlorine resistance and stable electrochemical performance.

Q2: What is the lifespan in seawater environments?
Typically 10,000–60,000 hours depending on conditions.

Q3: Can it handle high salinity seawater?
Yes, it is specifically designed for high-chloride environments.

Q4: What electrode shapes are available?
Mesh, plate, rod, tubular, and ribbon types.

Q5: Is it suitable for electrodialysis systems?
Yes, it is optimized for ED and EDR systems.

Q6: Can it be customized?
Yes, full OEM/ODM customization is available.

Q7: Does it reduce energy consumption?
Yes, it lowers cell voltage and improves efficiency.

Q8: What industries use it most?
Seawater desalination, marine engineering, and water treatment industries.



Our Factory

Titanium Anode for Water Heater | High Efficiency | Long Service Life | Eco-Friendly

Production site

State-of-the-art manufacturing for  titanium anodes, precision coating and quality control.

Choseing titanium substrate	Substrate Cutting	Sandblasting	Pickling
Laser Cutting Configure Precious Metal	Coating	Sintering	Packaging

Workshop

Precision machining and coating workshop for titanium anodes.

Titanium anode coating workshop	Thermal decomposition sintering furnace workshop	Titanium mesh anode production area	Pickling/surface treatment process
Pickling/surface treatment process	Quality inspection workshop	Worker operation photos	Panoramic view of a clean production line

Quality inspection

Rigorous testing for coating adhesion, electrochemical performance, and durability.

Dimension Inspection	Coating Thickness Testing	Coating Adhesion Testing	Microstructure Analysis
Conductivity Testing	Corrosion Resistance Testing	Bond Strength Testing	Final Inspection & Packaging

Packaging

Professional packaging to prevent damage and corrosion during transportation.

Certifications

International certifications ensuring quality and environmental compliance.

ISO 9001:2015

ISO 14001:2015

CE Marking

RoHS Compliant
