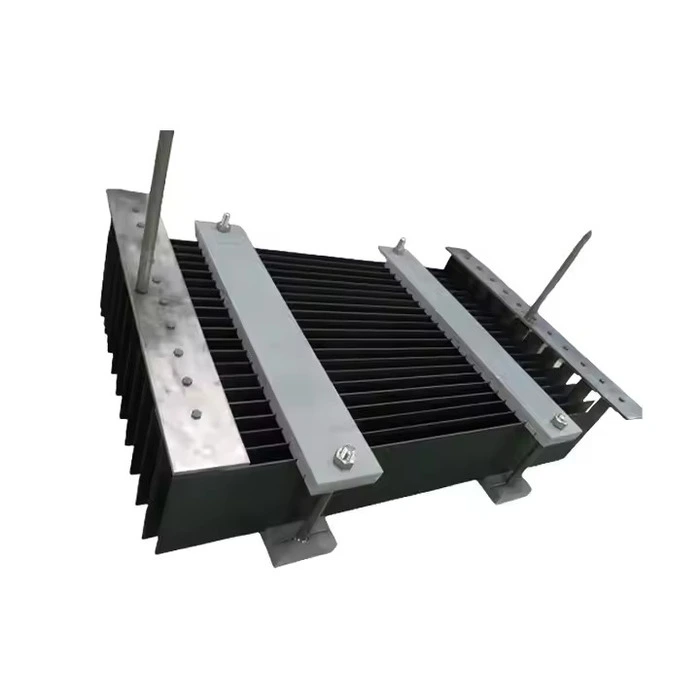

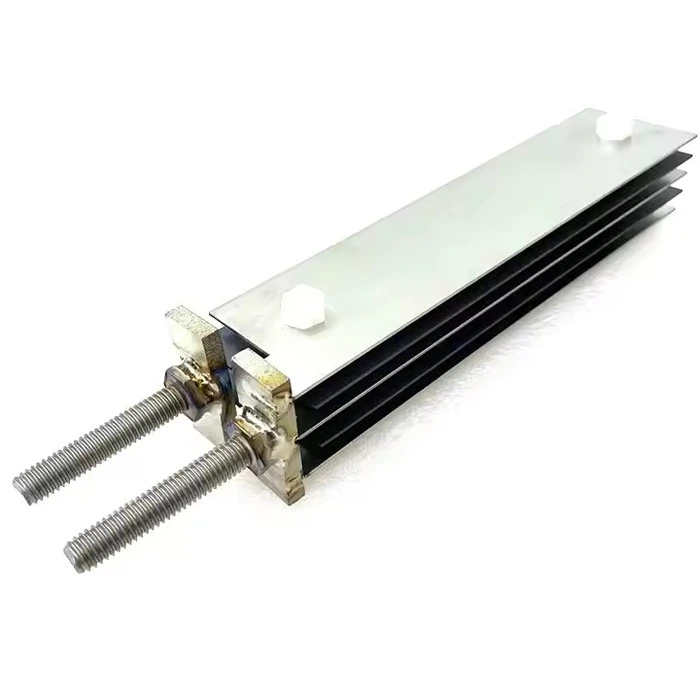

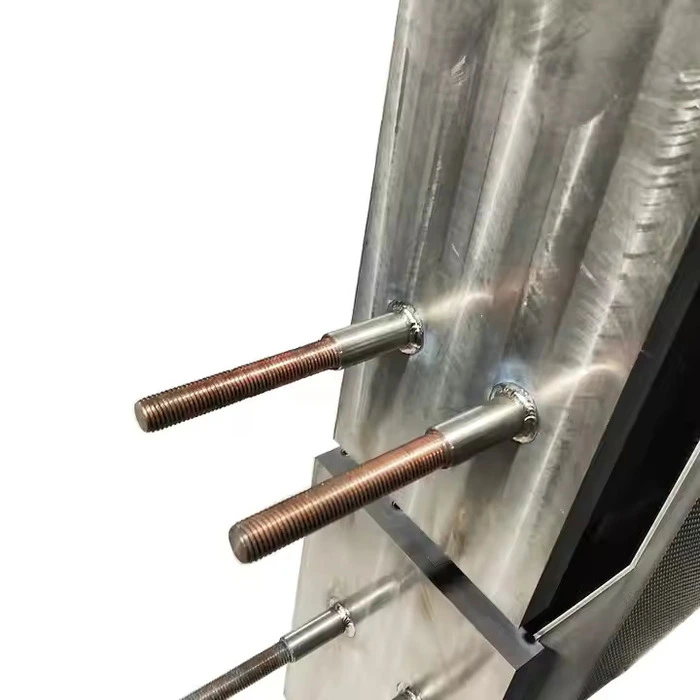

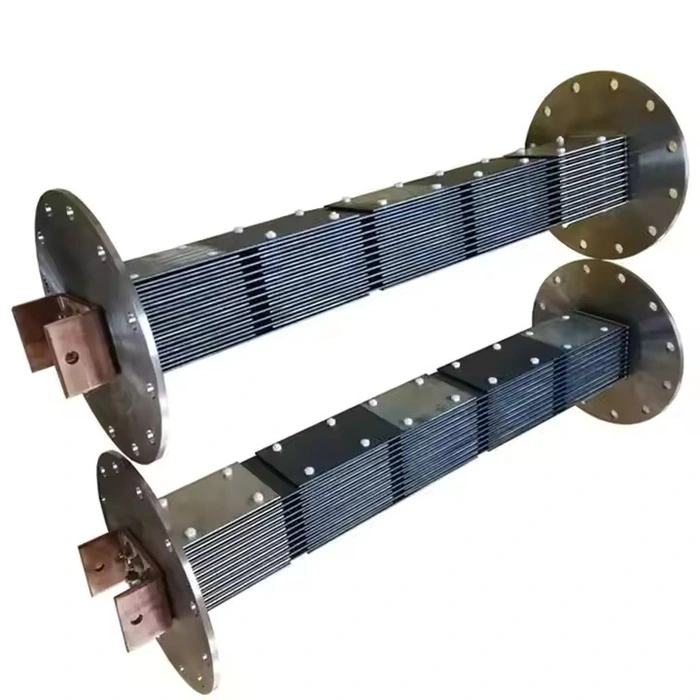

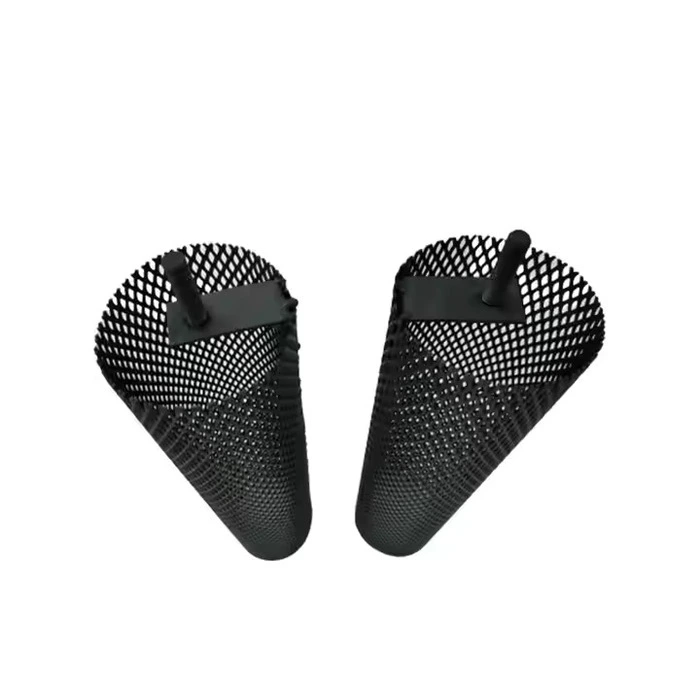

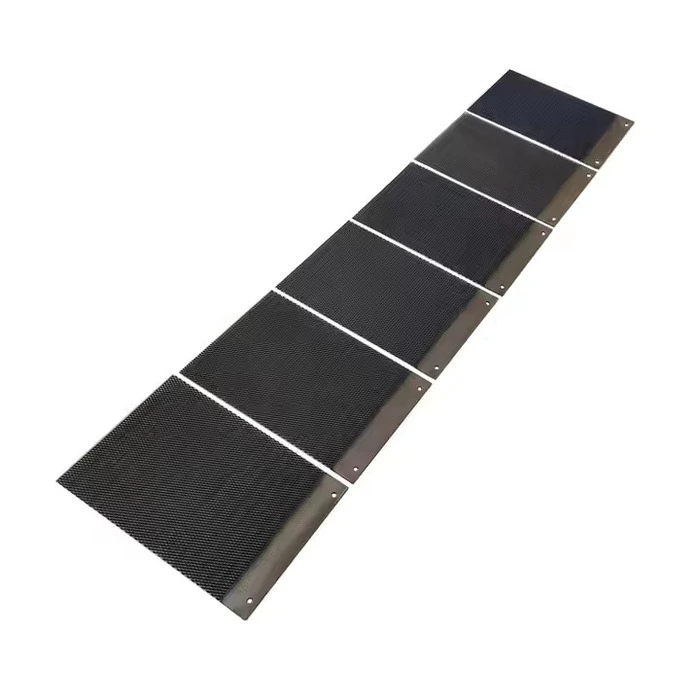

Electrolytic aluminum foil titanium anode

Substrate: ASTM Grade 1 Titanium
Coating: Ir-Ta mixed metal oxide
Current Density: 100–500 A/m²
Temperature Range: -10°C to 85°C
Titanium Purity: ≥99.6%
Design Life: ≥20 years
Chloride Tolerance: ≤50 ppm Cl⁻
Application: Electrolytic aluminum foil production lines

Send Inquiry

Download

Product Description

What Is Electrolytic aluminum foil titanium anode and How to Choose the Right One for Your Industry?

Electrolytic aluminum foil titanium anode is a high-performance insoluble electrode used in industrial aluminum foil electrolysis systems. It is manufactured from high-purity titanium substrate coated with mixed metal oxide (MMO), such as Ru–Ir–Ta, providing excellent corrosion resistance, stable electrochemical activity, and long service life under high-current density conditions.

In aluminum foil electrolysis, the titanium anode plays a critical role in ensuring uniform aluminum deposition, stable electrolyte balance, and consistent foil quality. Compared with traditional consumable anodes, electrolytic aluminum foil titanium anodes offer higher efficiency, lower energy consumption, and improved production stability, making them essential in modern electronic material manufacturing.

Selecting the right electrolytic aluminum foil titanium anode depends on current density, electrolyte composition, operating temperature, and production scale. High-end production lines require precise coating formulation and optimized anode geometry to ensure stable output, reduced maintenance, and high-quality foil surface consistency.

Features of Electrolytic aluminum foil titanium anode

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Ultra-Long and Reliable Service Life

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)

Electrolytic aluminum foil titanium anode can be fully customized according to industrial requirements:

HY Ti-Ni Import & Export provides full customization for electrolytic aluminum foil titanium anode according to industrial requirements:

Anode Size: customized according to electrolytic cell design
Base Material: Gr1 / Gr2 high-purity titanium substrate
Coating Type: Ru–Ir–Ta mixed metal oxide system
Coating Thickness: adjustable for performance and lifespan
Shape Options: plate, mesh, rod, tubular, or special structure
Current Density Range: low, medium, and high load applications
Service Life: 5–10+ years depending on operating conditions
Operating Voltage: optimized for energy efficiency
Connection Type: welded or bolted industrial terminals
OEM/ODM Service: customized production based on drawings

Each electrolytic aluminum foil titanium anode is engineered for stable performance, high efficiency, and long-term industrial reliability.

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export, located in Baoji High-tech Development Zone, is a professional manufacturer of electrolytic aluminum foil titanium anode systems for industrial electrochemical applications. We specialize in advanced MMO coating technology and precision electrode engineering.

Every anode is produced under strict quality control from titanium substrate preparation to final performance testing, ensuring consistent stability and long service life.

With strong OEM/ODM capability and global export experience, HY Ti-Ni Import & Export delivers reliable and cost-effective electrolytic aluminum foil titanium anode solutions for aluminum foil production industries worldwide.

Titanium Anode Purchase Guide: A Comprehensive Guide

When selecting an electrolytic aluminum foil titanium anode, the first step is to analyze the production process, including electrolyte composition, current density, and operating temperature. These parameters directly affect deposition quality and system efficiency.

Next, determine production capacity and electrolytic cell size to define anode dimensions and layout. Then select appropriate MMO coating type and loading based on required lifespan and energy consumption.

Finally, ensure compatibility with rectifier systems and electrolyte circulation design. HY Ti-Ni Import & Export provides engineering support to help customers choose the most suitable electrolytic aluminum foil titanium anode for stable production, high efficiency, and reduced operating cost.

Purchase Guide

1. What is a Electrolytic aluminum foil titanium anode?
2. Main Technical Parameters of a Electrolytic aluminum foil titanium anode.
3. Specifications of a Electrolytic aluminum foil titanium anode.
4. Current Output of Standard Electrolytic aluminum foil titanium anode.
5. Applications of a Electrolytic aluminum foil titanium anode.
6. How to Purchase the Suitable Electrolytic aluminum foil titanium anode?
7. FAQ
8. Our Factory

Products Introduction

What Is Electrolytic aluminum foil titanium anode?

Electrolytic aluminum foil titanium anode is a dimensionally stable anode used in aluminum foil electrolysis systems. It is coated with MMO catalytic layers that ensure efficient electrochemical reactions and stable current distribution.

It is widely used in high-end aluminum foil production due to its long service life, energy efficiency, and stable performance.

Main Technical Parameters

Parameter	Typical Range
Base Material	Titanium (Gr1 / Gr2)
Coating Type	Ru–Ir–Ta Mixed Metal Oxide
Current Density	100 – 2000 A/m²
Operating Voltage	1.0 – 5.0 V
Electrolyte Type	Aluminum salt electrolyte system
Temperature Range	20°C – 70°C
Design Life	5 – 10+ Years
Electrical Resistance	Low resistance design
Installation Type	Electrolytic cell system

Specifications

Type	Structure	Application
MMO Plate Anode	Flat plate design	Aluminum foil electrolysis
MMO Mesh Anode	Expanded mesh structure	High-efficiency systems
MMO Rod Anode	Cylindrical design	Uniform deposition systems
MMO Tubular Anode	Hollow structure	Large-scale production lines
Custom Anode System	OEM design	Industrial applications

Cerrent output of Standard

Type	Current Output (mA/m²)	Application Condition
Standard Plate Anode	100 – 300	Standard production
High Efficiency Anode	300 – 800	High-speed electrolysis
Industrial Grade Anode	500 – 1200	Large-scale lines
Precision System Anode	200 – 600	High-end foil production
Customized System	Up to 1500+	Heavy-duty operation

Applications of MMO Titanium Anode

Be used in a wide range of industries.

Water Treatment Industry

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

To select the correct electrolytic aluminum foil titanium anode, customers should provide detailed process parameters such as electrolyte type, current density, production scale, and operating temperature. These factors directly determine system performance.

Next, define production capacity and cell structure to determine anode size and configuration. Then select appropriate MMO coating formulation and loading based on lifespan and energy efficiency requirements.

HY Ti-Ni Import & Export provides technical consultation to ensure each electrolytic aluminum foil titanium anode system is optimized for stable performance, high efficiency, and reduced production cost.

FAQ

Q1: What is the main function of electrolytic aluminum foil titanium anode?
It enables stable electrochemical deposition in aluminum foil production systems.

Q2: What is its service life?
Typically 5–10+ years depending on operating conditions.

Q3: Can it replace traditional anodes?
Yes, it is an efficient and eco-friendly alternative.

Q4: Can it be customized?
Yes, size, coating, and structure can be fully customized.

Q5: Does it improve production efficiency?
Yes, it reduces energy consumption and improves foil quality.

Our Factory

Titanium Anode | High Efficiency | Long Service Life | Eco-Friendly

Production site

State-of-the-art manufacturing for titanium anodes, precision coating and quality control.

Choseing titanium substrate	Substrate Cutting	Sandblasting	Pickling
Laser Cutting Configure Precious Metal	Coating	Sintering	Packaging

Workshop

Precision machining and coating workshop for titanium anodes.

Titanium anode coating workshop	Thermal decomposition sintering furnace workshop	Titanium mesh anode production area	Pickling/surface treatment process
Pickling/surface treatment process	Quality inspection workshop	Worker operation photos	Panoramic view of a clean production line

Quality inspection

Rigorous testing for coating adhesion, electrochemical performance, and durability.

Dimension Inspection	Coating Thickness Testing	Coating Adhesion Testing	Microstructure Analysis
Conductivity Testing	Corrosion Resistance Testing	Bond Strength Testing	Final Inspection & Packaging
