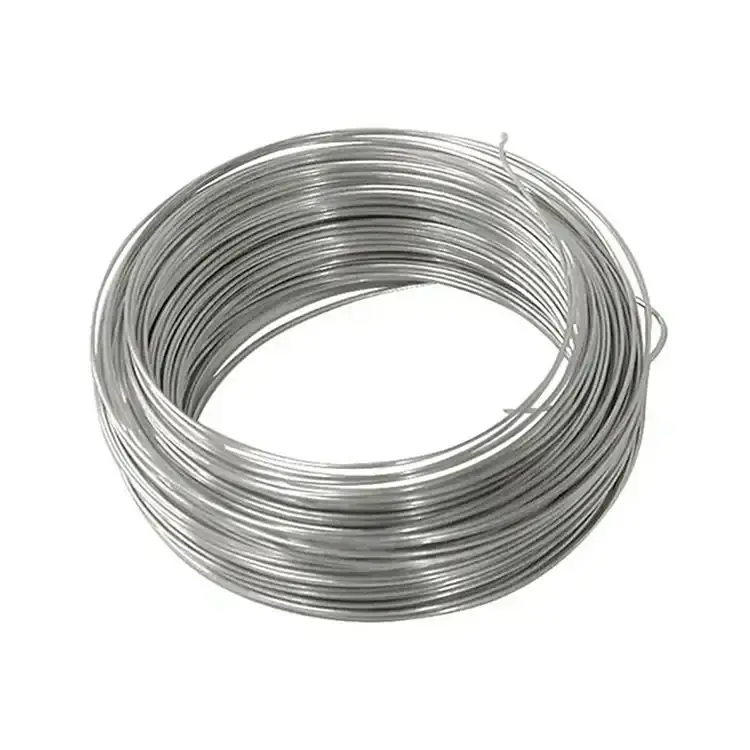

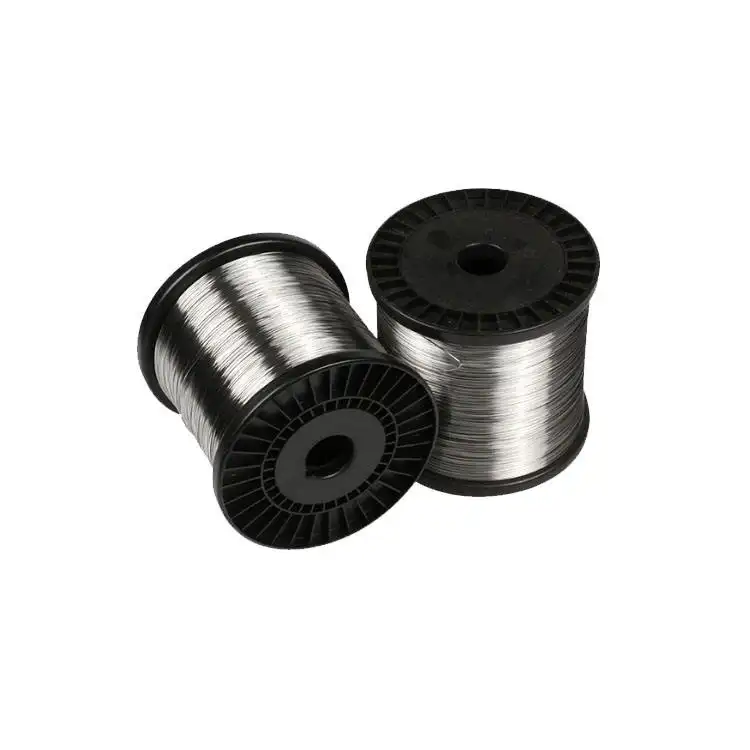

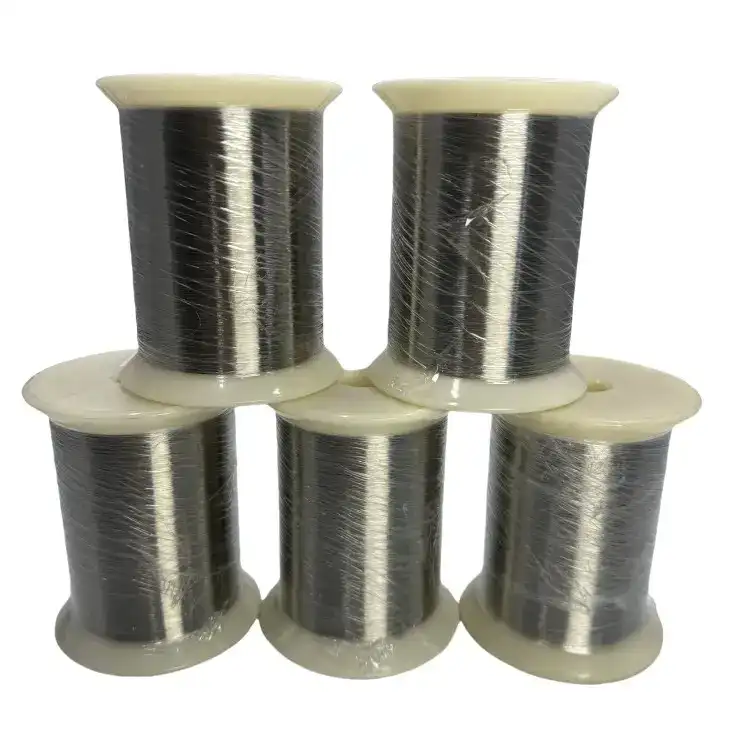

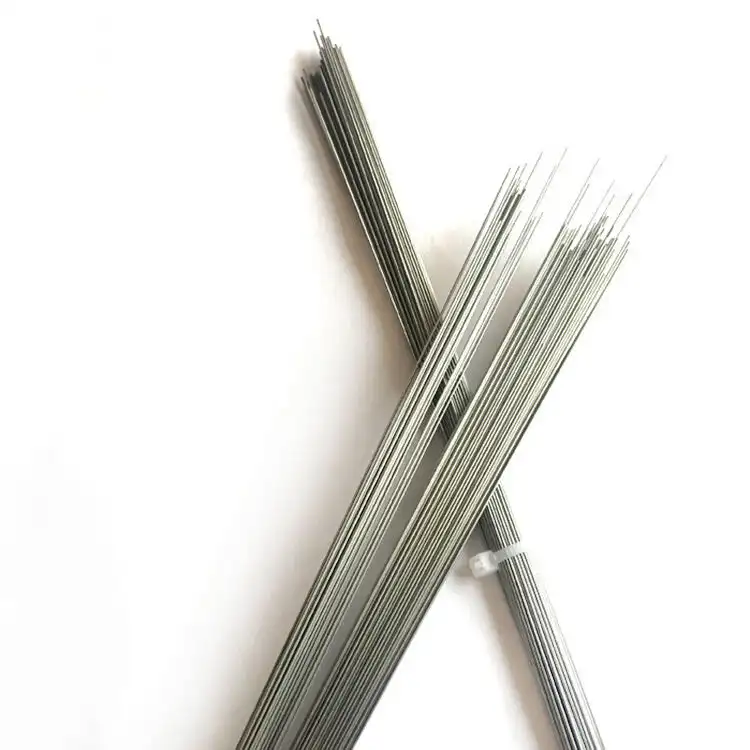

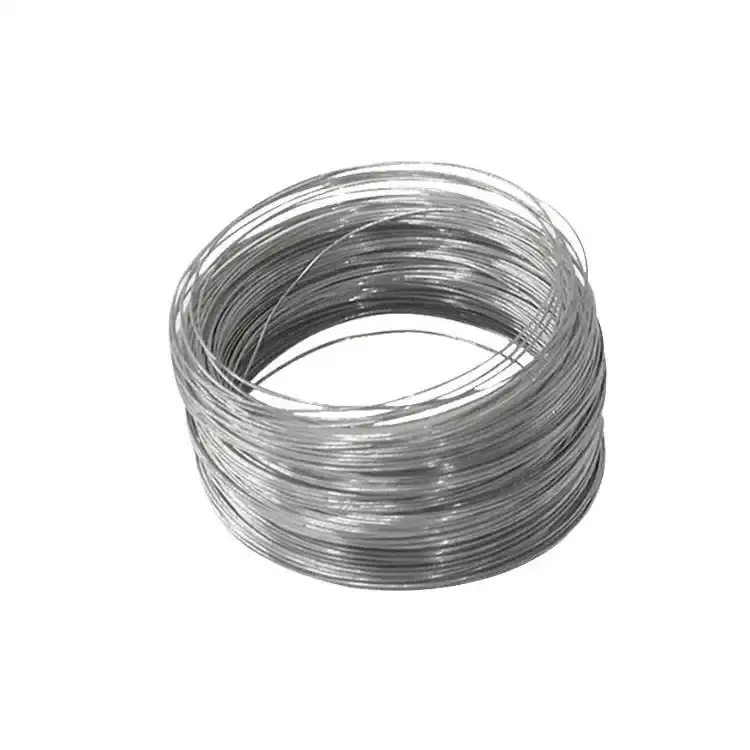

Titanium Alloy Wire Product Details

1. Product Introduction

Titanium Alloy Wire is a high-performance material renowned for its exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. Manufactured using premium titanium alloys, this wire is designed to meet the rigorous demands of industries such as aerospace, medical devices, chemical processing, and energy. Baoji Haiyue New Metal Materials Co., Ltd., a leader in titanium and non-ferrous metals, ensures that every spool of Titanium Alloy Wire delivers unmatched reliability and precision.

2. Technical Specifications

The Titanium Alloy Wire is available in various grades, standards, and dimensions to meet diverse application requirements. Below are the detailed specifications:

General Specifications

Property	Value
Diameter Range	0.1 mm to 6.0 mm
Length	Customizable (coils or cut lengths)
Surface Finish	Polished, pickled, or bright
Tolerance	±0.02 mm

Production Grades

Standard	Grade	Description
ASTM	Grade 5 (Ti-6Al-4V)	High strength and lightweight
ASTM	Grade 9 (Ti-3Al-2.5V)	Excellent corrosion resistance
JIS	JIS 60	Superior ductility
Russian	VT6, VT1-0	High-performance alloys

Mechanical Properties

Property	Value
Tensile Strength	895 MPa (Grade 5)
Yield Strength	825 MPa (Grade 5)
Elongation	≥15%
Hardness	330 HV (Grade 5)

3. Product Features

High Strength-to-Weight Ratio: Ideal for lightweight yet durable applications.
Corrosion Resistance: Outstanding performance in harsh chemical and marine environments.
Biocompatibility: Perfect for medical implants and devices.
Customizable: Available in various grades, diameters, and finishes.
Long Lifespan: Engineered for durability and reliability in demanding conditions.

4. Applications

Titanium Alloy Wire finds applications in a wide range of industries, including:

Aerospace: For aircraft components, springs, and fasteners.
Medical: In surgical instruments, dental braces, and implants.
Chemical Processing: For corrosive environments like reactors and piping.
Energy: Used in wind turbines, nuclear power plants, and solar energy systems.
Marine: For saltwater-resistant cables and fasteners.
Industrial Manufacturing: Ideal for tools, welding rods, and 3D printing.

5. Manufacturing Process

Our Titanium Alloy Wire is produced through a meticulous process:

Material Selection: High-quality titanium alloy billets are sourced.
Melting: Using VAR (Vacuum Arc Remelting) furnaces to ensure purity.
Drawing: Precision wire drawing machines achieve the desired diameter.
Annealing: Heat treatment for enhanced flexibility and strength.
Surface Treatment: Pickling or polishing to ensure a smooth finish.
Quality Inspection: Rigorous testing for dimensional accuracy and mechanical properties.

6. Quality Assurance

Baoji Haiyue adheres to strict quality standards:

Certified to ISO9001:2015, AS9100D, and GJB9001C:2007.
Comprehensive testing including ultrasonic, eddy current, and spectral analysis.
Adherence to ASTM, JIS, and Russian standards.

7. Packaging and Logistics

Packaging: Spools, coils, or custom packaging to prevent damage during transit.
Shipping: Reliable global logistics network ensures on-time delivery.
Documentation: Includes certificates of compliance and detailed product specifications.
