Product Overview

The Titanium Wheel Stud M14 is precision-engineered from premium Grade 5 titanium alloy (Ti-6Al-4V), offering exceptional strength, lightweight performance, and superior corrosion resistance. Designed for motorsport, racing, and high-performance street applications, this M14 titanium stud is an ideal upgrade from traditional steel wheel studs. It delivers enhanced safety, reduced unsprung weight, and long-lasting durability under extreme conditions.

Perfectly compatible with a wide range of vehicles using M14 stud patterns, it supports frequent wheel changes and high torque loads without deformation or thread fatigue. Available for immediate sale with fast delivery options.

Key Specifications

Item	Specification
Product Name	Titanium Wheel Stud M14
Material	Ti-6Al-4V (Grade 5 Titanium Alloy)
Thread Size	M14 x 1.5 or M14 x 1.25
Stud Length Options	60 mm / 65 mm / 70 mm / 75 mm / 80 mm
Thread Length	Customizable (Standard: 30–40 mm threaded portion)
Head Style	Bullet Nose / Flat End (optional)
Mechanical Strength	Tensile ≥ 950 MPa, Yield ≥ 880 MPa
Surface Finish	Natural Titanium / Polished / Burnt Blue / PVD Coating
Weight Advantage	45% lighter than steel equivalents
Temperature Resistance	Up to 600°C without strength loss
Corrosion Resistance	Excellent in saltwater and chemical environments
Compatibility	BMW, Mercedes, Audi, VW, Porsche, Tesla, and more
Application Use	Racing, Street Performance, Track Days, Custom Builds
MOQ	No minimum for in-stock items
Delivery Time	1–3 working days (in-stock)

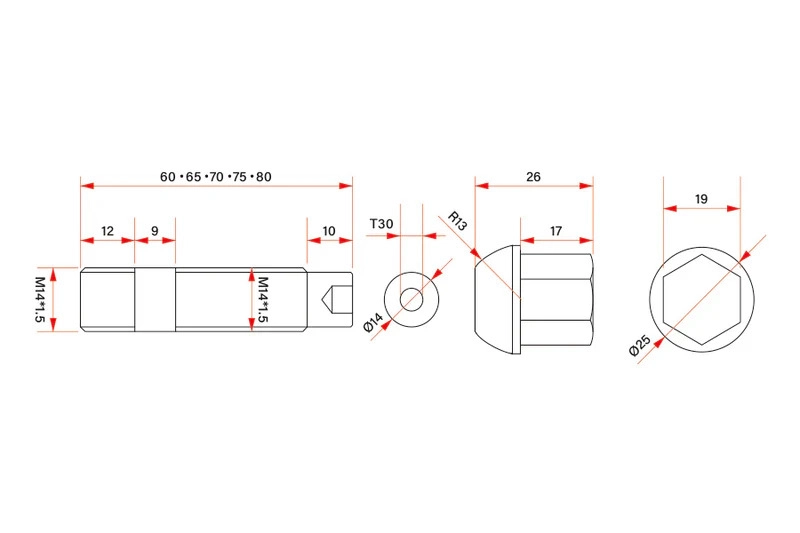

Ti Wheel Studs drawing

Titanium Wheel Stud and Lug Nut Size Combinations

Stud Size (Thread × Pitch)	Stud Length (mm)	Compatible Lug Nut Thread	Typical Application
M12×1.25	60 / 70 / 80 / 90 / 100	M12×1.25	Nissan, Subaru, aftermarket racing wheels
M12×1.5	60 / 70 / 80 / 90 / 100	M12×1.5	Toyota, Honda, BMW (older models)
M14×1.25	60 / 70 / 80 / 90 / 100	M14×1.25	BMW, Mini Cooper, aftermarket applications
M14×1.5	60 / 70 / 80 / 90 / 100	M14×1.5	Audi, Volkswagen, Mercedes-Benz, Porsche
1/2"-20 UNF	60 / 70 / 80 / 90 / 100	1/2"-20 UNF	Ford, Dodge, some American muscle cars

Product Features of Titanium Wheel Bolt and Nut Kits

Lightweight Construction
Made from Grade 5 titanium (Ti-6Al-4V), these bolts offer up to 45% weight reduction compared to standard steel bolts, effectively reducing unsprung mass and improving vehicle handling and acceleration.
High Strength and Durability
With tensile strength exceeding 950 MPa, titanium wheel bolts provide excellent load-bearing capacity and long service life, even under high-stress driving conditions.
Superior Corrosion Resistance
Naturally resistant to rust, salt, and chemicals, ideal for use in coastal, wet, or snowy environments without degradation over time.
Excellent Heat Resistance
Performs reliably under extreme temperatures generated by high-speed braking, making them suitable for racing and track use.
Precision CNC Machining
Manufactured with high precision to ensure perfect thread engagement, fitment, and uniform torque distribution, reducing the risk of wheel loosening or thread damage.
Anti-Galling Thread Design
Titanium's inherent galling risk is minimized through specialized surface treatments and threading accuracy, ensuring smooth and safe installation and removal.
Attractive Appearance
Available in raw titanium, anodized colors (blue, gold, black, purple), or burnt finish for a visually striking look, enhancing the appearance of any performance vehicle.
Customizable Options
Offers multiple thread sizes (M12, M14, etc.), thread pitches (1.25 / 1.5), bolt lengths, head shapes (hex, spline), and seating types (cone, ball) to fit a wide variety of vehicles.
Environmentally Friendly Material
100% recyclable titanium with no toxic coatings, aligning with sustainable automotive trends.

Ultra-Lightweight

Reduces rotational mass and improves overall vehicle dynamics

High Strength

Capable of withstanding high clamping forces and torque

Corrosion Resistance

Will not rust or corrode, even in aggressive environments

Aesthetic Appeal

Available in multiple colors for visual customization

Heat Tolerance

Maintains performance under high brake temperatures

Application Areas

Primary Application Areas
Racing and Track Vehicles
Ideal for drift, circuit, rally, time attack, and drag racing, where repeated high-stress disassembly and reinstallation occur.
Modified Street and Performance Cars
Used by enthusiasts upgrading to lightweight wheels or wide-body kits, or who require extended studs to accommodate wheel spacers.
Compatibility Notes
Available in M12×1.25, M12×1.5, M14×1.25, M14×1.5, and 1/2"-20 UNF thread sizes.
Compatible with corresponding open-end or closed-end titanium lug nuts.
Custom lengths and coatings (e.g., burnt blue, black anodized) available for both functional and aesthetic customization.
Luxury and Sports Cars
Common on vehicles such as BMW, Porsche, Audi, Mercedes-Benz, Lexus, Nissan GTR, and Subaru WRX STI, offering enhanced performance and aesthetic appeal.
Aftermarket Wheel and Brake Conversions
Supports large brake kits or custom wheel offsets requiring longer or stronger wheel studs.
Off-Road and All-Terrain Vehicles
Suitable for lifted trucks and 4x4 applications requiring rugged, anti-corrosion fasteners in wet or harsh environments.
OEM Replacement or Lightweight Upgrades
Replaces standard steel wheel studs to reduce unsprung weight and eliminate corrosion concerns, enhancing responsiveness and longevity.

OEM and Custom Services

We offer full-scale OEM production for Titanium Wheel Bolt and Nut Kits, tailored to your brand requirements. This includes logo engraving, customized packaging, and part labeling to support private-label and distributor programs.

Custom Dimensions and Specifications
Titanium wheel bolts can be customized in thread size (e.g., M12x1.25, M14x1.5, 1/2"-20), length, head shape (hex, spline, 12-point), and seat type (cone, ball, flat) to fit specific vehicle models or aftermarket wheels.
Surface Treatment Options
Choose from multiple finishes such as raw polished titanium, PVD coating, anodizing (blue, gold, purple, black), or burned rainbow for unique aesthetics and added surface protection.
Material Grade Flexibility
While standard models use premium Gr5 (Ti-6Al-4V) titanium alloy, we also offer Gr2 or other titanium grades based on your application needs and cost targets.
Thread Design Customization
We provide metric or inch thread customization, including left-hand threading, anti-galling treatments, and fine/coarse pitch to match specific hub or wheel designs.
Batch and Prototyping Services
Whether you need small-volume prototyping for new projects or large-scale mass production for wholesale supply, we support flexible MOQs and fast lead times.
Packaging and Branding Solutions
Custom packaging solutions include branded boxes, blister packs, sets with matching washers or nuts, and multilingual labels for global distribution.
Technical Support and Co-Engineering
Our engineering team can collaborate with you to develop custom bolt designs for unique applications, including motorsport, EVs, or military use, offering CAD drawings and strength analysis upon request.
Global Shipping and Logistics Support
We assist with international freight coordination, compliance with local import standards, and fast air/sea delivery to meet your supply chain needs.

To provide you with an accurate quotation, please kindly fill out the details below and submit the form.

The more complete the information, the faster and more precise our response will be.

Please include the following:

Product Name: __________________________

Lug Nut Size: _______

Lug Stud Size:_______

Order Quantity: _______ pcs

Surface Treatment: __________________________

Material: __________________________

Required Delivery Time: __________________________

Shipping Destination: __________________________ (Please include country and postal code)

Drawing File: Please email your design (JPEG, PNG, PDF, or Word format) with a minimum resolution of 300 DPI to ensure clarity.

Contact Details

For more information or to request a quote, feel free to contact us:

Email:Jolina@bjhyti.com
Phone: +86-18392721678

Ready to upgrade your wheels with high-quality polished lug nuts? Contact us today to discuss your needs and receive a customized quote!

Product Quality Management

Appearance and size inspection

Tensile test

Bending test

Chemical composition analysis

Electrochemical performance test

Ultrasonic test

Eddy current test

Thickness test

Production and Processing

Titanium sponge raw materials

Titanium sponge processing and smelting

Titanium ingot forging

Machining

Manual grinding and polishing

Manual testing

Workshop and Equipment

Packaging and Delivery

Standard packaging includes foam tray and export carton
Custom retail packaging options available
Lead time is 5 to 10 days for stock sizes and 10 to 20 days for custom sizes
Shipping available via DHL FedEx UPS air freight or sea freight
Global export support with full documentation
