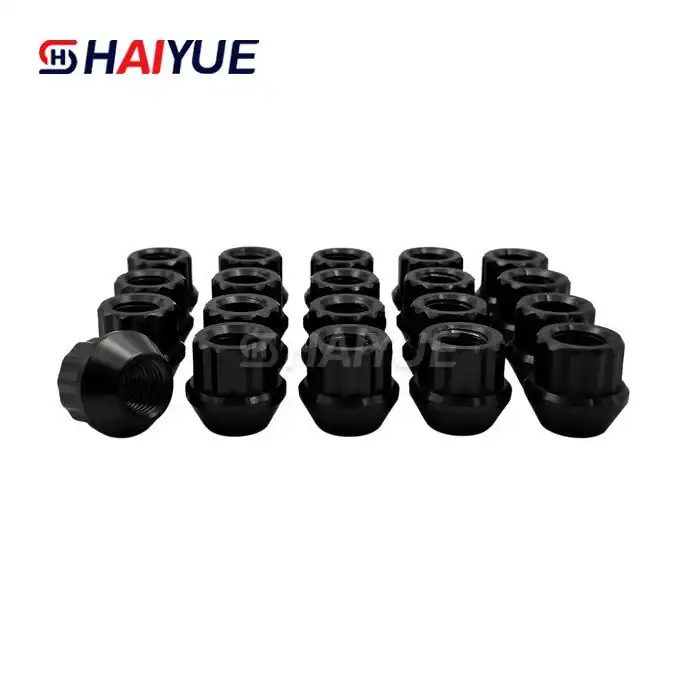

Ti6Al4V Gr5 Titanium Wheel Nut

Product Overview

The Ti6Al4V Gr5 Titanium Wheel Nut is a premium-grade automotive fastener engineered for lightweight performance, exceptional strength, and superior corrosion resistance. Manufactured from aerospace-grade Ti6Al4V (Grade 5 titanium alloy), this wheel nut is widely used in motorsports, luxury vehicles, and high-performance applications. It offers a reliable solution for reducing unsprung weight while ensuring maximum safety and durability under extreme driving conditions.

---

Key Specifications

• Product Name: Ti6Al4V Gr5 Titanium Wheel Nut

• Material: Titanium Alloy Grade 5 (Ti6Al4V)

• Thread Sizes:

  • M12x1.25

  • M12x1.5

  • M14x1.25

  • M14x1.5

  • M14x2.0 (optional)

• Hex Sizes: 17mm / 19mm / 21mm (based on design)

• Seat Types: 60° Tapered (Conical), Ball Seat, Flat Seat (customizable)

• Head Type: Hexagon, Dome, or Spline Drive

• Length: 28mm – 50mm (customized available)

• Tensile Strength: ≥ 950 MPa

• Manufacturing Process: CNC Machining or Hot Forging

• Surface Finish Options:

  • Polished Raw Titanium

  • Burnt Blue

  • Anodized (Gold, Purple, Black, Rainbow)

  • PVD Coated Finishes

• Weight: Approx. 18g – 28g per nut (depending on size/design)

• Standards Compliance: ISO 898-2 / DIN 74361 or customer-specific drawings

---

Product Features

• Grade 5 Titanium Composition: Provides excellent tensile strength, fatigue resistance, and long-term performance compared to steel or aluminum

• Lightweight Design: Reduces rotational mass and unsprung weight for improved vehicle handling, acceleration, and braking

• Corrosion and Heat Resistance: Suitable for use in harsh environments including salty roads, track heat, and wet conditions without rusting

• Precision Engineering: CNC-machined threads and seats ensure perfect fitment, secure torque application, and consistent locking force

• Customizable Options: Offered in a wide range of thread types, seat styles, finishes, and lengths to fit various car brands and aftermarket wheels

• Aesthetic Appearance: Available in attractive anodized or heat-treated colors to enhance vehicle style and branding

• High-End Application: Ideal for sports cars, racing teams, aftermarket wheel upgrades, and OEM lightweight vehicle platforms

• Environmentally Friendly: Non-toxic, recyclable material with high durability, reducing long-term replacement waste

Application Areas

1. Racing Cars
Widely used in professional motorsport environments including circuit racing, time attack, drag racing, and drift competitions. The high strength and low weight help reduce unsprung mass and increase wheel responsiveness.

2. Performance Street Vehicles
Ideal for high-performance street cars that demand both visual appeal and technical performance. Titanium lug nuts provide enhanced aesthetics while maintaining structural integrity under daily and spirited driving.

3. Aftermarket Wheels
Perfect for forged and lightweight alloy wheels which benefit from the reduced weight of titanium hardware. Ensures precise fitment and complements premium wheel finishes.

4. Custom Builds and Tuning Projects
Popular among car modification enthusiasts for custom cars, show builds, and tuning upgrades. Titanium’s customizable finishes allow unique styling that stands out at car meets and expos.

5. Supercars and Exotic Vehicles
Trusted by owners of high-end brands such as Ferrari, Lamborghini, Porsche, McLaren, and more. Titanium lug nuts ensure that both performance and durability match the level of these vehicles.

6. Off-Road and Rally Vehicles
Used in demanding off-road conditions where strength, corrosion resistance, and reliability are critical. Titanium’s lightweight nature also benefits vehicles tackling extreme terrain and rapid wheel changes.

7. Brake-Intensive Driving Conditions
Suitable for use in vehicles with high-performance brake systems, where titanium’s heat resistance ensures structural stability even under extreme temperatures caused by repeated hard braking.

OEM and Custom Services

Custom thread pitch and seat type
Available in raw titanium or anodized colors
Laser engraved logos or part numbers
Retail-ready packaging with private label
Titanium wheel stud kits available upon request

Modification and customization physical display：

Grooved closed-end automobile wheel nuts：M12x1.5 M12x1.25 M14x1.5 M14x1.25--45mm

Side hole hollow car wheel nuts：M12x1.5 M14x1.5 M14x1.25--45mm

Non-slip knurled hollow car wheel nut：M12x1.5 M14x1.5 M14x1.25--45mm

Hexagon socket wrench for automobile wheel nuts：M12x1.5 M14x1.5 M14x1.25--35/45/50/60mm

Eccentric gasket automobile wheel nuts:M12x1.5 M12x1.25 M14x1.5 M14x1.25--35mm

Ball pad closed hexagon anti-theft car wheel nuts:M12x1.5--35mm

Spherical gasket closed knurled anti-theft automobile wheel nuts:M12x1.5-48mm

Spherical anti-theft closed-end automobile wheel nuts:M12x1.5-35mm

Spherical knurled non-moving gasket automobile wheel nut：M12x1.5-35mm



Spherical open automobile wheel nuts:M12x1.5-45mm

Spherical open semi-hollow automobile wheel nuts:M12x1.5--35mm

Spherical open hollow automobile wheel nuts:M12x1.5--35mm

Spherical Washer Automobile Wheel Nuts:M12x1.5--45mm

Spherical modified car wheel nuts:M14X1.5--45mm

External plum anti-theft car wheel nuts:M14x1.5 M14x1.25 M12x1.5--35mm

Duckbill ball anti-theft car wheel nut：M14x1.5 M12x1.5 M12x1.25--35mm

Conical hexagonal open automobile wheel nut：M12x1.25--27 37 45mm

Customized according to the following drawings：

---

Technical Specifications

Property	Value
Tensile Strength	≥ 895 MPa (Gr5)
Yield Strength	≥ 828 MPa (Gr5)
Density	4.43 g/cm³
Hardness	36 HRC (Approx.)
Thread Tolerance	6g/6H ISO Metric or UNF/UNC

APPLICATION	NUT SEAT TYPE	NUT SIZE	NUT WEIGHT (g)	THREAD PITCH
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P

---

Dimensional Capabilities

Thread Sizes: M12,M14, 1/2"-20 UNF

Length Options: 25-60mm, customized sizes available

Seat Type: cone seat、ball seat、tuner、Flat

Type:Ordinary titanium nut、Titanium nut with lock and anti-theft function

---

To provide you with an accurate quotation, please kindly fill out the details below and submit the form.
The more complete the information, the faster and more precise our response will be.

Please include the following:

Product Name: __________________________

Dimensions: Inner Diameter _______ × Outer Diameter _______ × height _______

Order Quantity: _______ pcs

Surface Treatment: __________________________

Material: __________________________

Required Delivery Time: __________________________

Shipping Destination: __________________________ (Please include country and postal code)

Drawing File: Please email your design (JPEG, PNG, PDF, or Word format) with a minimum resolution of 300 DPI to ensure clarity.



Product Quality Management

Production and Processing

Workshop and Equipment

Packaging and Delivery

Standard packaging includes foam tray and export carton
Custom retail packaging options available
Lead time is 5 to 10 days for stock sizes and 10 to 20 days for custom sizes
Shipping available via DHL FedEx UPS air freight or sea freight
Global export support with full documentation

Main Products

FAQ

Q1: What industries use Ti6Al4V Gr5 Titanium Wheel Nuts?
A1: Primarily used in aerospace, automotive, medical, energy, and marine industries due to its high strength, corrosion resistance, and light weight.

Q2: How does Ti6Al4V Gr5 compare to other titanium alloys?
A2: Ti6Al4V Gr5 is one of the most commonly used titanium alloys, offering an excellent balance of strength, weight, and corrosion resistance. It's highly durable in extreme environments.

Q3: Are Ti6Al4V Gr5 Wheel Nuts suitable for high-temperature applications?
A3: Yes, Ti6Al4V Gr5 is resistant to temperatures up to 400°C (752°F), making it suitable for high-performance applications in aerospace and automotive sectors.

Q4: Can I get custom sizes for the Ti6Al4V Gr5 Titanium Wheel Nut?
A4: Yes, we offer customized solutions to meet your specific requirements, whether it's size, shape, or surface finish.

12. Contact Details

If you're interested in purchasing Ti6Al4V Gr5 Titanium Wheel Nuts or need more information, please reach out to us:

• Email:Jolina@bjhyti.com
• Phone: +86-18392721678

Get in touch with us today for a quote or further details. Experience superior quality and service that drives success across industries!
