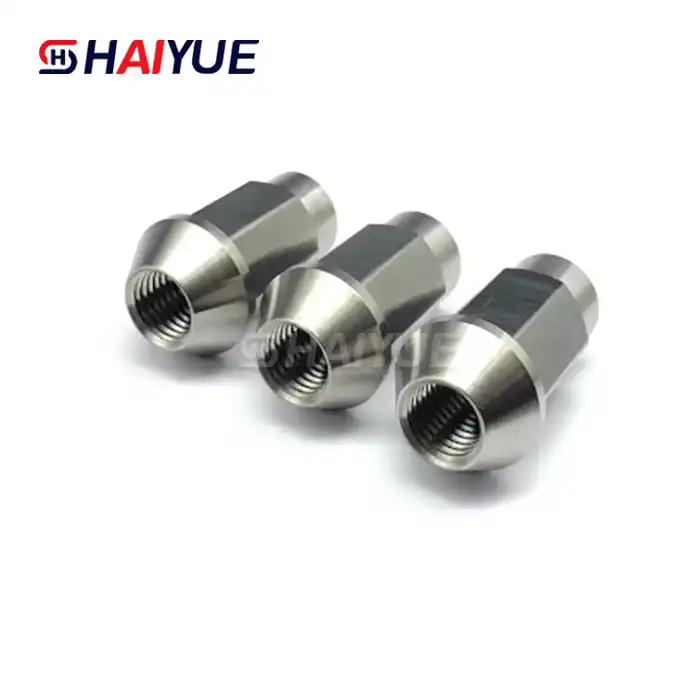

M14x1.5 Gr5 Titanium Lug Nut

Product Overview

The M14x1.5 Gr5 Titanium Lug Nut is a high-performance wheel fastener manufactured from aerospace-grade Grade 5 titanium alloy (Ti-6Al-4V). Designed for racing, performance, and luxury vehicles, this lug nut combines lightweight efficiency, extreme tensile strength, and outstanding corrosion resistance. Its M14x1.5 thread pitch is compatible with a wide range of European, Japanese, and custom vehicles. With CNC machining and customizable finishes, it is ideal for applications where precision, durability, and appearance are critical.

---

Key Specifications

• Thread Size: M14 x 1.5

• Material: Titanium Alloy Grade 5 (Ti-6Al-4V)

• Seat Type: 60° Tapered (Conical) / Ball Seat / Flat Seat (optional)

• Hex Size: 17mm / 19mm / 21mm (customizable)

• Overall Length: 28mm / 32mm / 35mm / 40mm / 45mm / custom

• Tensile Strength: ≥ 950 MPa

• Hardness: ≥ HRC 35

• Weight: Approx. 22–26g per piece

• Surface Finish Options:

  • Burnt Blue

  • Natural Polished Titanium

  • Anodized Black / Gold / Rainbow / Custom Colors

• Production Method: CNC Machined from solid titanium bar

• Applicable Standards: ISO 898-2, DIN, JIS, ANSI (as required)

---

Product Features

• High Strength-to-Weight Ratio: Titanium Gr5 offers nearly the strength of steel at 40% less weight, enhancing wheel performance

• Precision Engineering: Each lug nut is CNC-machined for accurate thread engagement, perfect fit, and safe torque application

• Corrosion & Rust Resistant: Excellent performance in harsh environments including rain, snow, salt, and off-road conditions

• Heat Resistance: Maintains integrity under high temperatures from intense braking, making it ideal for track use

• Aesthetic Customization: Offers attractive finishes such as burnt blue and rainbow, enhancing the visual appeal of your wheels

• Durable & Long-Lasting: With excellent fatigue resistance and wear durability, these lug nuts outlast standard steel nuts

• Environmentally Friendly: Titanium is recyclable and contributes to sustainable vehicle part choices

• Ideal for Performance & Luxury Vehicles: Especially suitable for sports cars, racing builds, and exotic brands like BMW, Mercedes, Audi, Tesla, and more

Application Areas

1. Racing Cars
Widely used in professional motorsport environments including circuit racing, time attack, drag racing, and drift competitions. The high strength and low weight help reduce unsprung mass and increase wheel responsiveness.

2. Performance Street Vehicles
Ideal for high-performance street cars that demand both visual appeal and technical performance. Titanium lug nuts provide enhanced aesthetics while maintaining structural integrity under daily and spirited driving.

3. Aftermarket Wheels
Perfect for forged and lightweight alloy wheels which benefit from the reduced weight of titanium hardware. Ensures precise fitment and complements premium wheel finishes.

4. Custom Builds and Tuning Projects
Popular among car modification enthusiasts for custom cars, show builds, and tuning upgrades. Titanium’s customizable finishes allow unique styling that stands out at car meets and expos.

5. Supercars and Exotic Vehicles
Trusted by owners of high-end brands such as Ferrari, Lamborghini, Porsche, McLaren, and more. Titanium lug nuts ensure that both performance and durability match the level of these vehicles.

6. Off-Road and Rally Vehicles
Used in demanding off-road conditions where strength, corrosion resistance, and reliability are critical. Titanium’s lightweight nature also benefits vehicles tackling extreme terrain and rapid wheel changes.

7. Brake-Intensive Driving Conditions
Suitable for use in vehicles with high-performance brake systems, where titanium’s heat resistance ensures structural stability even under extreme temperatures caused by repeated hard braking.

OEM and Custom Services

Custom thread pitch and seat type
Available in raw titanium or anodized colors
Laser engraved logos or part numbers
Retail-ready packaging with private label
Titanium wheel stud kits available upon request

Modification and customization physical display：

Grooved closed-end automobile wheel nuts：M12x1.5 M12x1.25 M14x1.5 M14x1.25--45mm

Side hole hollow car wheel nuts：M12x1.5 M14x1.5 M14x1.25--45mm

Non-slip knurled hollow car wheel nut：M12x1.5 M14x1.5 M14x1.25--45mm

Hexagon socket wrench for automobile wheel nuts：M12x1.5 M14x1.5 M14x1.25--35/45/50/60mm

Eccentric gasket automobile wheel nuts:M12x1.5 M12x1.25 M14x1.5 M14x1.25--35mm

Ball pad closed hexagon anti-theft car wheel nuts:M12x1.5--35mm

Spherical gasket closed knurled anti-theft automobile wheel nuts:M12x1.5-48mm

Spherical anti-theft closed-end automobile wheel nuts:M12x1.5-35mm

Spherical knurled non-moving gasket automobile wheel nut：M12x1.5-35mm



Spherical open automobile wheel nuts:M12x1.5-45mm

Spherical open semi-hollow automobile wheel nuts:M12x1.5--35mm

Spherical open hollow automobile wheel nuts:M12x1.5--35mm

Spherical Washer Automobile Wheel Nuts:M12x1.5--45mm

Spherical modified car wheel nuts:M14X1.5--45mm

External plum anti-theft car wheel nuts:M14x1.5 M14x1.25 M12x1.5--35mm

Duckbill ball anti-theft car wheel nut：M14x1.5 M12x1.5 M12x1.25--35mm

Conical hexagonal open automobile wheel nut：M12x1.25--27 37 45mm

Customized according to the following drawings：

---

Technical Specifications

Property	Value
Tensile Strength	≥ 895 MPa (Gr5)
Yield Strength	≥ 828 MPa (Gr5)
Density	4.43 g/cm³
Hardness	36 HRC (Approx.)
Thread Tolerance	6g/6H ISO Metric or UNF/UNC

APPLICATION	NUT SEAT TYPE	NUT SIZE	NUT WEIGHT (g)	THREAD PITCH
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P

---

Dimensional Capabilities

Thread Sizes: M12,M14, 1/2"-20 UNF

Length Options: 25-60mm, customized sizes available

Seat Type: cone seat、ball seat、tuner、Flat

Type:Ordinary titanium nut、Titanium nut with lock and anti-theft function

---

To provide you with an accurate quotation, please kindly fill out the details below and submit the form.
The more complete the information, the faster and more precise our response will be.

Please include the following:

Product Name: __________________________

Dimensions: Inner Diameter _______ × Outer Diameter _______ × height _______

Order Quantity: _______ pcs

Surface Treatment: __________________________

Material: __________________________

Required Delivery Time: __________________________

Shipping Destination: __________________________ (Please include country and postal code)

Drawing File: Please email your design (JPEG, PNG, PDF, or Word format) with a minimum resolution of 300 DPI to ensure clarity.



Product Quality Management

Production and Processing

Workshop and Equipment

Packaging and Delivery

Standard packaging includes foam tray and export carton
Custom retail packaging options available
Lead time is 5 to 10 days for stock sizes and 10 to 20 days for custom sizes
Shipping available via DHL FedEx UPS air freight or sea freight
Global export support with full documentation

Main Products

FAQ

Q1: What is the weight of the M14x1.5 Gr5 Titanium Lug Nut compared to steel?

A1: Titanium is approximately 40-60% lighter than steel, making these lug nuts an excellent choice for weight-sensitive applications.

Q2: Can these lug nuts be used in marine environments?

A2: Yes, the M14x1.5 Gr5 Titanium Lug Nut is highly resistant to corrosion, including saltwater corrosion, making it ideal for marine applications.

Q3: Do you offer customized sizes?

A3: Yes, we offer customization services for specific sizes, coatings, and finishes to meet your exact requirements.

Q4: What industries do you serve?

A4: We supply industries such as aerospace, automotive, medical devices, chemical processing, energy, and marine engineering.
