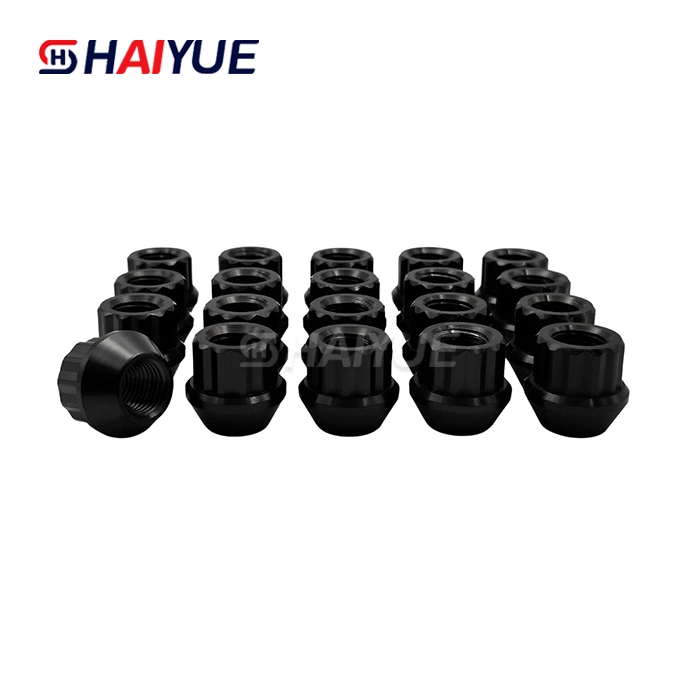

Discount Open-Ended Titanium Lug Nut

Product Overview

The Discount Open-Ended Titanium Lug Nut is a high-strength, lightweight wheel fastener designed for motorsport and performance-driven applications at an affordable price. Manufactured from Grade 5 titanium (Ti-6Al-4V), this open-ended lug nut provides excellent thread engagement, heat resistance, and long-term durability. The open-end design allows compatibility with extended wheel studs and is ideal for race cars or vehicles that require frequent wheel changes. Offered at competitive factory-direct pricing, it is a perfect balance of performance, value, and customization.

---

Key Specifications

Thread Size Options: M12x1.25, M12x1.5, M14x1.5, or custom

Design Type: Open-ended lug nut (through-hole)

Material: Titanium Grade 5 (Ti-6Al-4V)

Seat Type: 60° Tapered / Ball Seat / Flat Seat

Hex Drive Size: 17mm / 19mm / 21mm (customizable)

Overall Length: 30mm / 35mm / 40mm or upon request

Weight: Approx. 18g–24g per piece

Surface Finishes:

Burnt Blue

Natural Titanium

Anodized Gold / Black / Rainbow

Tensile Strength: ≥ 950 MPa

Production Process: CNC machined from solid titanium billet

Standard Compliance: ISO, DIN, JIS standards available

---

Product Features

Open-End Design: Allows use with extended or racing wheel studs, simplifies installation and removal

Cost-Effective Titanium Option: Factory-discounted pricing without compromising performance

Ultra-Lightweight: Reduces unsprung weight for better vehicle dynamics and fuel efficiency

CNC Precision: Accurate threading and seat profiles ensure secure fitment and smooth torque application

Superior Strength: Grade 5 titanium resists deformation and cracking under high loads

Corrosion & Heat Resistant: Performs in extreme weather and high-temperature environments

Customizable Aesthetics: Multiple finish options available to match wheel or vehicle color themes

Motorsport Ready: Built for track use, drift, drag, and rally where durability and speed matter

Environmentally Friendly: Recyclable and long-lasting for sustainable automotive use

Application Areas

1. Racing Cars
Widely used in professional motorsport environments including circuit racing, time attack, drag racing, and drift competitions. The high strength and low weight help reduce unsprung mass and increase wheel responsiveness.

2. Performance Street Vehicles
Ideal for high-performance street cars that demand both visual appeal and technical performance. Titanium lug nuts provide enhanced aesthetics while maintaining structural integrity under daily and spirited driving.

3. Aftermarket Wheels
Perfect for forged and lightweight alloy wheels which benefit from the reduced weight of titanium hardware. Ensures precise fitment and complements premium wheel finishes.

4. Custom Builds and Tuning Projects
Popular among car modification enthusiasts for custom cars, show builds, and tuning upgrades. Titanium’s customizable finishes allow unique styling that stands out at car meets and expos.

5. Supercars and Exotic Vehicles
Trusted by owners of high-end brands such as Ferrari, Lamborghini, Porsche, McLaren, and more. Titanium lug nuts ensure that both performance and durability match the level of these vehicles.

6. Off-Road and Rally Vehicles
Used in demanding off-road conditions where strength, corrosion resistance, and reliability are critical. Titanium’s lightweight nature also benefits vehicles tackling extreme terrain and rapid wheel changes.

7. Brake-Intensive Driving Conditions
Suitable for use in vehicles with high-performance brake systems, where titanium’s heat resistance ensures structural stability even under extreme temperatures caused by repeated hard braking.

OEM and Custom Services

Custom thread pitch and seat type
Available in raw titanium or anodized colors
Laser engraved logos or part numbers
Retail-ready packaging with private label
Titanium wheel stud kits available upon request

Modification and customization physical display：

Grooved closed-end automobile wheel nuts：M12x1.5 M12x1.25 M14x1.5 M14x1.25--45mm

Side hole hollow car wheel nuts：M12x1.5 M14x1.5 M14x1.25--45mm

Non-slip knurled hollow car wheel nut：M12x1.5 M14x1.5 M14x1.25--45mm

Hexagon socket wrench for automobile wheel nuts：M12x1.5 M14x1.5 M14x1.25--35/45/50/60mm

Eccentric gasket automobile wheel nuts:M12x1.5 M12x1.25 M14x1.5 M14x1.25--35mm

Ball pad closed hexagon anti-theft car wheel nuts:M12x1.5--35mm

Spherical gasket closed knurled anti-theft automobile wheel nuts:M12x1.5-48mm

Spherical anti-theft closed-end automobile wheel nuts:M12x1.5-35mm

Spherical knurled non-moving gasket automobile wheel nut：M12x1.5-35mm



Spherical open automobile wheel nuts:M12x1.5-45mm

Spherical open semi-hollow automobile wheel nuts:M12x1.5--35mm

Spherical open hollow automobile wheel nuts:M12x1.5--35mm

Spherical Washer Automobile Wheel Nuts:M12x1.5--45mm

Spherical modified car wheel nuts:M14X1.5--45mm

External plum anti-theft car wheel nuts:M14x1.5 M14x1.25 M12x1.5--35mm

Duckbill ball anti-theft car wheel nut：M14x1.5 M12x1.5 M12x1.25--35mm

Conical hexagonal open automobile wheel nut：M12x1.25--27 37 45mm

Customized according to the following drawings：

---

Technical Specifications

Property	Value
Tensile Strength	≥ 895 MPa (Gr5)
Yield Strength	≥ 828 MPa (Gr5)
Density	4.43 g/cm³
Hardness	36 HRC (Approx.)
Thread Tolerance	6g/6H ISO Metric or UNF/UNC

APPLICATION	NUT SEAT TYPE	NUT SIZE	NUT WEIGHT (g)	THREAD PITCH
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	R13 Ball (OEM-Style)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
Audi & Volkswagen	60° Cone (Aftermarket)	19mm Hex Long	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P
BMW & MINI	60° Cone (OEM-Style)	E24 Torx	22.9	1.50P

---

Dimensional Capabilities

Thread Sizes: M12,M14, 1/2"-20 UNF

Length Options: 25-60mm, customized sizes available

Seat Type: cone seat、ball seat、tuner、Flat

Type:Ordinary titanium nut、Titanium nut with lock and anti-theft function

---

To provide you with an accurate quotation, please kindly fill out the details below and submit the form.
The more complete the information, the faster and more precise our response will be.

Please include the following:

Product Name: __________________________

Dimensions: Inner Diameter _______ × Outer Diameter _______ × height _______

Order Quantity: _______ pcs

Surface Treatment: __________________________

Material: __________________________

Required Delivery Time: __________________________

Shipping Destination: __________________________ (Please include country and postal code)

Drawing File: Please email your design (JPEG, PNG, PDF, or Word format) with a minimum resolution of 300 DPI to ensure clarity.



Product Quality Management

Production and Processing

Workshop and Equipment

Packaging and Delivery

Standard packaging includes foam tray and export carton
Custom retail packaging options available
Lead time is 5 to 10 days for stock sizes and 10 to 20 days for custom sizes
Shipping available via DHL FedEx UPS air freight or sea freight
Global export support with full documentation

Main Products

FAQ

Q: What is the main advantage of using titanium for lug nuts?
A: Titanium offers superior strength-to-weight ratio, corrosion resistance, and durability compared to traditional steel, making it ideal for high-performance applications.

Q: Can I customize the size and finish of the lug nuts?
A: Yes, we offer custom sizes (M12, M14, M16) and surface finishes like anodized or polished to suit your specific needs.

Q: Are the lug nuts resistant to saltwater corrosion?
A: Yes, titanium is naturally resistant to corrosion, making it perfect for marine and offshore applications.

Q: What industries use titanium lug nuts?
A: Titanium lug nuts are widely used in aerospace, automotive, marine, chemical processing, and energy industries.

---
