grade 5 titanium round rod

1.Excellent strength-to-weight ratio for versatile applications.
2.High corrosion resistance in harsh environments.
3.Precision machining ensures superior dimensional accuracy.
4.Long-lasting durability for industrial and medical uses.
5.Lightweight yet robust, ideal for aerospace engineering.

Send Inquiry

Download

Product Description

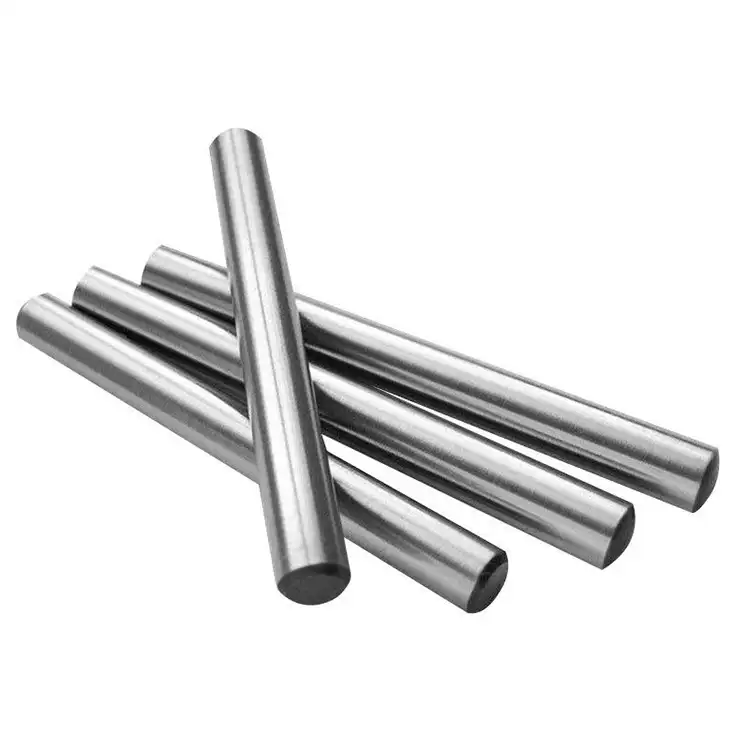

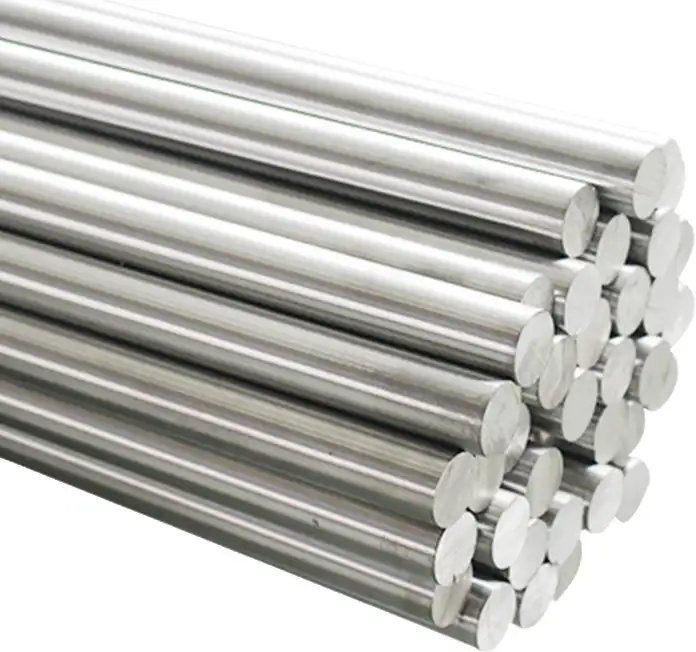

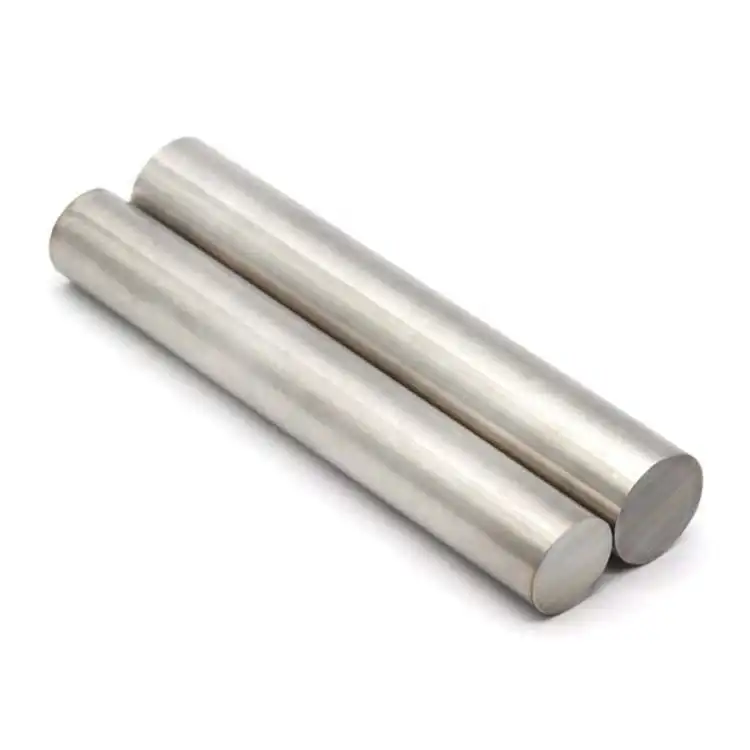

Grade 5 Titanium Round Rod: Product Details Page

Product Introduction

Grade 5 Titanium Round Rod, also known as Ti-6Al-4V, is one of the most widely used titanium alloys due to its exceptional combination of strength, lightweight properties, and corrosion resistance. Made from titanium alloy containing 90% titanium, 6% aluminum, and 4% vanadium, this material is perfect for high-performance applications across various industries. Baoji Haiyue New Metal Materials Co., Ltd. provides high-quality Grade 5 Titanium Round Rods, engineered to meet the demanding needs of aerospace, medical, chemical, energy, and marine engineering industries.

Technical Specifications

Below are the detailed technical specifications of Grade 5 Titanium Round Rods, presented in three tables to cover major international production standards:

Standard Specifications for Grade 5 Titanium Round Rod (US)

Property	Value
Grade	Ti-6Al-4V (Grade 5)
Composition	90% Ti, 6% Al, 4% V
Tensile Strength	895 MPa (min)
Yield Strength	828 MPa (min)
Elongation	10% (min)
Hardness	330 Vickers (min)
Density	4.43 g/cm³
Melting Point	1,660°C
Standard	ASTM B348, AMS 4911

Standard Specifications for Grade 5 Titanium Round Rod (Russia)

Property	Value
Grade	Ti-6Al-4V (Grade 5)
Composition	90% Ti, 6% Al, 4% V
Tensile Strength	900 MPa (min)
Yield Strength	850 MPa (min)
Elongation	12% (min)
Hardness	350 Vickers (min)
Density	4.43 g/cm³
Melting Point	1,660°C
Standard	GOST 19290-73, 19156-73

Standard Specifications for Grade 5 Titanium Round Rod (Japan)

Property	Value
Grade	Ti-6Al-4V (Grade 5)
Composition	90% Ti, 6% Al, 4% V
Tensile Strength	890 MPa (min)
Yield Strength	830 MPa (min)
Elongation	10% (min)
Hardness	340 Vickers (min)
Density	4.43 g/cm³
Melting Point	1,660°C
Standard	JIS H 4650, JIS H 4652

Product Features (Key Features)

High Strength-to-Weight Ratio: Grade 5 titanium round rods offer excellent strength while maintaining a low weight, ideal for lightweight yet durable components.
Corrosion Resistance: Highly resistant to corrosion from harsh environments, including seawater, making it suitable for marine applications.
Biocompatibility: Perfect for medical applications like implants, as it does not cause adverse reactions in the human body.
Versatile Applications: Used in industries such as aerospace, automotive, chemical processing, and more.
Machinability: Grade 5 titanium offers good machinability and weldability with the proper techniques.
Longevity: The rods are resistant to wear, ensuring a long lifespan even under extreme conditions.

Applications

Grade 5 Titanium Round Rods are widely used in various sectors, including:

Aerospace: Aircraft structural components, turbine engines, and fasteners.
Medical Devices: Surgical instruments, dental implants, and joint replacements.
Chemical Processing: Pumps, valves, and heat exchangers for corrosive environments.
Energy Sector: Components for nuclear plants, renewable energy applications, and offshore rigs.
Marine Engineering: Offshore structures, shipbuilding, and submarine parts.
Industrial Manufacturing: Industrial machinery, fasteners, and tooling.

Manufacturing Process

Baoji Haiyue ensures the Grade 5 Titanium Round Rods are produced using state-of-the-art manufacturing processes:

Casting: High-purity titanium is cast into billets or ingots.
Hot Rolling: The billets are hot-rolled into rods under controlled conditions.
Cold Working: Cold working techniques refine the shape and size of the rods.
Annealing: Heat treatment is applied to enhance material properties.
Surface Treatment: Optional coating or polishing is done to meet customer specifications.

Quality Assurance

Quality is a cornerstone of Baoji Haiyue's operations. The Grade 5 Titanium Round Rods are rigorously tested using the following methods:

Ultrasonic Testing: To detect any internal defects.
Spectral Analysis: Ensuring the precise composition and material integrity.
Tensile and Yield Strength Testing: Verifying mechanical properties.
Dimensional Inspection: Ensuring the rods meet all size and tolerance requirements.

Packaging and Logistics

Baoji Haiyue ensures safe and efficient packaging for Grade 5 Titanium Round Rods, including:

Packaging: Each rod is individually packed in protective materials to prevent damage.
Logistics: The rods are shipped globally, with customs clearance and door-to-door delivery options.
Lead Time: We offer fast production and shipping, with reliable lead times.

Customer Support

Baoji Haiyue offers expert customer support throughout the purchasing process. Our team is available to assist with:

Product inquiries
Technical support and material selection
Customization requests
After-sales service

Why Choose Us?

Complete Product Range: We offer a broad range of titanium and other non-ferrous materials.
Full-Process Production: From raw material to final product, we handle every step of the production process.
Global Reach: Our products are distributed worldwide, including North America, Europe, and Asia.
Fast Delivery: We provide reliable and timely delivery to meet your project deadlines.
Excellent Reputation: We are known for our commitment to quality and customer satisfaction.
OEM Services: We offer customized products to meet the unique needs of our clients.

OEM Services

Baoji Haiyue provides tailored solutions, including custom sizes, shapes, and specifications. We offer:

Custom Manufacturing: Precision machining and custom fabrication.
Long-Term Partnerships: Establishing ongoing supply agreements for continuous support.

Frequently Asked Questions (FAQs)

Q1: What is the maximum size available for Grade 5 Titanium Round Rods?
A1: We offer rods up to 300mm in diameter, with longer lengths available upon request.

Q2: Can Grade 5 Titanium Round Rods be welded?
A2: Yes, they can be welded using proper titanium welding techniques.

Q3: What are the delivery options?
A3: We offer global shipping with door-to-door service, ensuring timely delivery.

Q4: Do you provide samples?
A4: Yes, samples are available upon request for testing and evaluation.
