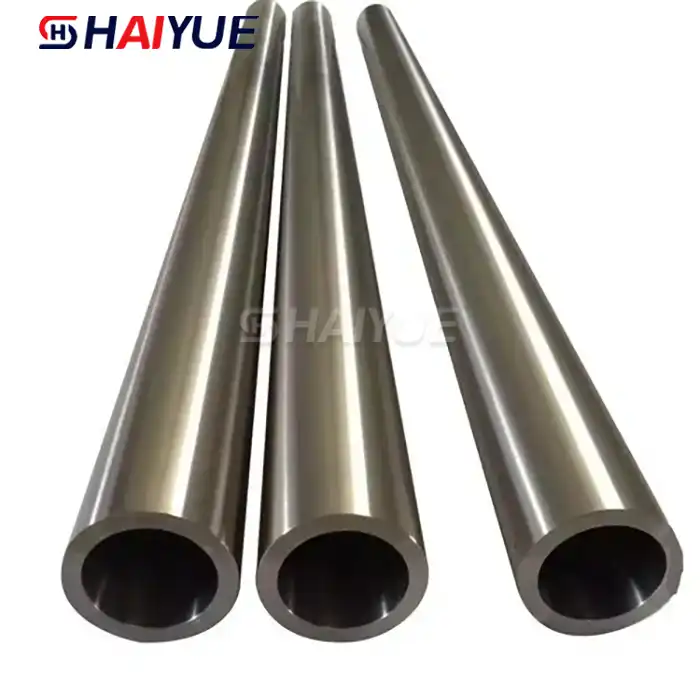

Biomedical Titanium Pipe

Product Introduction

Biomedical Titanium Pipe is a high-performance material specifically engineered to meet the rigorous demands of the medical industry. Renowned for its exceptional biocompatibility, corrosion resistance, and mechanical strength, it is a vital component in medical devices and implants. Manufactured to strict international standards, Biomedical Titanium Pipe ensures reliability and safety in critical applications such as surgical implants, prosthetics, and dental devices.

Technical Specifications

Biomedical Titanium Pipes are available in a variety of sizes, grades, and finishes. Below are detailed specifications for reference:

General Specifications

Parameter	Value
Outer Diameter (OD)	4 mm – 120 mm
Wall Thickness	0.5 mm – 10 mm
Length	Up to 6 meters
Surface Finish	Polished, Pickled
Material Grades	ASTM F67 (Pure Titanium), ASTM F136 (Ti-6Al-4V ELI)

Grade Comparison (International Standards)

Standard	US Grade	Russian Grade	Japanese Grade
ASTM F67	Grade 1, 2, 4	BT1-00, BT1-0	JIS H4650
ASTM F136	Ti-6Al-4V ELI	VT6S	JIS H4657

Mechanical Properties

Property	Value
Tensile Strength	240 MPa – 860 MPa
Yield Strength	170 MPa – 795 MPa
Elongation	≥20%
Hardness (HV)	120 – 330

Product Features

Biocompatibility: Ensures safe integration with human tissue.
Corrosion Resistance: Withstands body fluids and environmental factors.
High Strength-to-Weight Ratio: Provides durability without added weight.
Customizable: Tailored dimensions and grades for specific applications.
Compliance: Adheres to ASTM, ASME, and ISO standards.

Applications

Biomedical Titanium Pipes are used in diverse medical applications, including:

Orthopedic Implants: Hip and knee replacements, bone screws, and plates.
Dental Devices: Dental implants and orthodontic frameworks.
Surgical Instruments: Forceps, scissors, and clamps.
Prosthetics: Lightweight and durable artificial limbs.
Medical Equipment: Frames and components for diagnostic devices.

Manufacturing Process

Raw Material Selection: High-purity titanium ingots are sourced and inspected.
Melting and Forming: Vacuum Arc Remelting (VAR) ensures material consistency.
Rolling and Forging: Pipes are shaped using hot and cold rolling techniques.
Heat Treatment: Enhances mechanical properties and durability.
Precision Machining: CNC machining achieves exact dimensions.
Surface Treatment: Polishing or pickling for enhanced appearance and performance.
Quality Inspection: Thorough testing for compliance with medical standards.

Quality Assurance

Our rigorous quality management system ensures every pipe meets the highest standards:

Non-Destructive Testing: Ultrasonic and eddy current testing for defect detection.
Chemical Analysis: Verifies material composition.
Dimensional Checks: Ensures precise tolerances.
Certification: Supplied with full documentation, including material test reports (MTR).

Packaging and Logistics

Biomedical Titanium Pipes are carefully packaged to prevent damage during transit:

Packaging: Individually wrapped in protective materials, placed in sturdy wooden crates.
Labeling: Clearly marked with grade, size, and batch number.
Shipping Options: Global delivery via air, sea, or express courier.

Customer Support

Technical Assistance: Expert advice on material selection and applications.
After-Sales Service: Timely resolution of queries and concerns.
Global Reach: Support across all major markets.

Why Choose Us

Comprehensive Product Range: Full portfolio of titanium and alloy products.
End-to-End Production: Complete in-house manufacturing processes.
Global Sales Network: Serving over 20 countries.
Customized Solutions: Tailored dimensions and finishes to meet unique needs.
Fast Delivery: Reliable and timely shipments.
Outstanding Reputation: Trusted by global industry leaders.
