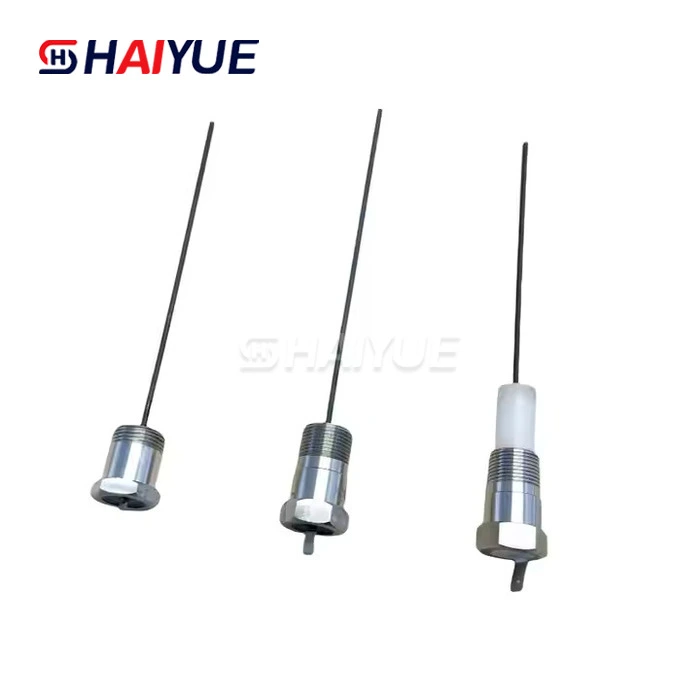

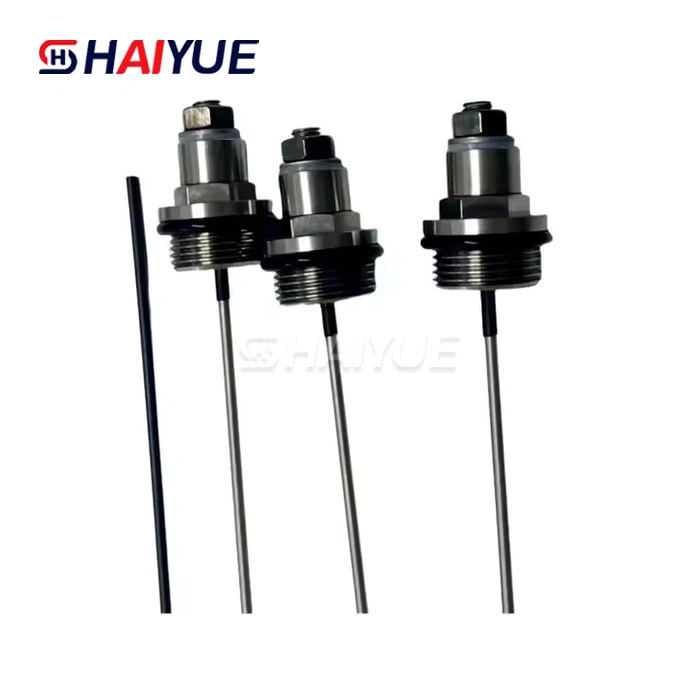

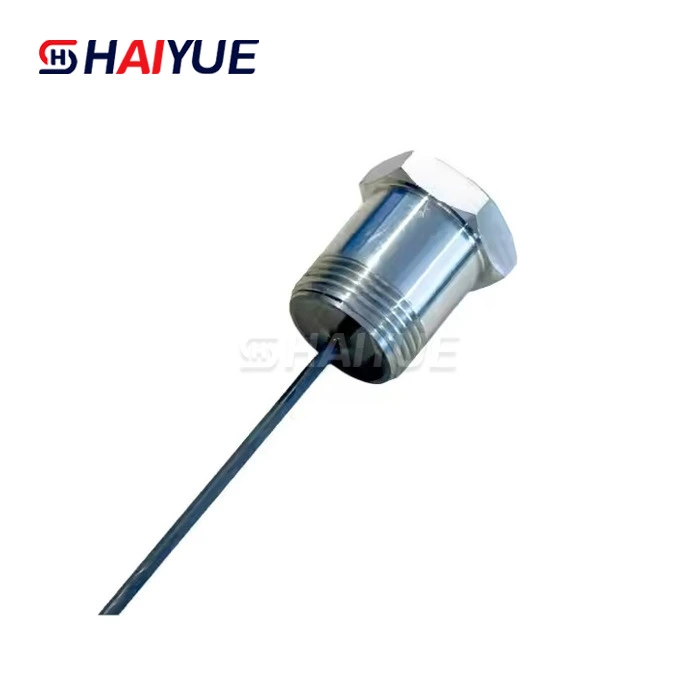

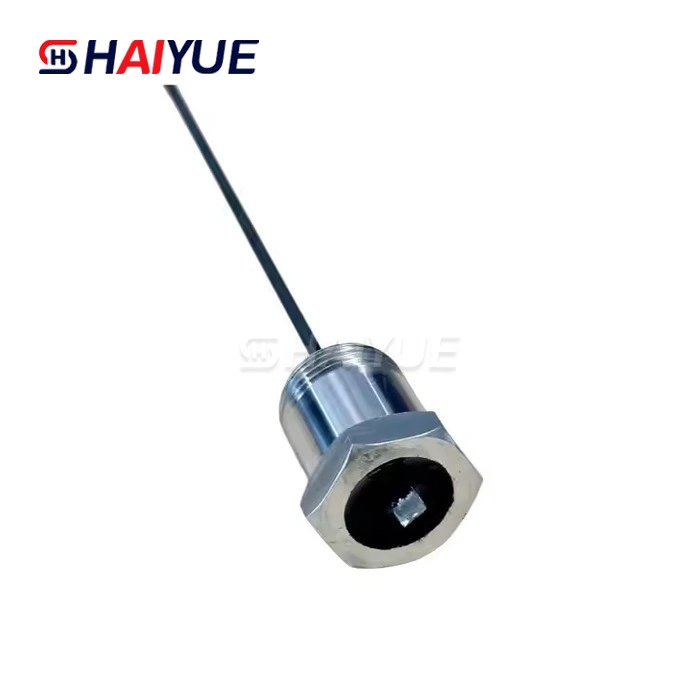

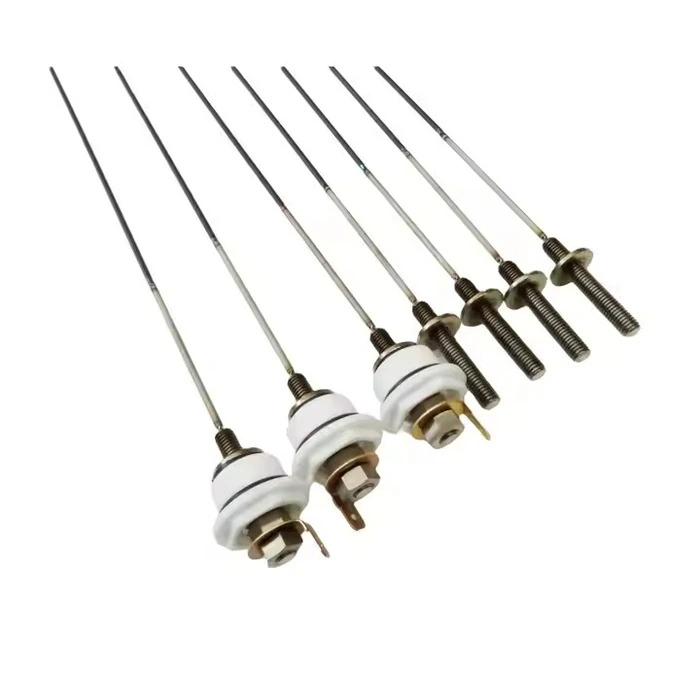

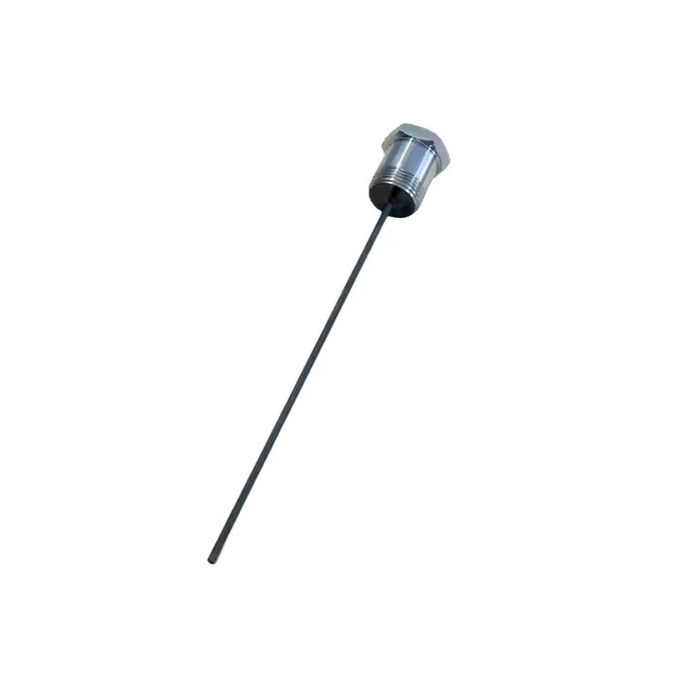

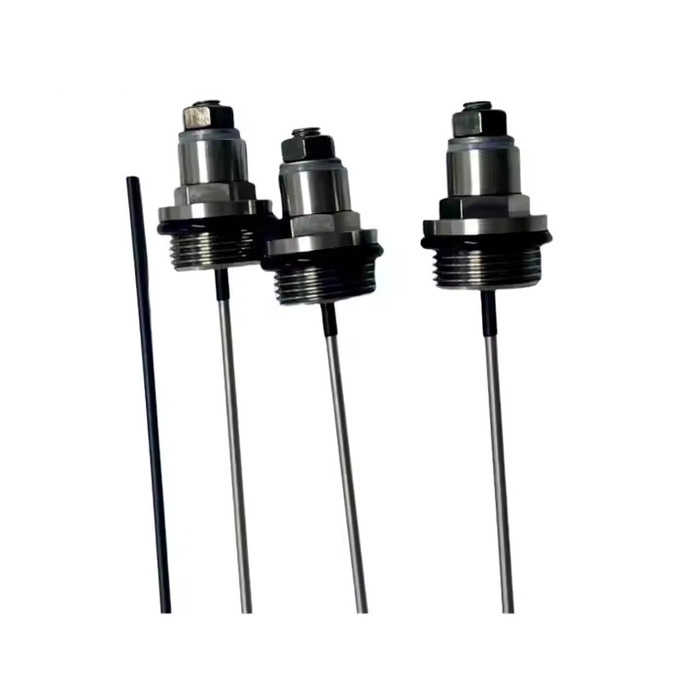

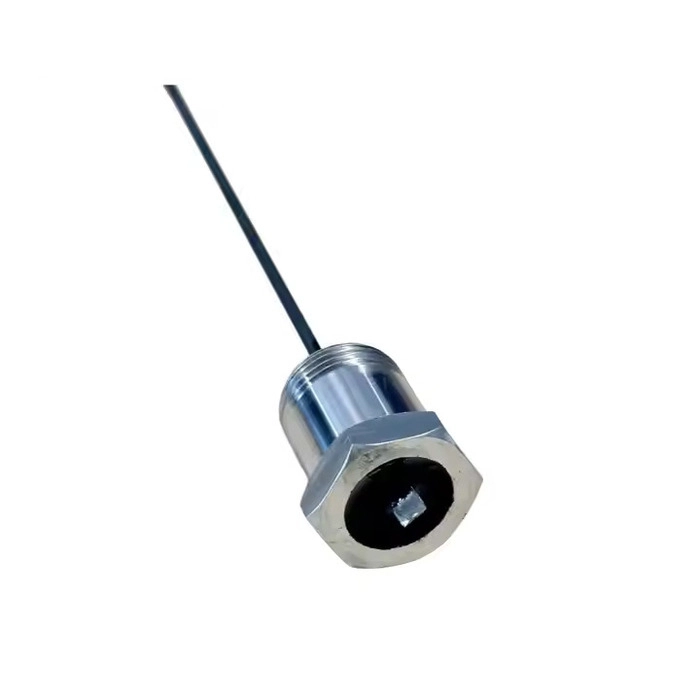

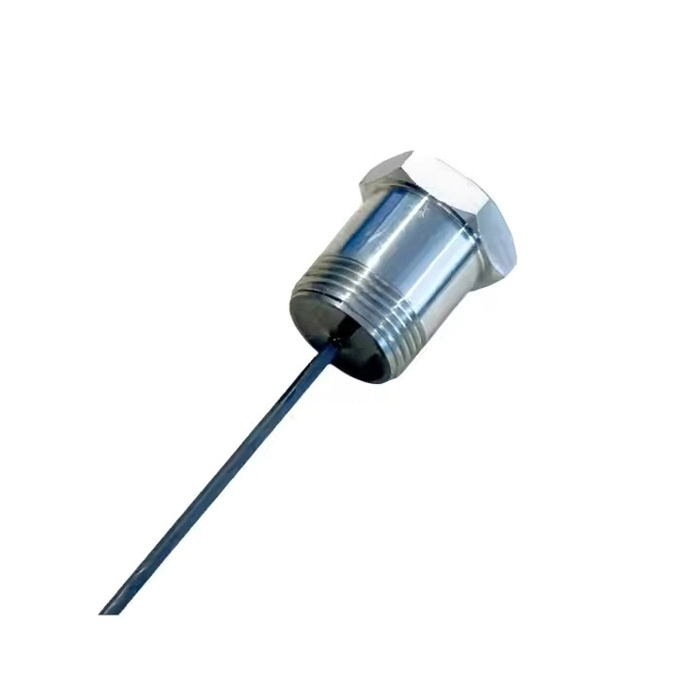

Titanium Anode Rods

Substrate: ASTM Grade 1 Titanium Rod
Coating: Ru-Ir-Ta Mixed Metal Oxide (MMO)
Diameter Range: 6–50 mm Available
Length Range: 100–6000 mm Customizable
Current Density: 20–150 A/m² Operating Range
Temperature Range: -20°C to 80°C Service
Design Life: ≥25 Years in CP Systems
Application: Soil, Water, Marine Cathodic Protection

Send Inquiry

Download

Product Description

What Is Titanium Anode Rods and How to Choose the Right One for Your Industry?

Titanium Anode Rods are high-performance electrochemical electrodes used in impressed current cathodic protection (ICCP) systems and industrial electrolysis applications. They are manufactured from high-purity titanium substrate coated with mixed metal oxide (MMO), such as Ru–Ir–Ta, ensuring excellent corrosion resistance, low consumption rate, and stable long-term current output.

Titanium Anode Rods are widely used in water treatment, electroplating, cathodic protection, seawater electrolysis, and industrial anti-corrosion systems. Their rod-shaped structure allows deep installation and uniform current distribution, making them suitable for pipelines, tanks, marine structures, and underground steel systems.

Choosing the right Titanium Anode Rods depends on current demand, installation environment, electrolyte type, and required service life. High-resistivity soil or seawater applications require higher coating loading and optimized rod dimensions, while precision industrial systems benefit from stable low-voltage performance and controlled current output. Proper selection ensures maximum efficiency, reduced maintenance cost, and long-term structural protection.

Features of Titanium Anode Rods

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Ultra-Long and Reliable Service Life

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)

Titanium Anode Rods can be fully customized according to industrial requirements:

HY Ti-Ni Import & Export provides full customization for Titanium Anode Rods according to industrial requirements:

Rod Diameter: customizable from 6 mm to industrial heavy-duty sizes
Rod Length: adjustable for shallow or deep installation systems
Base Material: Gr1 / Gr2 high-purity titanium
Coating Type: Ru–Ir–Ta mixed metal oxide system
Coating Loading: adjustable for lifespan and output performance
Current Output Range: low, medium, and high load designs
Structure Design: solid rod, threaded rod, or hollow rod types
Service Life: 10–50 years engineering options available
Connection Type: welded, threaded, or cable-connected terminals
OEM/ODM Support: customized production based on drawings

Each Titanium Anode Rods system is engineered for stable electrochemical performance and long service life.

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export, located in Baoji High-tech Development Zone, is a professional manufacturer of Titanium Anode Rods for industrial cathodic protection and electrochemical applications. We integrate advanced MMO coating technology, strict quality control, and strong engineering capability.

From titanium raw material selection to coating process and final inspection, every step is carefully controlled to ensure consistent performance and durability.

With OEM/ODM flexibility and global export experience, HY Ti-Ni Import & Export delivers reliable and cost-effective Titanium Anode Rods solutions for water treatment, marine protection, and industrial electrochemical systems.

Titanium Anode Purchase Guide: A Comprehensive Guide

When selecting Titanium Anode Rods, the first step is to analyze the application environment, including soil resistivity, electrolyte type, and structure material. These factors determine system efficiency and anode performance.

Next, calculate required current output and installation depth to determine rod size and quantity. Then select appropriate coating type and loading based on expected service life.

Finally, ensure proper compatibility with power supply and installation system. HY Ti-Ni Import & Export provides technical support to help customers choose the most suitable Titanium Anode Rods for long-term corrosion protection and optimized system cost.

Purchase Guide

1. What is a Titanium Anode Rods?
2. Main Technical Parameters of a Titanium Anode Rods.
3. Specifications of a Titanium Anode Rods.
4. Current Output of Standard Titanium Anode Rods.
5. Applications of a Titanium Anode Rods.
6. How to Purchase the Suitable Titanium Anode Rods?
7. FAQ
8. Our Factory

Products Introduction

What Is Titanium Anode Rods?

Titanium Anode Rods are cylindrical or rod-shaped titanium-based electrodes coated with MMO catalytic layers. They are designed for impressed current cathodic protection systems and electrochemical industrial applications.

They provide stable current output, high corrosion resistance, and long service life, making them suitable for pipelines, seawater systems, and industrial tanks.

Main Technical Parameters

Parameter	Typical Range
Base Material	Titanium (Gr1 / Gr2)
Coating Type	Ru–Ir–Ta Mixed Metal Oxide
Rod Diameter	6 mm – 25 mm (customizable)
Rod Length	0.5 – 6 meters
Current Density	20 – 150 A/m²
Operating Voltage	1.5 – 5.0 V
Temperature Range	-20°C to 80°C
Design Life	10 – 50 Years
Electrical Resistance	Low Resistance Design

Specifications

Type	Structure	Application
Solid Rod Anode	Full titanium rod	Water treatment systems
Threaded Rod Anode	Connection threads	Industrial installations
Hollow Rod Anode	Lightweight structure	Seawater electrolysis
Reinforced Rod Anode	Heavy-duty design	Marine environments
Custom Rod System	OEM design	Special industrial projects

Cerrent output of Standard

Type	Current Output (mA/m²)	Application Condition
Standard Rod Anode	20 – 50	Water treatment systems
High Load Rod Anode	50 – 100	Medium corrosion environments
Marine Rod System	80 – 150	Seawater applications
Industrial Rod System	40 – 120	Electroplating systems
Customized System	Up to 150+	Heavy-duty protection

Applications of MMO Titanium Anode

Be used in a wide range of industries.

Water Treatment Industry

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

To select the correct Titanium Anode Rods, customers should provide detailed application data such as electrolyte type, installation environment, required current output, and expected service life. These parameters directly affect system performance and design.

Next, determine installation depth and system layout to define rod size and quantity. Then select appropriate coating loading and rod structure based on performance requirements.

HY Ti-Ni Import & Export provides professional engineering support to ensure each Titanium Anode Rods system is optimized for high efficiency, long lifespan, and low maintenance cost.

FAQ

Q1: What is the main function of Titanium Anode Rods?
They provide long-term corrosion protection and electrochemical current output.

Q2: What is the service life?
Typically 10–50 years depending on conditions.

Q3: Can they be used in seawater?
Yes, they are widely used in marine environments.

Q4: Can they be customized?
Yes, size, coating, and structure can be fully customized.

Q5: Do they require maintenance?
They require minimal maintenance due to stable MMO coating performance.

Our Factory

Titanium Anode | High Efficiency | Long Service Life | Eco-Friendly

Production site

State-of-the-art manufacturing for titanium anodes, precision coating and quality control.

Choseing titanium substrate	Substrate Cutting	Sandblasting	Pickling
Laser Cutting Configure Precious Metal	Coating	Sintering	Packaging

Workshop

Precision machining and coating workshop for titanium anodes.

Titanium anode coating workshop	Thermal decomposition sintering furnace workshop	Titanium mesh anode production area	Pickling/surface treatment process
Pickling/surface treatment process	Quality inspection workshop	Worker operation photos	Panoramic view of a clean production line

Quality inspection

Rigorous testing for coating adhesion, electrochemical performance, and durability.

Dimension Inspection	Coating Thickness Testing	Coating Adhesion Testing	Microstructure Analysis
Conductivity Testing	Corrosion Resistance Testing	Bond Strength Testing	Final Inspection & Packaging
