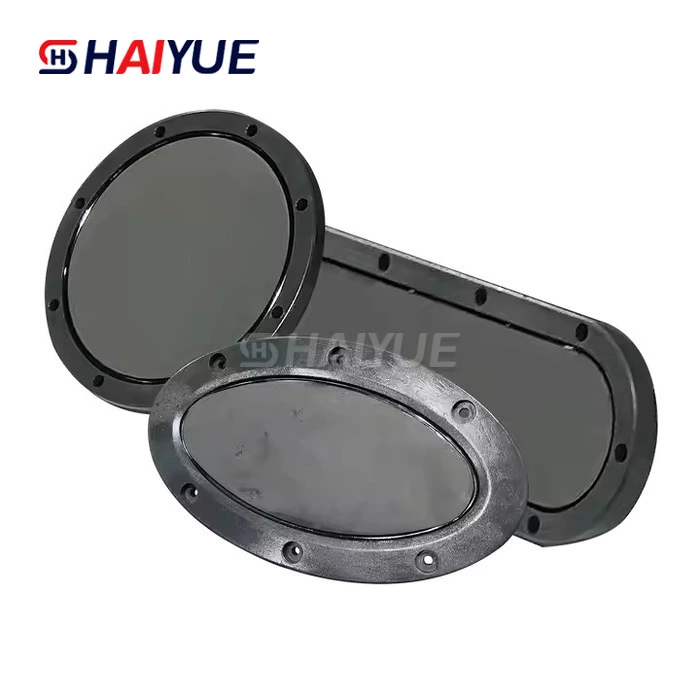

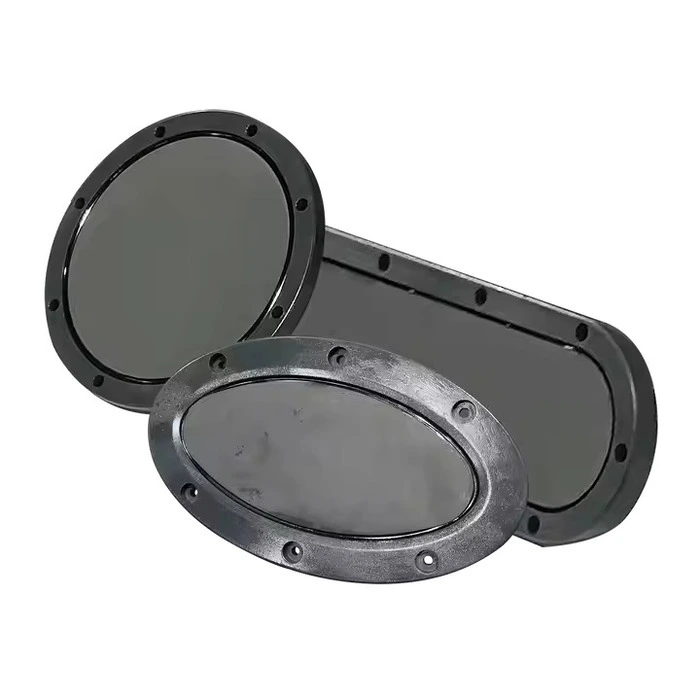

MMO Disc Anode

Titanium substrate Gr1 corrosion-resistant base
MMO coating RuO₂–IrO₂ high catalytic layer
Current density range 100–2000 A/m² operation
Operating voltage stable 1.0–1.5 V
Disc diameter customizable 50–300 mm range
Service life designed 10–25 years underwater
Temperature resistance -10°C to 80°C environment
Low consumption rate <1 mg/A·year loss

Send Inquiry

Download

Product Description

What Is MMO Disc Anode and How to Choose the Right One for Your Industry?

MMO Disc Anode is a high-efficiency mixed metal oxide (MMO) electrode designed for cathodic protection and electrochemical applications. It is manufactured using a titanium base coated with a catalytic MMO layer, providing excellent corrosion resistance, stable current distribution, and long operational lifespan. Its disc-shaped structure ensures uniform current output and high installation flexibility in confined or specialized environments.

MMO Disc Anode is widely used in impressed current cathodic protection systems, including tank bottom protection, marine structures, pipeline systems, and reinforced concrete corrosion control. Compared with conventional anodes, MMO Disc Anode offers lower consumption rates, higher energy efficiency, and significantly improved durability under aggressive environmental conditions.

Selecting the right MMO Disc Anode depends on factors such as soil or electrolyte resistivity, required current density, installation depth, and system design life. High-corrosion environments require higher coating loading and optimized disc surface area, while precision systems benefit from compact geometry and stable current output. Proper selection ensures maximum corrosion protection efficiency, reduced maintenance cost, and long-term structural safety.

Features of MMO Disc Anode

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Ultra-Long and Reliable Service Life

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)

MMO Disc Anode can be fully customized according to industrial requirements:

HY Ti-Ni Import & Export provides full customization for MMO Disc Anode according to industrial requirements:

Disc Size: 50–300 mm customizable diameter range
Base Material: Gr1 / Gr2 titanium substrate options
Coating Type: RuO₂–IrO₂ mixed metal oxide formulation
Coating Thickness: adjustable for lifespan and output performance
Shape Design: standard disc, perforated disc, or reinforced structure
Current Output Range: low, medium, and high load designs
Service Life Options: 10–25 years engineering lifespan
Connection Type: threaded, welded, or integrated terminals
Surface Treatment: smooth or textured catalytic surface
OEM/ODM Service: customized production based on drawings

Each MMO Disc Anode is engineered for stable electrochemical performance and long-term corrosion protection efficiency.

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export, located in Baoji High-tech Development Zone, is a professional manufacturer of MMO Disc Anode systems for cathodic protection applications. We combine advanced MMO coating technology, strict production control, and strong engineering capability.

Every MMO Disc Anode is produced under strict quality standards from titanium substrate processing to final testing, ensuring excellent durability and stable performance.

With OEM/ODM flexibility and global supply experience, HY Ti-Ni Import & Export delivers reliable and cost-effective MMO Disc Anode solutions for marine, pipeline, and industrial corrosion protection systems worldwide.

Titanium Anode Purchase Guide: A Comprehensive Guide

When selecting an MMO Disc Anode, the first step is to evaluate the installation environment, including soil resistivity, electrolyte composition, and structural type. These factors directly influence current distribution and system efficiency.

Next, calculate total protection current and system layout requirements to determine disc quantity and spacing. Then select appropriate coating loading and disc diameter based on expected service life.

Finally, ensure compatibility with installation method and electrical connection system. HY Ti-Ni Import & Export provides engineering support to help customers choose the most suitable MMO Disc Anode system for long-term corrosion protection and optimized lifecycle cost.

Purchase Guide

1. What is a MMO Disc Anode?
2. Main Technical Parameters of a MMO Disc Anode.
3. Specifications of a MMO Disc Anode.
4. Current Output of Standard MMO Disc Anode.
5. Applications of a MMO Disc Anode.
6. How to Purchase the Suitable MMO Disc Anode?
7. FAQ
8. Our Factory

Products Introduction

What Is MMO Disc Anode?

MMO Disc Anode is a titanium-based circular anode coated with mixed metal oxides, designed for impressed current cathodic protection systems. It is used to prevent corrosion of steel structures in soil, seawater, and concrete environments.

It provides stable current output, high efficiency, and long service life, making it ideal for tank bottoms, marine platforms, and confined industrial installations.

Main Technical Parameters

Parameter	Typical Range
Base Material	Titanium (Gr1 / Gr2)
Coating Type	Mixed Metal Oxide (RuO₂–IrO₂)
Disc Diameter	50 – 300 mm
Current Density	100 – 2000 A/m²
Operating Voltage	1.0 – 1.5 V
Temperature Range	-10°C to 80°C
Design Life	10 – 25 Years
Electrical Resistance	Low Resistance Design
Installation Type	Soil / Water / Concrete

Specifications

Type	Structure	Application

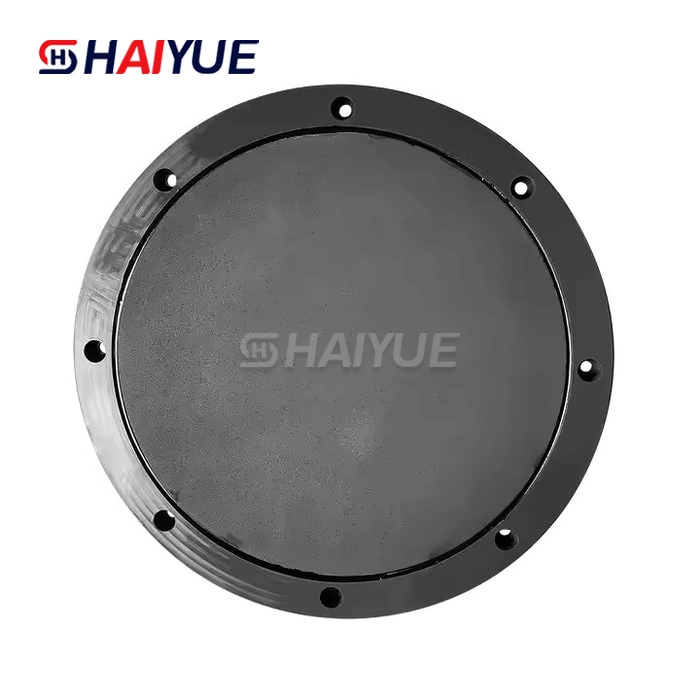

Standard Disc Anode	Solid circular design	Tank bottom protection

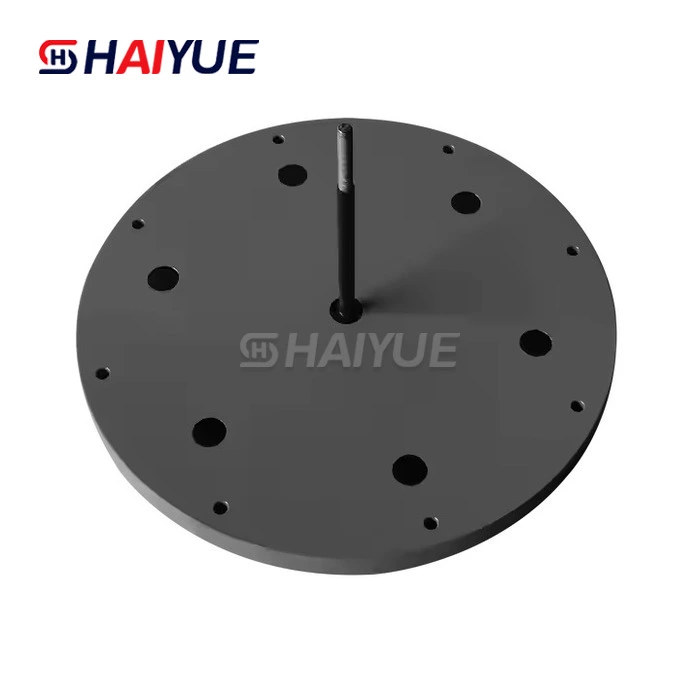

Perforated Disc Anode	Hole structure	Soil corrosion control
Reinforced Disc Anode	Heavy-duty structure	Marine environments
Compact Disc Anode	Small diameter design	Confined spaces
Custom Disc System	OEM design	Industrial systems

Cerrent output of Standard

Type	Current Output (mA/m²)	Application Condition
Standard Disc Anode	10 – 30	Soil environments
High Load Disc Anode	30 – 60	Medium corrosion zones
Marine Disc Anode	50 – 100	Seawater systems
Tank Bottom System	20 – 80	Storage tank protection
Customized System	Up to 100+	Heavy-duty protection

Applications of MMO Titanium Anode

Be used in a wide range of industries.

Water Treatment Industry

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

To select the correct MMO Disc Anode, customers should provide detailed project parameters such as soil resistivity, installation environment, structure type, and required protection current. These factors determine system design and performance.

Next, define total current demand and installation layout to calculate disc quantity and spacing. Then select appropriate coating loading and disc diameter for expected service life.

HY Ti-Ni Import & Export provides professional engineering consultation to ensure each MMO Disc Anode system is optimized for high efficiency, stable operation, and reduced lifecycle cost.

FAQ

Q1: What is the main function of MMO Disc Anode?
It provides long-term cathodic protection against corrosion.

Q2: What is its typical service life?
Usually 10–25 years depending on conditions.

Q3: Where is it commonly used?
It is widely used in tanks, marine, and underground systems.

Q4: Can it be customized?
Yes, size, coating, and structure are fully customizable.

Q5: Does it require maintenance?
It requires minimal maintenance due to stable MMO coating performance.
