Titanium anodes for copper recovery from etching liquid

I. What Are Titanium Anodes for Copper Recovery from Etching Solutions?

Titanium anodes for copper recovery from etching solutions are electrochemical anode materials made from industrial-grade pure titanium or titanium alloys, with surfaces coated with MMO (mixed metal oxides) or functional catalytic coatings. They are specifically designed for recovering copper resources from copper-containing etching waste solutions.

In the PCB (printed circuit board), electronics manufacturing, and metal processing industries, the etching process generates large volumes of copper-containing waste liquid (such as copper chloride systems). Through electrolysis technology, titanium anodes efficiently recover copper ions from the waste liquid as metallic copper, while simultaneously purifying the waste liquid and enabling resource reuse.

🔘 Get a Quote Now

II. Working Principle of Titanium Anodes for Copper Recovery from Etching Liquid

These titanium anodes are primarily used in electrolytic recovery systems, where they facilitate copper deposition and recovery through electrochemical reactions:

1. Anode Reaction

Provides a stable current

Promotes oxidation reactions in the electrolytic system

Maintains the chemical balance of the electrolyte

2. Cathode Reaction (Core of Copper Recovery)

Cu²⁺ + 2e⁻ → Cu (metal deposition)

3. Synergistic Effects

Titanium anodes ensure uniform current distribution

MMO coating reduces energy consumption

Improves copper recovery efficiency and purity

In short: Titanium anodes are responsible for “stable power supply + reaction support,” while the cathode completes the efficient recovery of copper.

🔘 Download Technical Datasheet

III. Advantages of Using Titanium Anodes for Copper Recovery from Etching Liquids

1. Efficient Copper Recovery

High current efficiency enables high-purity copper deposition and improves resource utilization.

2. Excellent Corrosion Resistance

Suitable for highly corrosive environments such as copper chloride and acidic etching solutions, ensuring long-term stable operation.

3. Low-Energy Consumption Operation

The MMO coating features a low overpotential characteristic, effectively reducing electrolytic voltage and energy consumption.

4. Long Service Life

The titanium substrate is stable, with anode lifespans of up to 3–8 years, reducing replacement frequency.

5. Environmental Protection and Cost Reduction

Enables the recycling of waste liquid, reduces emissions, and lowers corporate treatment costs.

🔘 Contact Our Engineers

IV. Types of Titanium Anodes for Copper Recovery from Etching Liquid

Based on coating type and process requirements, they are primarily classified as:

1. MMO-Coated Titanium Anodes (Mainstream)

RuO₂ / IrO₂ system

High stability, low energy consumption

Suitable for continuous electrolytic recovery systems

2. High Chlorine-Resistant Titanium Anodes

Optimized for copper chloride systems

Enhanced corrosion resistance

3. Custom Functional Coated Anodes

Customized based on different etching solution compositions (acidic/alkaline)

🔘 Request a Solution for Your Project

V. Different Types of Titanium Anodes for Copper Recovery from Etching Liquids

Based on structural form, they can be classified as:

1. Plate Anodes

Commonly used in standard electrolytic cells

Uniform current distribution, suitable for large-scale recovery

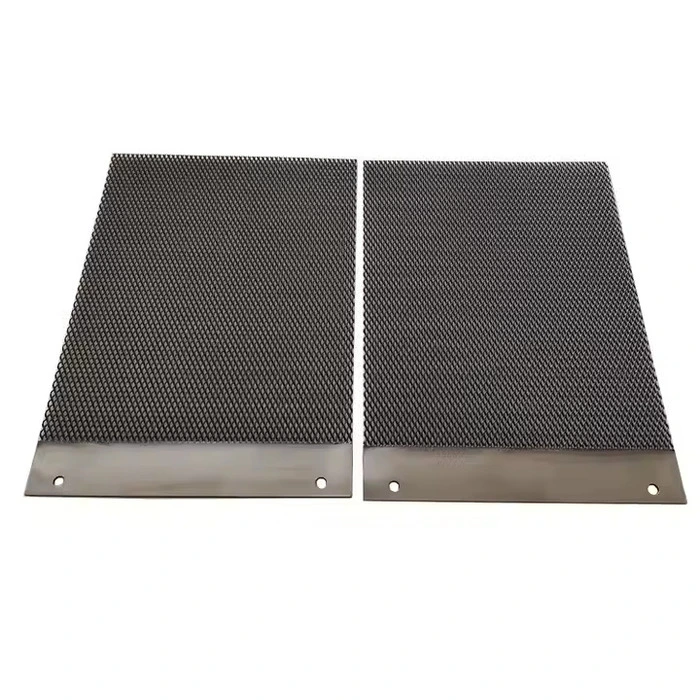

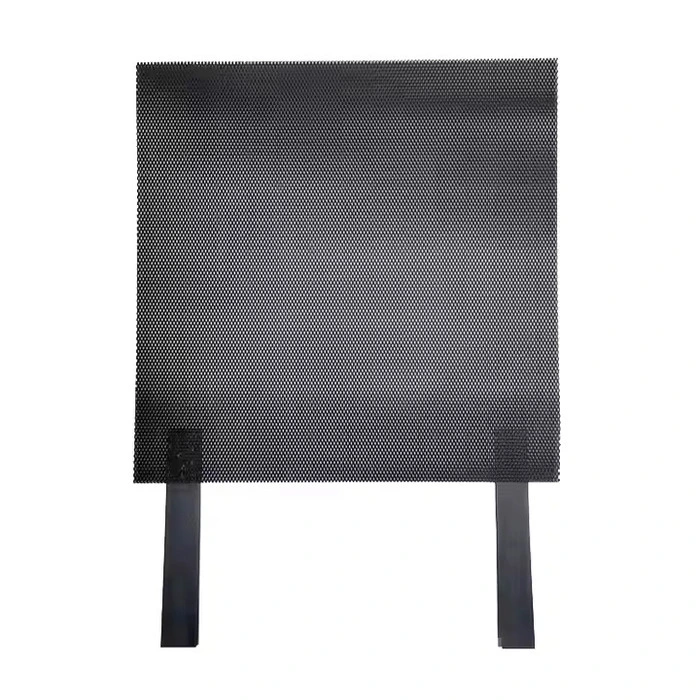

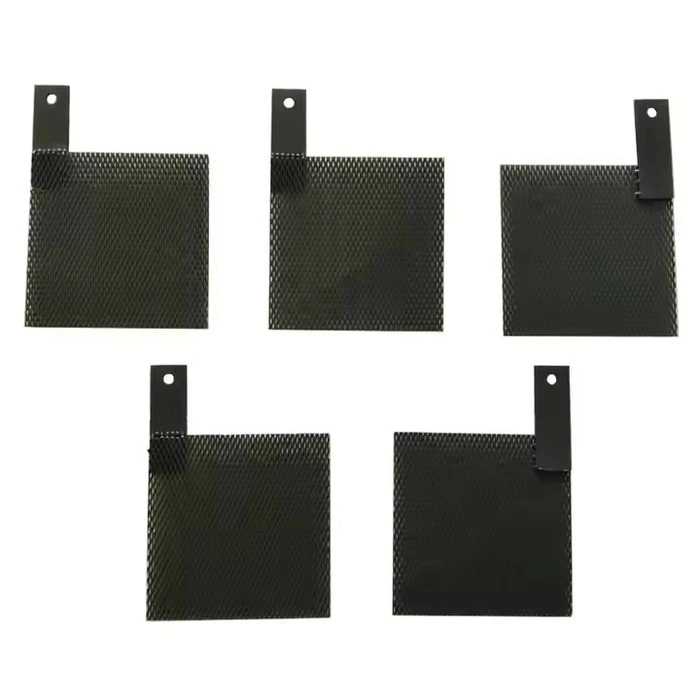

2. Mesh Anodes

Increase effective surface area

Improve electrolysis efficiency

3. Tubular Anodes

Suitable for recirculating flow systems

Improve mass transfer efficiency

4. Rod Anodes

Used in small-scale equipment or localized recovery systems

🔘 Request Full Technical Specifications

VI. Major Applications of Titanium Anodes for Copper Recovery from Etching Liquids

1. Copper recovery from PCB etching solutions

Treatment of copper chloride etching solutions

Enables the recycling of copper resources

2. Electronics manufacturing industry

Treatment of waste liquids from circuit board production

Recovery of metal ions

3. Metal processing industry

Recovery of waste liquids from copper alloy processing

Electrolytic purification

4. Environmental wastewater treatment

Purification of copper-containing wastewater

Removal of heavy metals

Be used in a wide range of industries.



​​​​

Electrolytic copper foil manufacturing industry

​​​​

Hydrometallurgy industry

​​​​

Sewage treatment industry

​​​​

Cyclone electrolysis industry

​​​​

Etching liquid electrolysis recovery industry

​​​​

Electrolytic sodium hypochlorite industry

VIII. How to Select Suitable Titanium Anodes for Copper Recovery from Etching Solutions?

In practical applications, it is recommended to focus on the following factors:

1. Type of Etching Solution

Copper chloride systems or acidic systems

Different compositions require different anode specifications

2. Current Density Requirements

High-output systems require highly stable MMO anodes

To ensure long-term continuous operation

3. Anode Structure and Dimensions

Select plate-type or mesh-type based on cell design

Ensure uniform current distribution

4. Coating Type and Corrosion Resistance

Enhanced chlorine resistance is required in high-chlorine environments

Extend service life

5. Service Life and Maintenance Costs

High-durability models are recommended for long-term projects

Reduce downtime and replacement costs6. System Compatibility and Automation
