Swirl electrolytic titanium anodes

I. What Is a Swirl Electrolytic Titanium Anode?

A swirl electrolytic titanium anode is a specialized functional titanium anode designed to enhance mass transfer and improve electrolytic efficiency. It uses industrial-grade pure titanium or titanium alloy as the substrate, with a surface coated in MMO (mixed metal oxides) or a custom catalytic coating. Combined with a unique swirl structure design, this configuration induces a swirling flow of the electrolyte across the anode surface.

This design effectively reduces concentration polarization and increases reaction interface activity, making it an advanced anode type that has been increasingly adopted in high-efficiency electrolysis systems in recent years.

🔘 Get a Quote Now

II. Working Principle of Swirl Electrolytic Titanium Anodes

Swirl electrolytic titanium anodes enhance electrolysis efficiency through the synergistic interaction of “electrochemical reactions + fluid dynamics optimization”:

1. Electrochemical Effects

The anode provides a stable current output

The MMO coating reduces the overpotential for oxygen or chlorine evolution

Improves current efficiency

2. Swirl-Enhanced Mass Transfer

The electrolyte forms a swirling flow on the anode surface

Reduces bubble adhesion

Increases the rate of reactant renewal

3. Synergistic Effects

Reduces polarization

Increases the rate of electrolytic reactions

Improves product quality

In short: The swirl structure makes the “reaction faster, more uniform, and more efficient.”

🔘 Download Technical Datasheet

III. Advantages of Using Swirl Electrolytic Titanium Anodes

1. Improved Electrolysis Efficiency

The swirl design enhances mass transfer, increasing current utilization.

2. Reduced Energy Consumption

Reduced polarization and improved reaction efficiency lead to lower overall energy consumption.

3. Reduced Bubble Adhesion

The swirling flow facilitates rapid bubble detachment, maintaining electrode activity.

4. Long Service Life

The titanium substrate combined with an MMO coating offers corrosion resistance, making it suitable for long-term continuous operation.

5. Adaptability to Complex Operating Conditions

Suitable for electrolytic systems with high current density, high concentration, or high viscosity.

🔘 Contact Our Engineers

IV. Types of Swirl Electrolytic Titanium Anodes

Depending on coating and process requirements, they are primarily categorized as follows:

1. MMO-Coated Swirl Titanium Anodes

RuO₂ / IrO₂ system

General-purpose, suitable for most electrolytic processes

2. High-Corrosion-Resistant Swirl Anodes

Optimized for high-chlorine and high-acid environments

Extended service life

3. Custom-Functional Swirl Anodes

Coatings optimized for specific processes (e.g., oxygen evolution/chlorine evolution)

V. Different Types of Swirl Electrolytic Titanium Anodes

Based on structural design, they can be classified as follows:

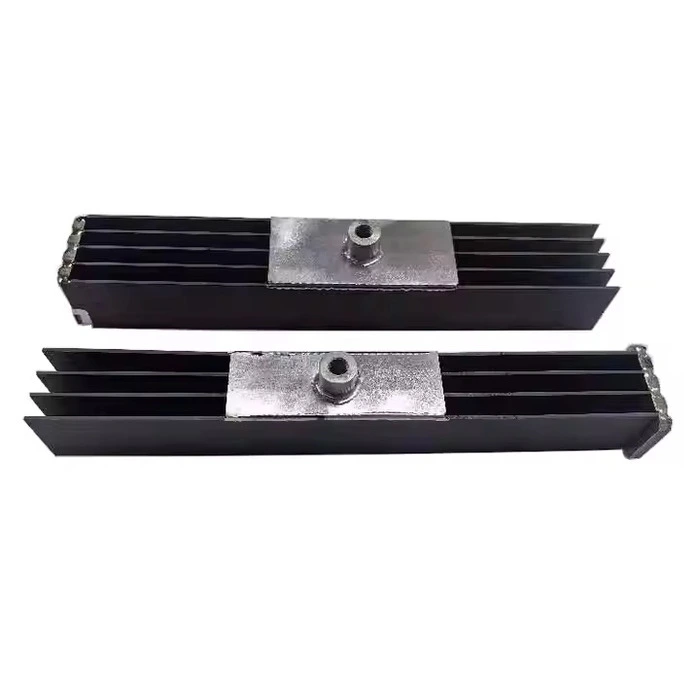

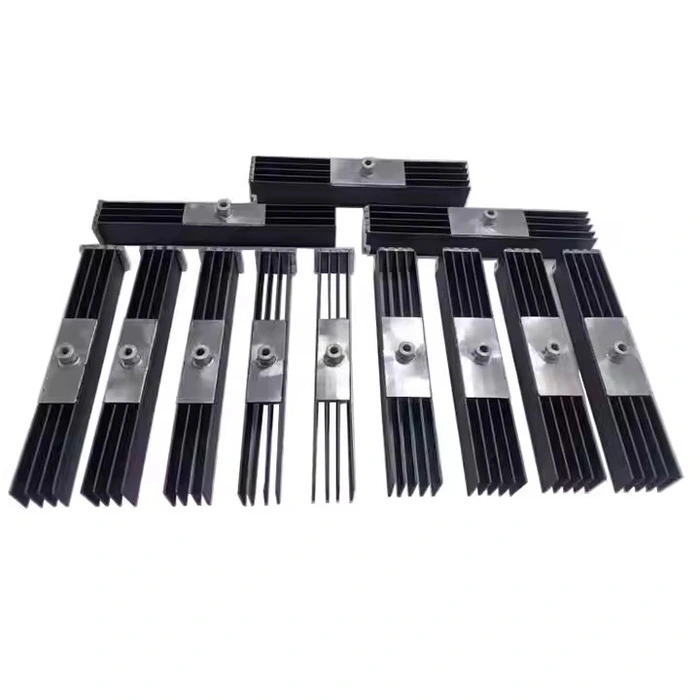

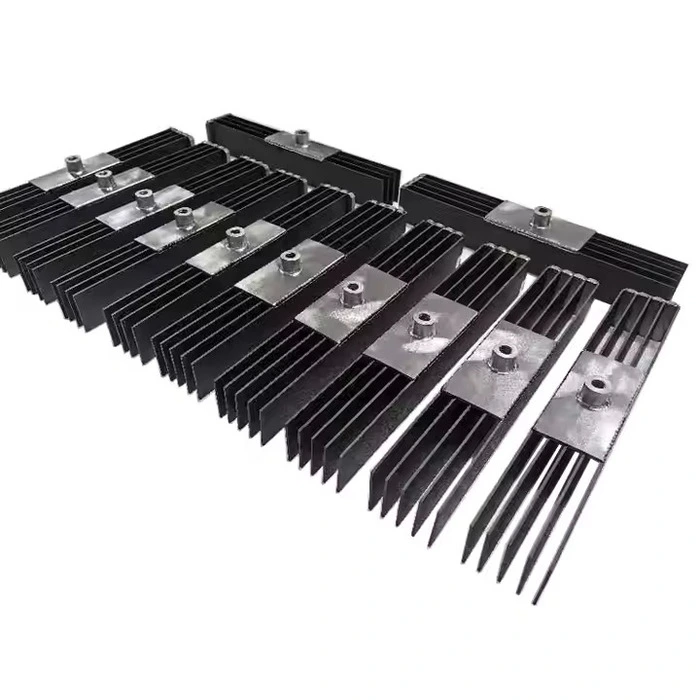

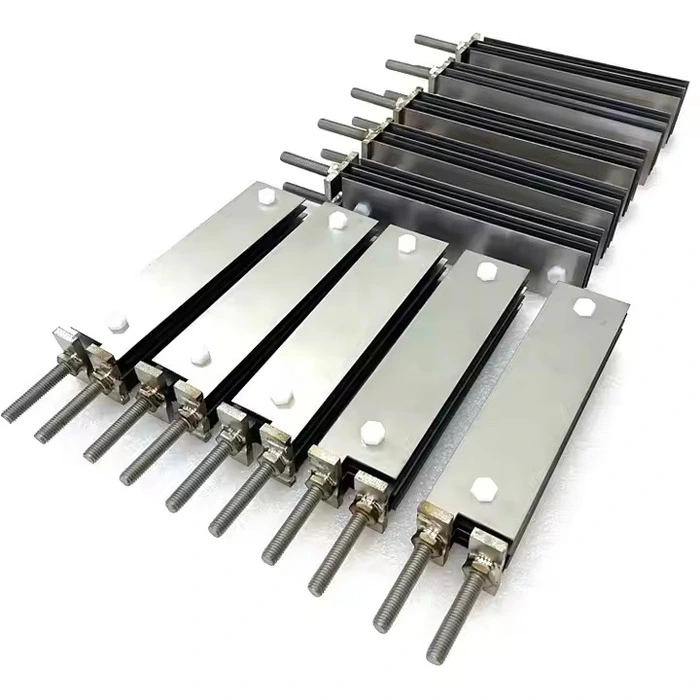

1. Swirl Plate Anodes

Suitable for standard electrolytic cells

Uniform current distribution

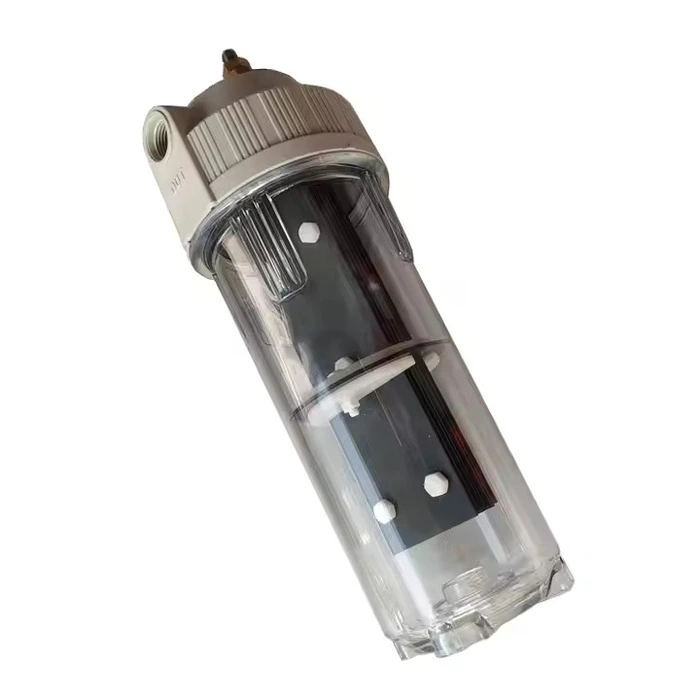

2. Swirl Tube Anodes

Internal fluid rotation

Suitable for continuous-flow reaction systems

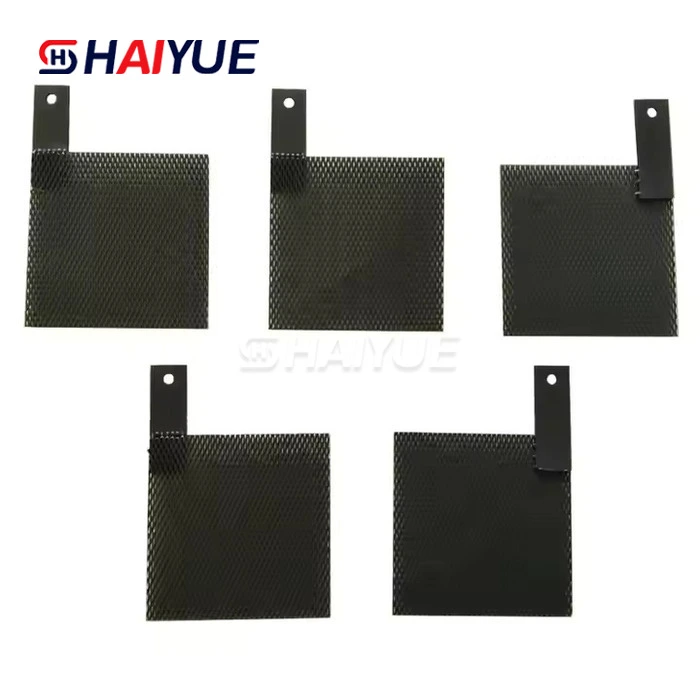

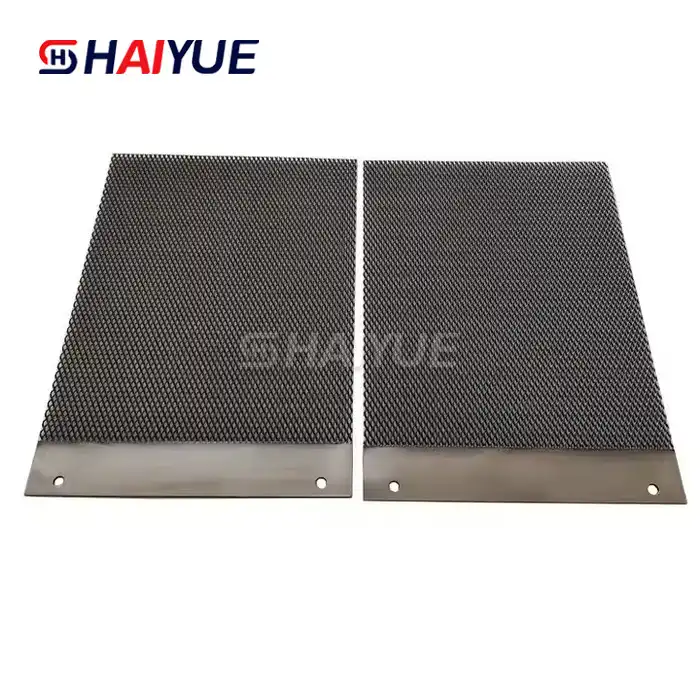

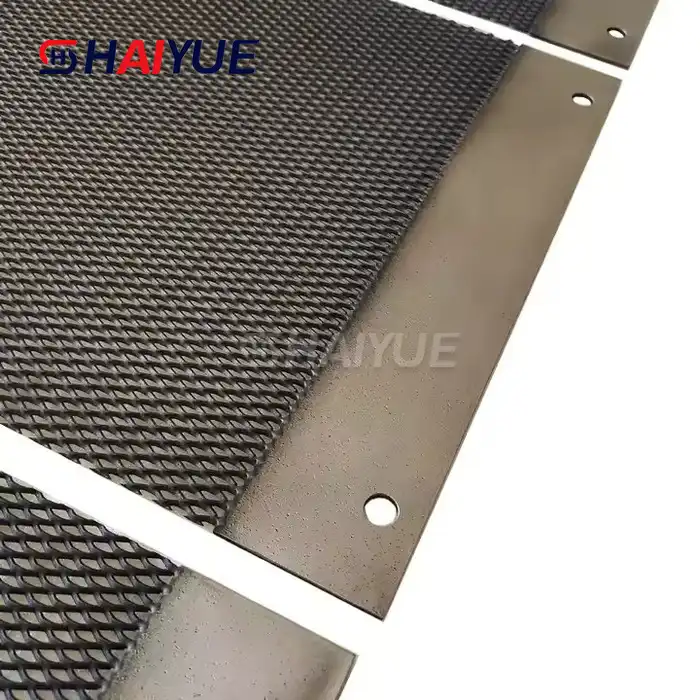

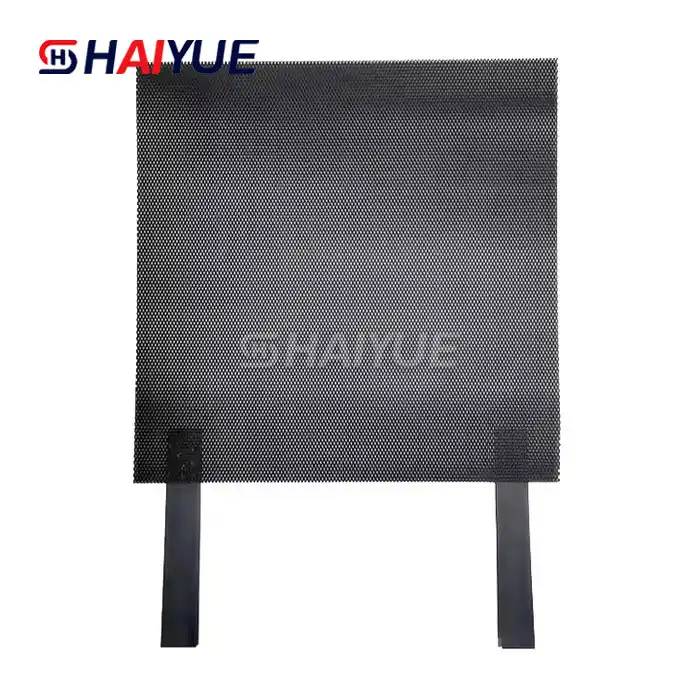

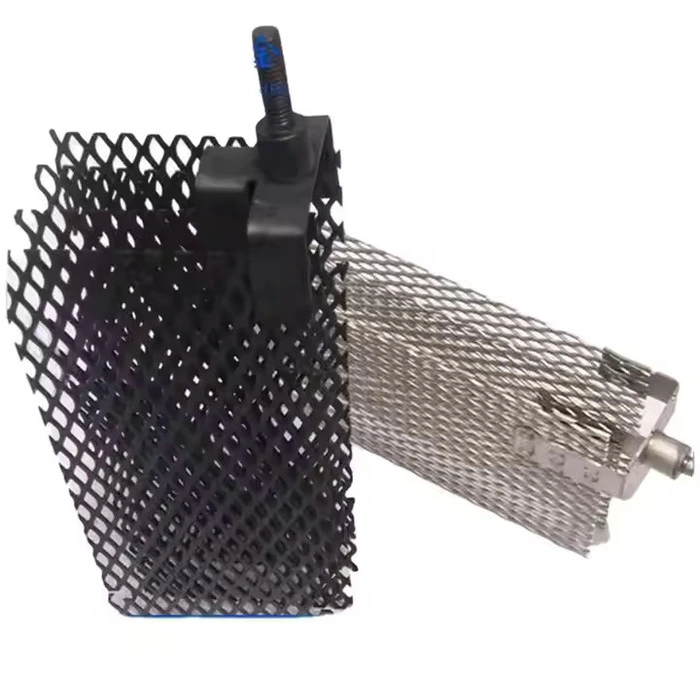

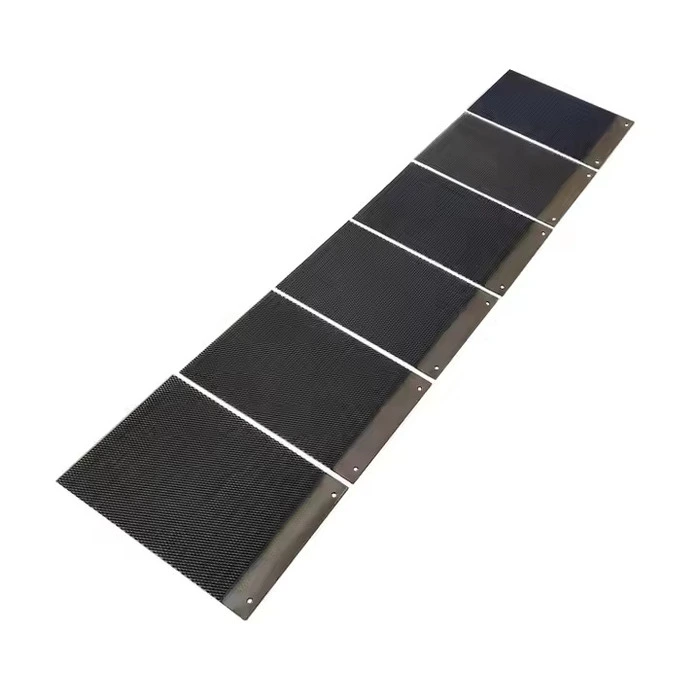

3. Swirl Mesh Anodes

Increased reaction area

Improved electrolytic efficiency

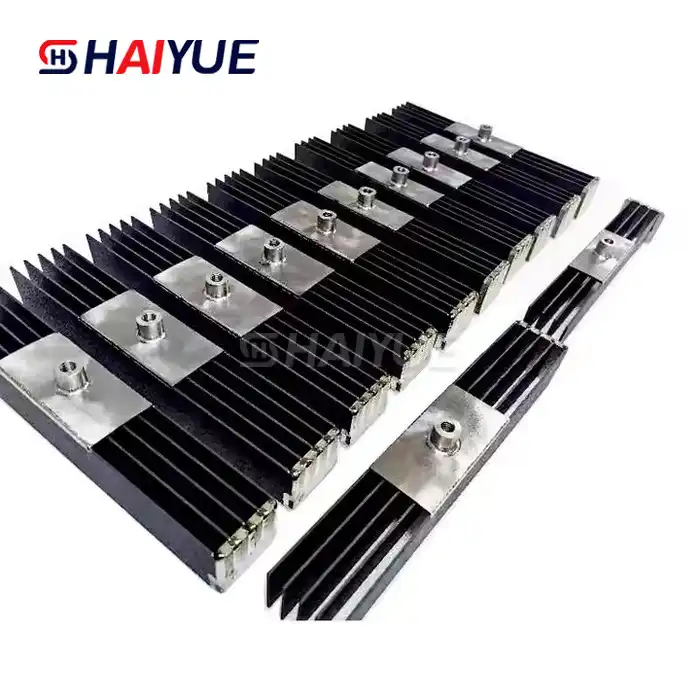

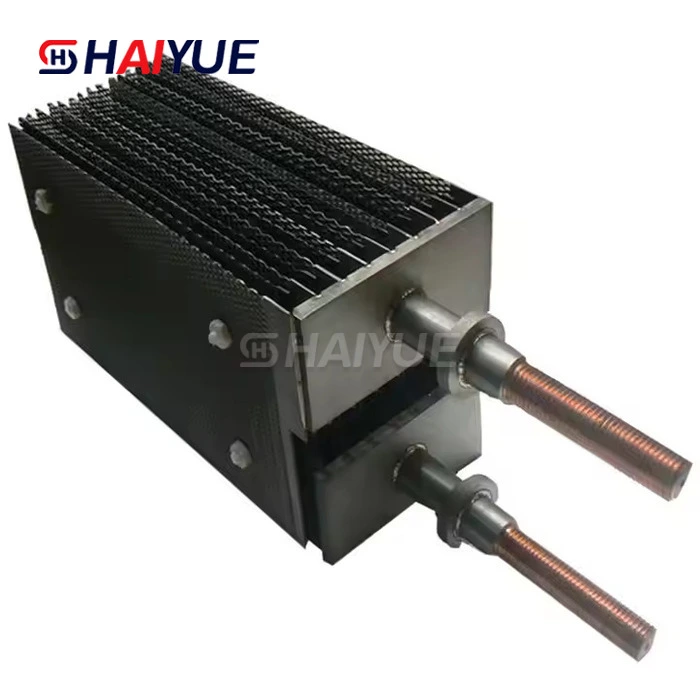

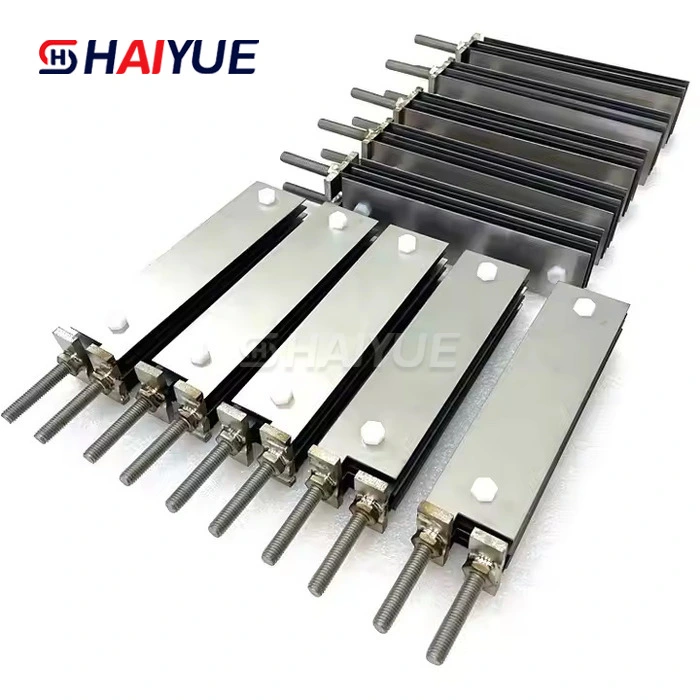

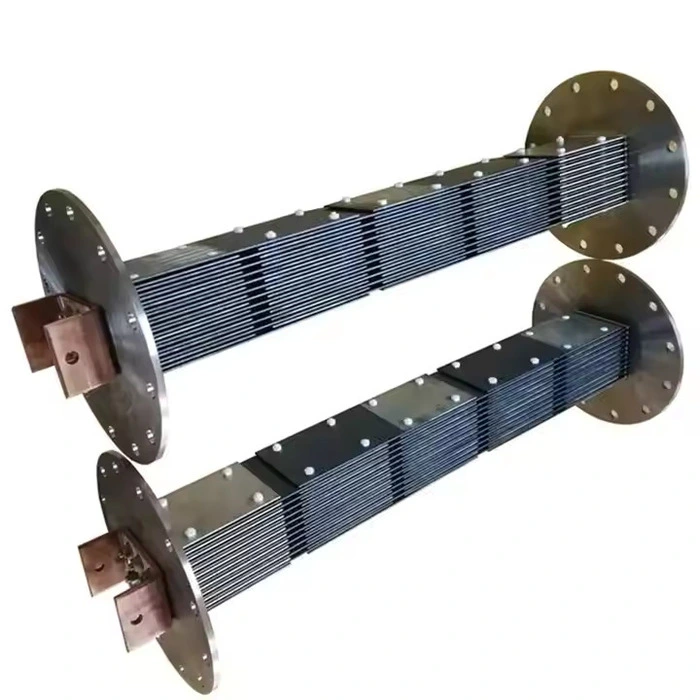

4. Multi-Channel Swirl Anodes

Multi-path flow design

Suitable for high-efficiency industrial systems

VI. Major Applications of Swirl Electrolytic Titanium Anodes

1. Electrolytic Water Treatment

Electrolytic disinfection

Degradation of organic pollutants

2. Chlor-Alkali and Electrolytic Chlorine Production

Improved chlorine evolution efficiency

Reduced energy consumption

3. Electroplating and Metal Recovery

Improved current utilization

Enhanced coating quality

4. Chemical Electrolysis Processes

Oxidation reactions

Electrochemical synthesis

5. New Energy and Environmental Protection Fields

Electrocatalytic Reactions

Resource Recovery Systems

Be used in a wide range of industries.



​​​​

Electrolytic copper foil manufacturing industry

​​​​

Hydrometallurgy industry

​​​​

Sewage treatment industry

​​​​

Cyclone electrolysis industry

​​​​

Etching liquid electrolysis recovery industry

​​​​

Electrolytic sodium hypochlorite industry

VII. How to Select the Right Swirl Electrolytic Titanium Anodes?

In practical applications, it is recommended to focus on the following factors:

1. Type of Electrolytic Process

Oxygen evolution or chlorine evolution reaction

Whether enhanced mass transfer is required

2. Fluid Conditions

Flow rate, viscosity, and circulation method

Whether suitable for a swirl structure

3. Current Density Requirements

High current density requires a highly stable MMO coating

4. Anode Design

Plate, tube, or multi-channel structures

Select based on equipment layout

5. Coating Performance

Low overpotential

High corrosion resistance

6. Service Life and Cost

Prioritize high-durability models for long-term operation

Balance capital investment and operating costs
