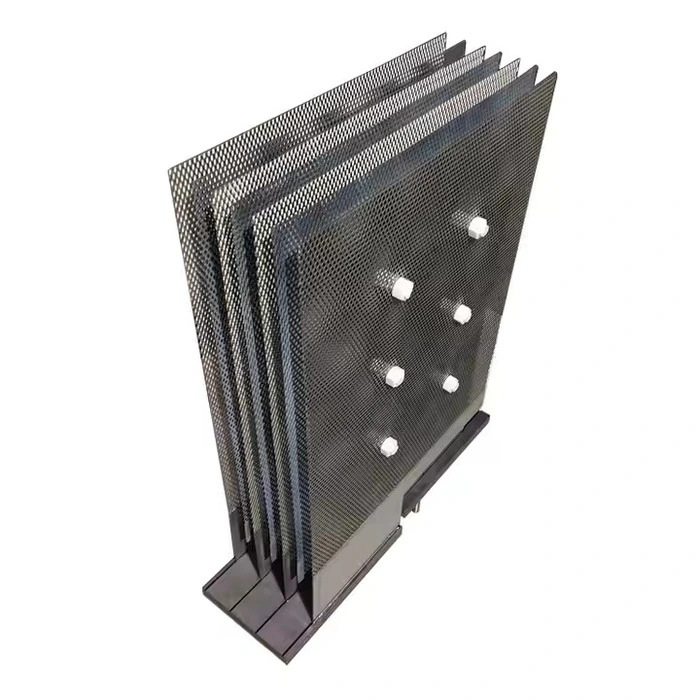

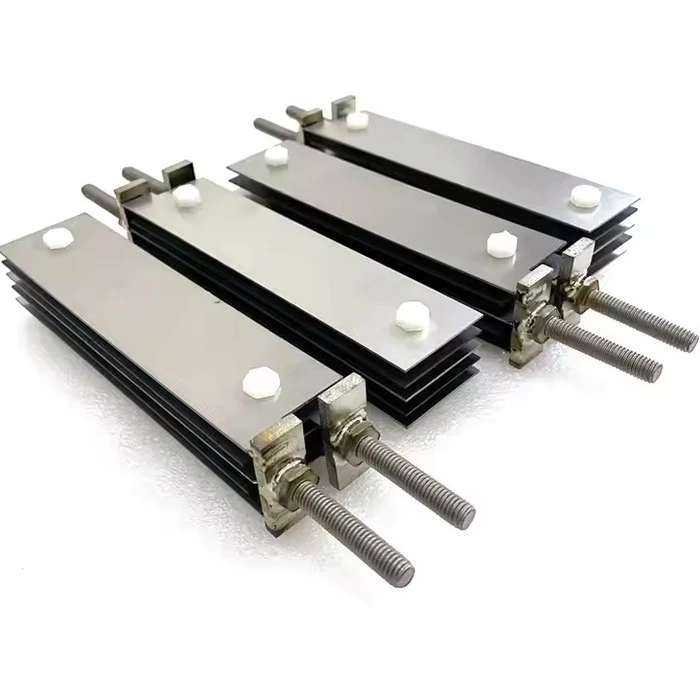

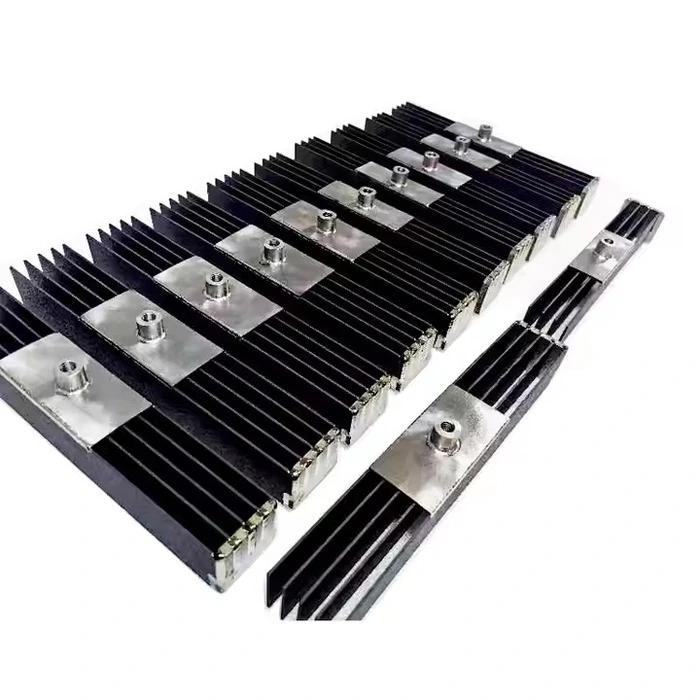

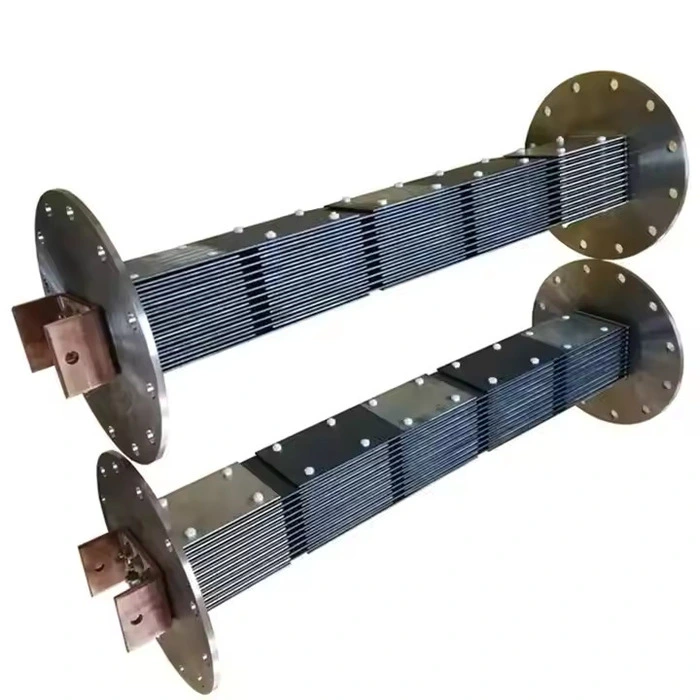

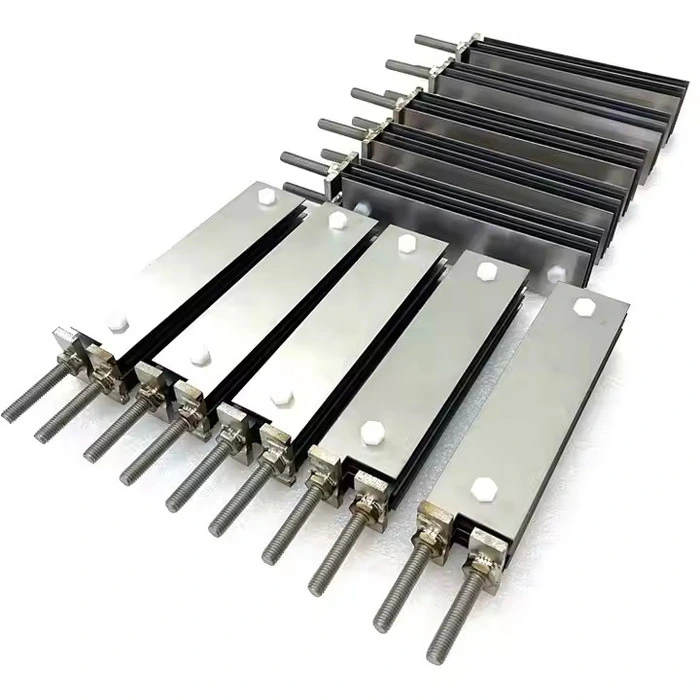

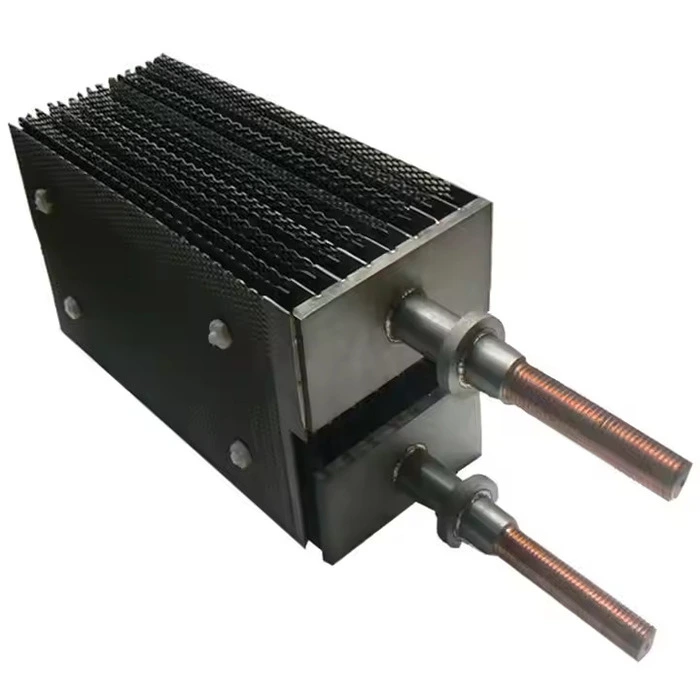

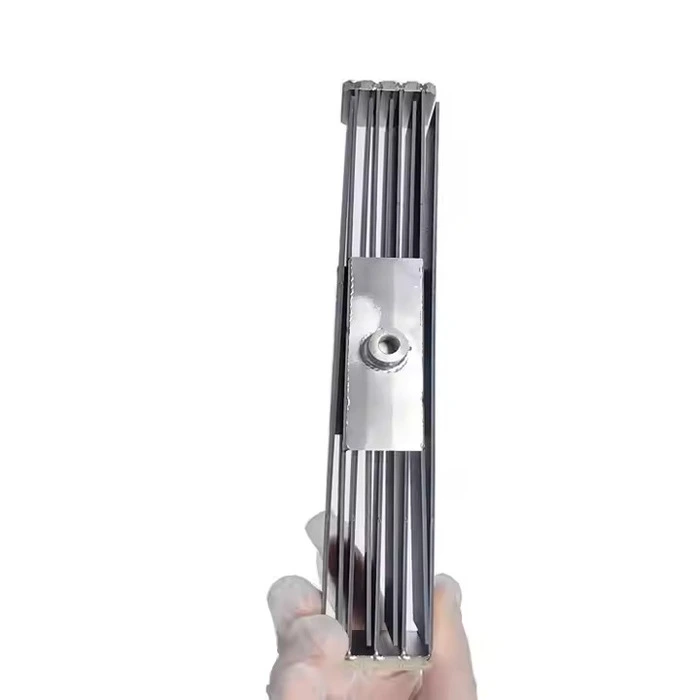

Electrolytic copper foil titanium anode

High-efficiency titanium anode, current density 50–2000 A/m².
Titanium substrate with 5–50 μm MMO, Pt, or PbO₂ coating.
Custom sizes: length 100–3000 mm, width 50–500 mm.
Operates stably in strong acid, temperature ≤95℃.
Long-life anode, ideal for copper foil electrolysis production.

Send Inquiry

Download

Product Description

What Is Electrolytic copper foil titanium anode and How to Choose the Right One for Your Industry?

Electrolytic copper foil titanium anode is a high-performance insoluble anode used in industrial copper foil electrolysis systems, especially for lithium battery and PCB manufacturing. It is manufactured from a titanium substrate coated with mixed metal oxide (MMO), such as Ru–Ir–Ta, which provides excellent electrochemical stability, low energy consumption, and long service life under high-current acidic conditions.

In copper foil electrolysis, the titanium anode plays a critical role in ensuring uniform copper deposition, stable current distribution, and consistent foil thickness. Compared with traditional lead anodes, electrolytic copper foil titanium anodes deliver higher efficiency, cleaner production processes, and significantly improved environmental performance.

Selecting the right electrolytic copper foil titanium anode depends on current density, electrolyte composition, production speed, and cell design. High-end manufacturing lines require precise coating control and optimized anode geometry to ensure stable output quality and long-term operational stability.

Features of Electrolytic copper foil titanium anode

Superior Corrosion Resistance、Ultra-Long Service Life、High Electrocatalytic Activity & Efficiency、Eco-Friendly、Low Maintenance

Superior Resistance to Corrosion Damage

The titanium anode boasts outstanding anti-corrosion performance to withstand harsh acidic, alkaline and saline electrolyte environments for stable long-term operation.

Ultra-Long and Reliable Service Life

With stable coated active layers and robust titanium substrate, this anode achieves remarkably extended service cycles far exceeding conventional metal anode alternatives.

High Electrocatalytic Activity & Efficiency

Its specialized noble metal coating delivers excellent electrocatalytic performance, lowering cell voltage and improving overall electrolysis energy utilization efficiency.

Environmentally Friendly and Energy Saving

No harmful heavy metal dissolution occurs during electrolytic reactions, avoiding secondary pollution and complying with global environmental production standards.

Low Maintenance with Reduced Costs

Structurally stable with minimal electrode degradation in regular service, requiring few downtime checks and negligible spare part replacement costs.

Full Customization Solutions to Meet Your Specific Needs!

Customization Available (Size, Material, Coating, Shape, Lifespan & Installation)

Electrolytic copper foil titanium anode can be fully customized according to industrial requirements:

HY Ti-Ni Import & Export provides full customization for electrolytic copper foil titanium anode based on industrial requirements:

Anode Size: customized according to electrolytic cell design

Base Material: Gr1 / Gr2 high-purity titanium substrate

Coating Type: Ru–Ir–Ta mixed metal oxide system

Coating Thickness: adjustable for efficiency and lifespan

Shape Options: plate, mesh, rod, tubular, or special design

Current Density Range: low, medium, and high load applications

Service Life: 5–10+ years depending on operating conditions

Operating Voltage: optimized for energy efficiency

Connection Type: welded or bolted industrial terminals

OEM/ODM Service: customized production based on drawings

Each electrolytic copper foil titanium anode is engineered for stable performance, high efficiency, and long-term industrial reliability.

Why Choose Titanium Anode from HY Ti-Ni Import & Export?

At Hengyi Ti-Ni Import Export, we specialize in titanium-based electrochemical materials with strong engineering capability in anode system design.

HY Ti-Ni Import & Export, located in Baoji High-tech Development Zone, is a professional manufacturer of electrolytic copper foil titanium anode systems. We specialize in advanced MMO coating technology and precision electrochemical solutions.

Every anode is produced under strict quality control from titanium substrate preparation to final performance testing, ensuring stable operation and long service life.

With strong OEM/ODM capability and global export experience, HY Ti-Ni Import & Export delivers reliable and cost-effective electrolytic copper foil titanium anode solutions for battery and PCB industries worldwide.

Titanium Anode Purchase Guide: A Comprehensive Guide

When selecting an electrolytic copper foil titanium anode, the first step is to evaluate the production process, including electrolyte composition, current density, and operating temperature. These factors directly influence deposition quality and system efficiency.

Next, determine cell size and production capacity to define anode dimensions and layout. Then select appropriate MMO coating type and loading based on required lifespan and energy consumption.

Finally, ensure compatibility with rectifier system and electrolyte circulation design. HY Ti-Ni Import & Export provides engineering support to help customers choose the most suitable electrolytic copper foil titanium anode for stable production, high efficiency, and reduced operational cost.

Purchase Guide

1. What is a Electrolytic copper foil titanium anode?
2. Main Technical Parameters of a Electrolytic copper foil titanium anode.
3. Specifications of a Electrolytic copper foil titanium anode.
4. Current Output of Standard Electrolytic copper foil titanium anode.
5. Applications of a Electrolytic copper foil titanium anode.
6. How to Purchase the Suitable Electrolytic copper foil titanium anode?
7. FAQ
8. Our Factory

Products Introduction

What Is Electrolytic copper foil titanium anode?

Electrolytic copper foil titanium anode is a dimensionally stable anode used in copper foil electrolysis systems. It is coated with MMO catalytic layers that ensure efficient electron transfer and stable electrochemical reactions.

It is widely used in lithium battery copper foil production and PCB copper foil manufacturing due to its high stability, low energy consumption, and long service life.

Main Technical Parameters

Parameter	Typical Range
Base Material	Titanium (Gr1 / Gr2)
Coating Type	Ru–Ir–Ta Mixed Metal Oxide
Current Density	100 – 2000 A/m²
Operating Voltage	1.0 – 5.0 V
Electrolyte Type	Copper sulfate acidic solution
Temperature Range	20°C – 60°C
Design Life	5 – 10+ Years
Electrical Resistance	Low resistance design
Installation Type	Electrolytic cell system

Specifications

Type	Structure	Application
MMO Plate Anode	Flat plate design	Copper foil electrolysis
MMO Mesh Anode	Expanded mesh structure	High-efficiency systems
MMO Rod Anode	Cylindrical design	Uniform deposition systems
MMO Tubular Anode	Hollow structure	Large-scale electrolysis
Custom Anode System	OEM design	Industrial production lines

Cerrent output of Standard

Type	Current Output (mA/m²)	Application Condition
Standard Plate Anode	100 – 300	Standard production
High Efficiency Anode	300 – 800	High-speed electrolysis
Industrial Grade Anode	500 – 1200	Large-scale lines
Precision System Anode	200 – 600	PCB manufacturing
Customized System	Up to 1500+	Heavy-duty production

Applications of MMO Titanium Anode

Be used in a wide range of industries.

Water Treatment Industry

Electroplating Industry

Chlor-Alkali Industry

Marine Engineering

Hydrogen Energy Industry

Mining and Metal Recovery

How to Purchase the Suitable Titanium Anode

To select the correct electrolytic copper foil titanium anode, customers should provide detailed process parameters such as current density, electrolyte composition, cell structure, and production capacity. These factors directly determine system performance and efficiency.

Next, define production scale and cell dimensions to select proper anode size and configuration. Then choose appropriate MMO coating formulation and loading based on lifespan and energy efficiency targets.

HY Ti-Ni Import & Export provides technical consultation to ensure each electrolytic copper foil titanium anode system is optimized for stable performance, high efficiency, and reduced production cost.

FAQ

Q1: What is the main function of electrolytic copper foil titanium anode?
It enables stable and efficient copper deposition in electrolysis systems.

Q2: What is its service life?
Typically 5–10+ years depending on operating conditions.

Q3: Can it replace lead anodes?
Yes, it is an eco-friendly alternative to lead-based anodes.

Q4: Can it be customized?
Yes, size, shape, and coating are fully customizable.

Q5: Does it improve production efficiency?
Yes, it reduces energy consumption and improves foil quality.

Our Factory

Titanium Anode | High Efficiency | Long Service Life | Eco-Friendly

Production site

State-of-the-art manufacturing for titanium anodes, precision coating and quality control.

Choseing titanium substrate	Substrate Cutting	Sandblasting	Pickling
Laser Cutting Configure Precious Metal	Coating	Sintering	Packaging

Workshop

Precision machining and coating workshop for titanium anodes.

Titanium anode coating workshop	Thermal decomposition sintering furnace workshop	Titanium mesh anode production area	Pickling/surface treatment process
Pickling/surface treatment process	Quality inspection workshop	Worker operation photos	Panoramic view of a clean production line

Quality inspection

Rigorous testing for coating adhesion, electrochemical performance, and durability.

Dimension Inspection	Coating Thickness Testing	Coating Adhesion Testing	Microstructure Analysis
Conductivity Testing	Corrosion Resistance Testing	Bond Strength Testing	Final Inspection & Packaging
